Trumeter Analogue Panel Ammeter 500 mA DC, 68 mm x 68 mm, 0.1% Accuracy APM-MICRO-ANO

Free Delivery in India | Lowest Global Shipping Charges

Trumeter Analogue Panel Ammeter 500 mA DC, 68 mm x 68 mm, 0.1% Accuracy APM-MICRO-ANO

Name: Trumeter Analogue Panel Ammeter 500 mA DC, 68 mm x 68 mm, 0.1% Accuracy APM-MICRO-ANO
Brand: Trumeter
SKU: 321229
Price: 202.03 USD
Availability: InStock



Category Analogue Panel Ammeter Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Brand	Trumeter
Model	APM-MICRO-ANO
Depth	53mm
Series	APM
Maximum Operating Temperature	60°C
Current Type	DC
Meter Accuracy	0.1 %
Minimum Operating Temperature	-10°C
Standards/Approvals	cUL, UL, CE
Cutout Height	68mm
Cutout Width	68mm
Maximum Ampere Value	500 mA

Key Features

High accuracy of 0.1% suitable for sensitive current measurements.
Compact panel cutout size 68 mm x 68 mm for easy installation.
Wide operating temperature range from -10°C to 60°C.
Features a clear analogue display with a negative LCD and color-changing figures.
User-configurable with software for scaling, alarms, and outputs.
Two configurable digital or analogue outputs for flexible signal options.
IP65 protection ensures durability in industrial environments.
Compatible with IoT Gateway for remote monitoring via Trumeter Cloud.

Product Description

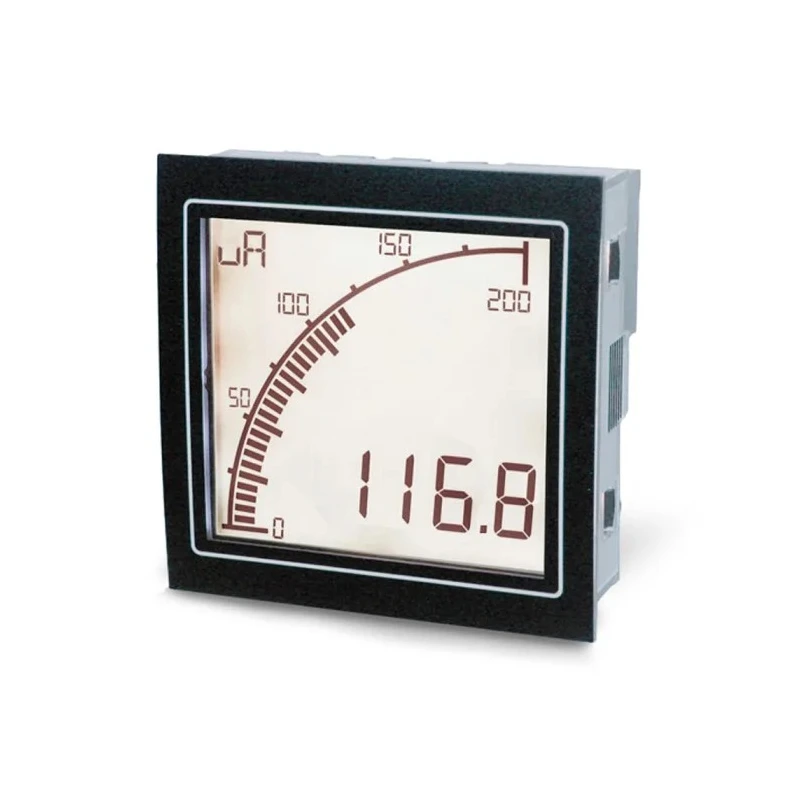

Trumeter APM-MICRO-ANO Analogue Panel Ammeter provides a precise DC current measurement solution with a maximum current rating of 500 mA and an accuracy of 0.1%. This device features a compact 68 mm x 68 mm panel cutout and is designed for applications requiring fine current monitoring and high reliability.

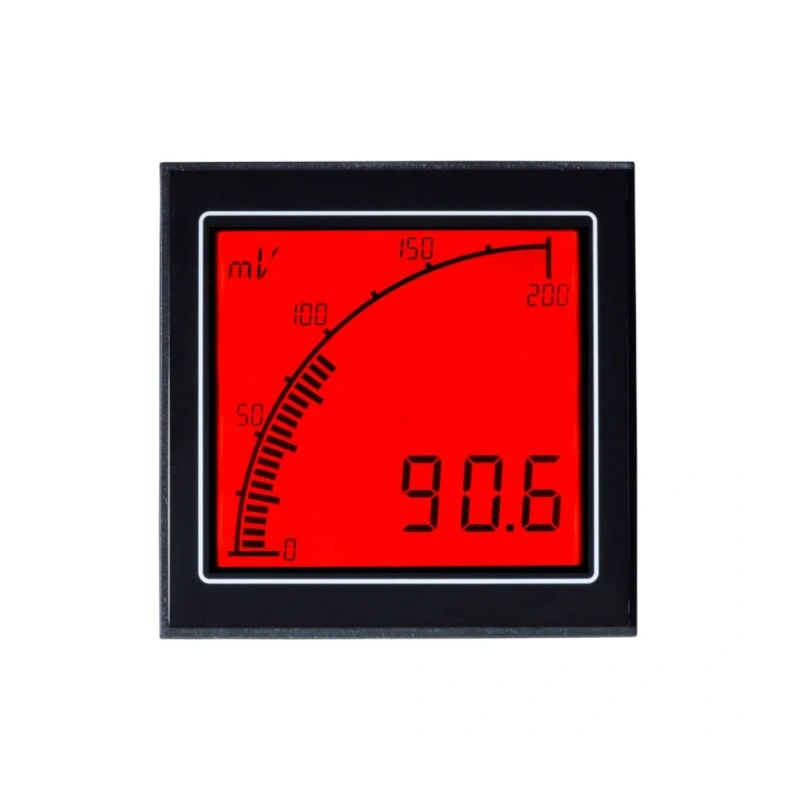

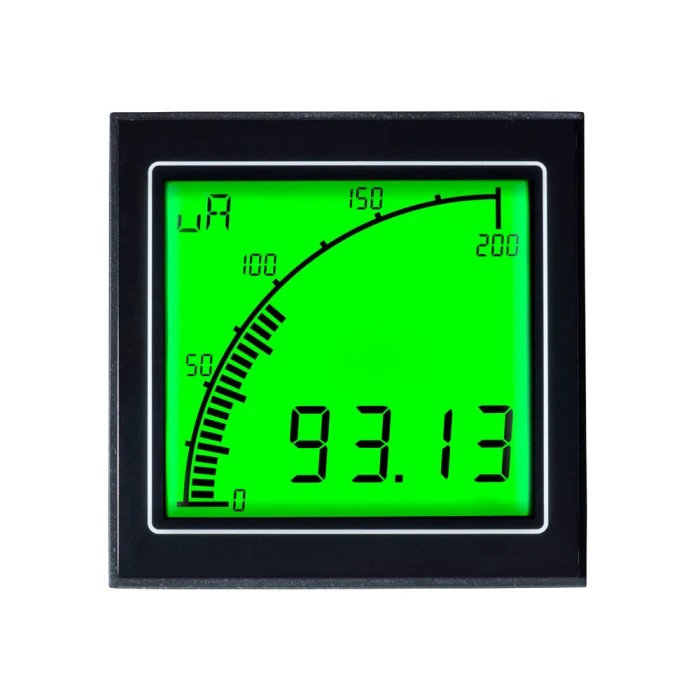

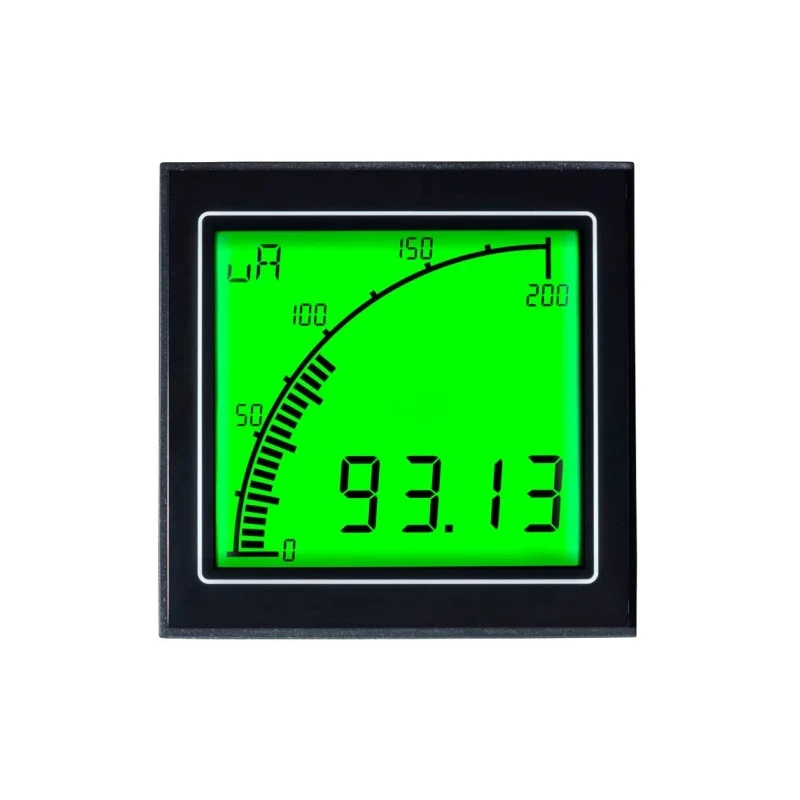

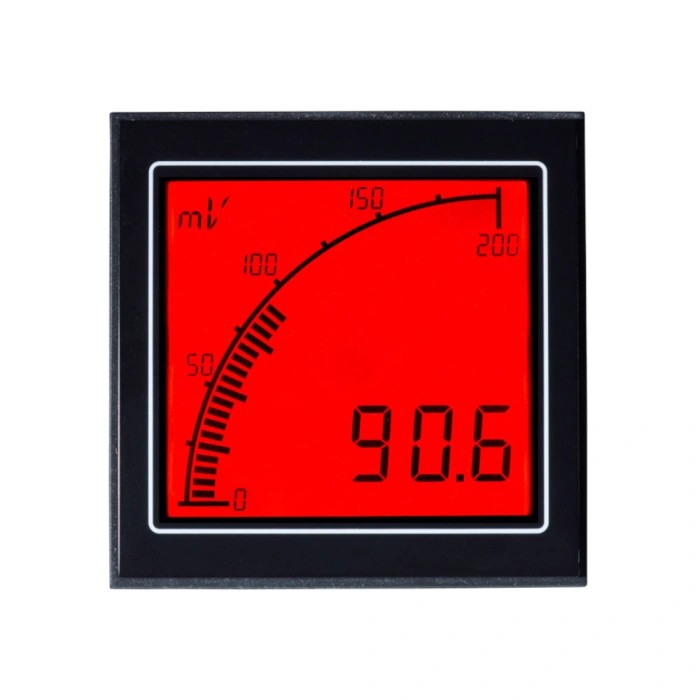

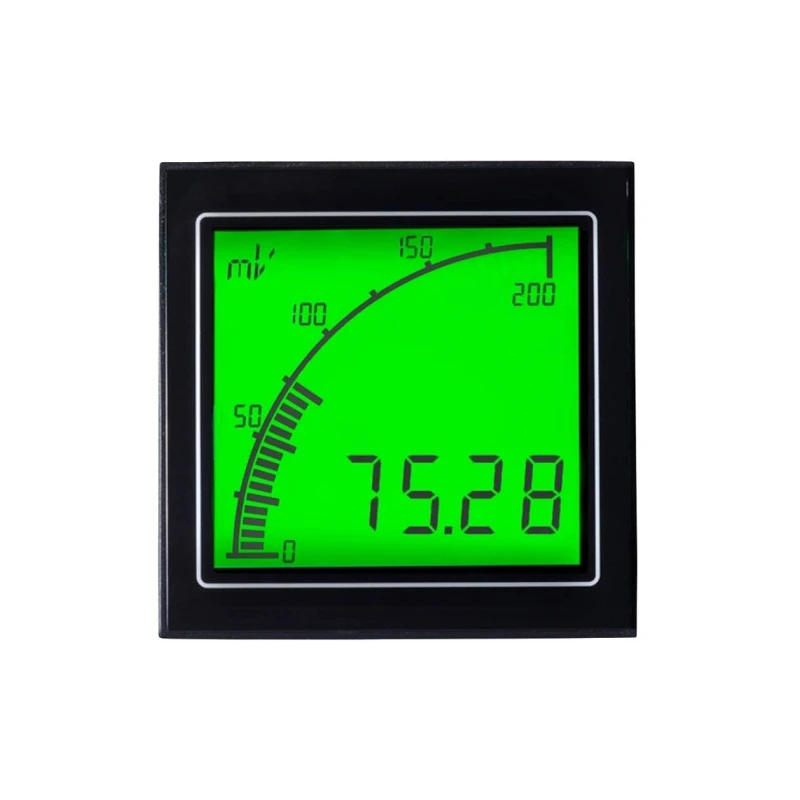

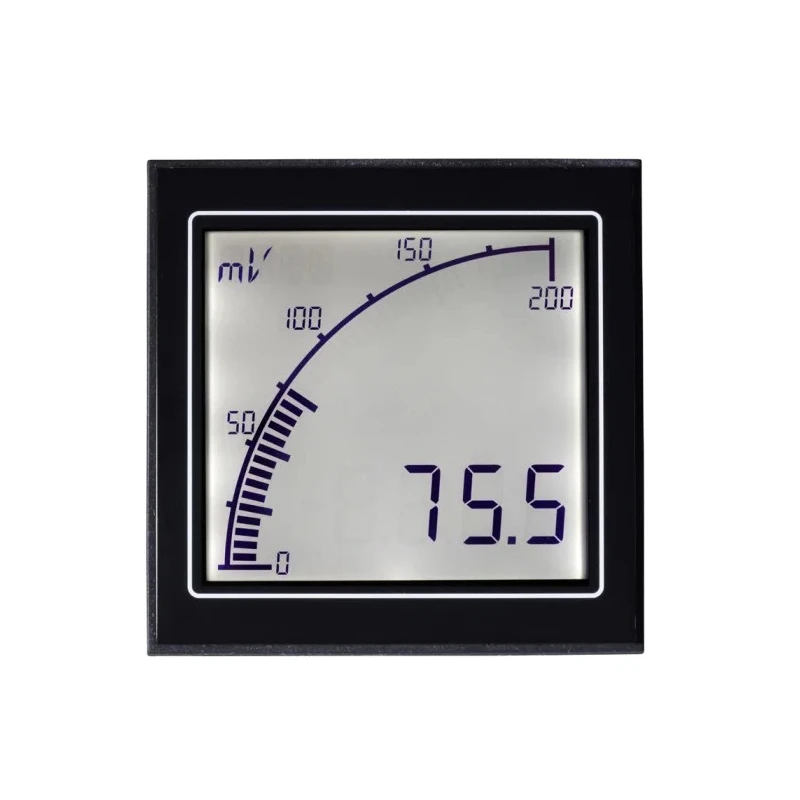

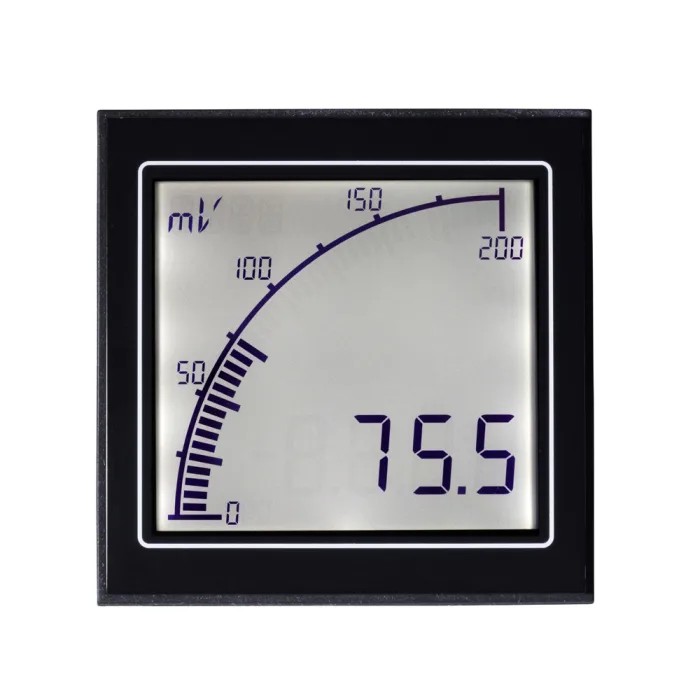

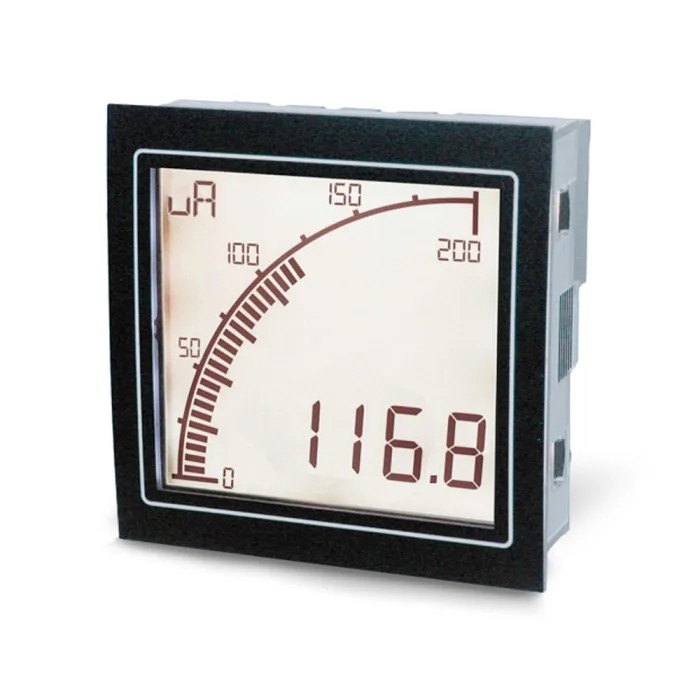

Its negative LCD display with dynamically color-changing figures enhances readability in various lighting conditions, combining the benefits of analogue immediacy and digital precision. The meter supports extensive user configuration through free software, allowing customization of scale, range, alarms, backlight color, and messages to fit specific application needs.

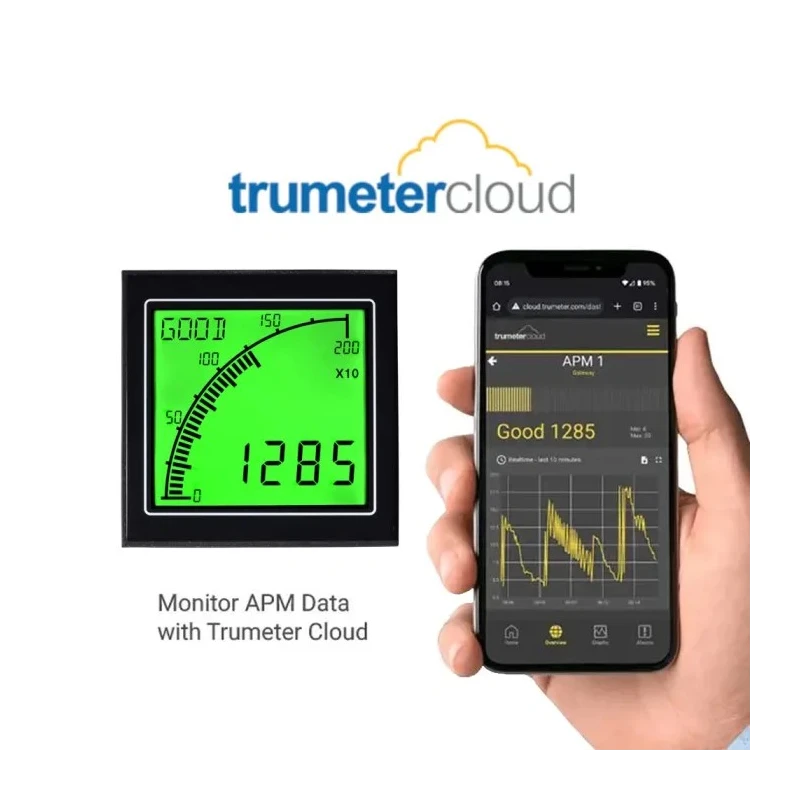

Two outputs can be configured as digital (open collector) or analogue (4-20 mA), providing flexibility to interface with other control or monitoring systems. This ammeter is compatible with Trumeter’s APM IoT Gateway, enabling remote data access and alerts through Trumeter Cloud, useful for industrial, laboratory, and process control environments.

The robust design includes IP65 protection for resistance against dust and water ingress, suitable for demanding industrial settings. High accuracy of 0.1% ensures reliable current measurements. Compact, easy to install 68 mm x 68 mm panel cutout.

Wide temperature operating range from -10°C to +60°C. Negative LCD with color-changing digits enhances readability. Fully configurable using free software for scaling and alarms. Dual outputs configurable as digital or analogue signals.

IP65 protection rating for harsh environment use. Remote monitoring capability via IoT Gateway and cloud integration. Suitable for industrial, laboratory, and automation control applications. Explore more Trumeter ammeters and analogue panel instruments in the Electronics & Electricals category at EnvMart for your automation and process control needs.
