RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Red LED, IP67, 36 V dc 250 V ac 209-9109

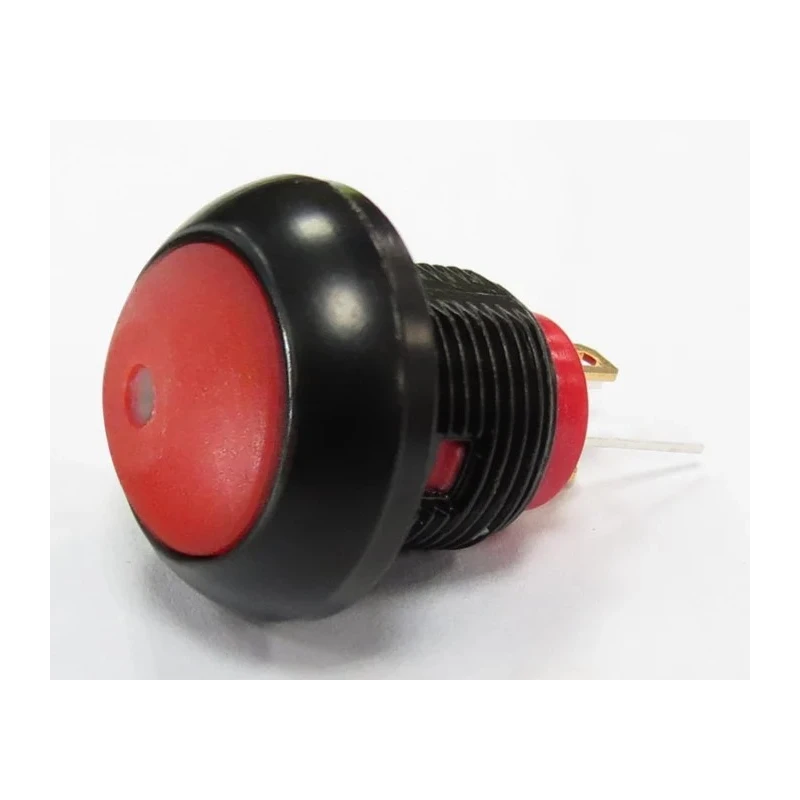

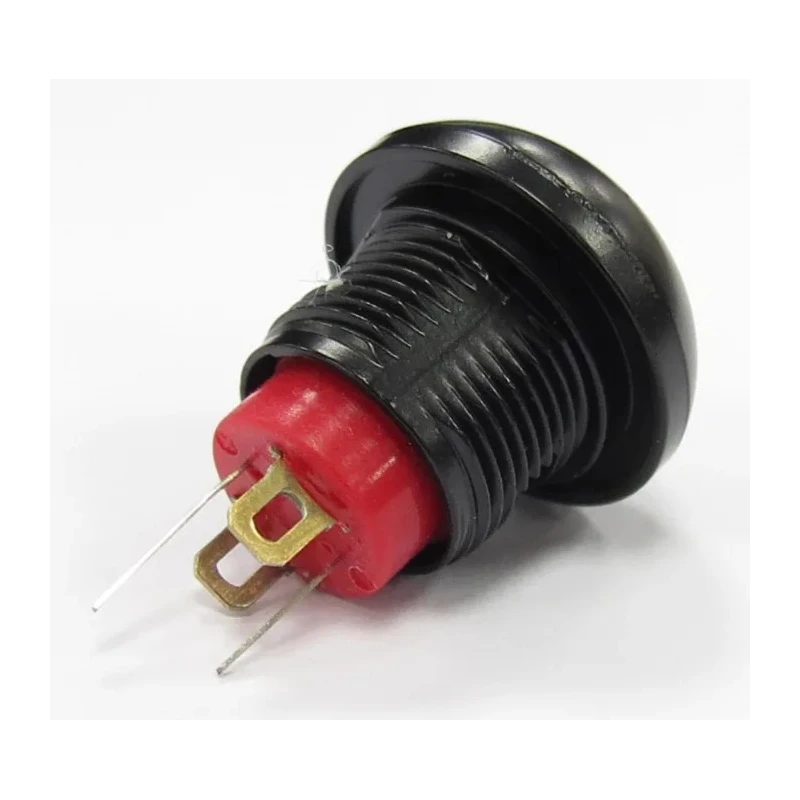

RS PRO 209-9109 Illuminated Push Button Switch is a high-quality, sub-miniature SPST switch designed for momentary operation. It features a momentary off-(on) push button with a flat, dome-style red actuator cap made from durable Polyamide 6/6. This panel-mounted switch requires a 13.6 mm panel cutout and supports panel thickness ranging from 1.5 mm to 4 mm, secured by a thread size of M12 x 0.75.

The switch is illuminated with a red LED, providing clear visual indication, and is rated IP67 to ensure reliable operation in harsh environments by protecting against dust and water ingress. Electrical ratings include a contact AC voltage of 250 V ac, and a contact DC voltage of 36 V dc, with a maximum contact current of 125 mA. It operates efficiently across a wide temperature range from -35°C to 85°C.

Manufactured with gold over silver-plated contacts for superior conductivity and corrosion resistance, this push button switch is optimized for industrial applications such as machine control, process activation, test equipment, telecommunication systems, and handheld consumer appliances. It offers excellent mechanical endurance, boasting up to 1,000,000 operational cycles and withstands soldering up to 350°C for 5 seconds.

The RS PRO push button switch series offers multiple actuator colours and illumination options, but this model specifically features a red actuator with a red LED, enhancing visibility and usability in panel-mounted control systems.

The switch is sealed with an IP67 rating, allowing for use in harsh and outdoor environments. It features a robust polyamide body ensuring long service life under mechanical stress. Designed to fit panels with thicknesses of 1.5 mm to 4 mm, facilitating broad installation compatibility.

The dome-type flat cap design combines ergonomic operation with clear tactile feedback. Compatible with machine controls and industrial automation systems requiring reliable momentary switch actions. Illumination improves indication for operational status in control panels and equipment.

This product is manufactured in China and is provided in new condition. It is ideal for industrial, electrical, telecommunications, and laboratory applications requiring a compact, durable, and visually clear push button switch solution. Explore more RS PRO Push Button Switches and components in EnvMart's Electronics & Electricals category to fit your specific project requirements.
