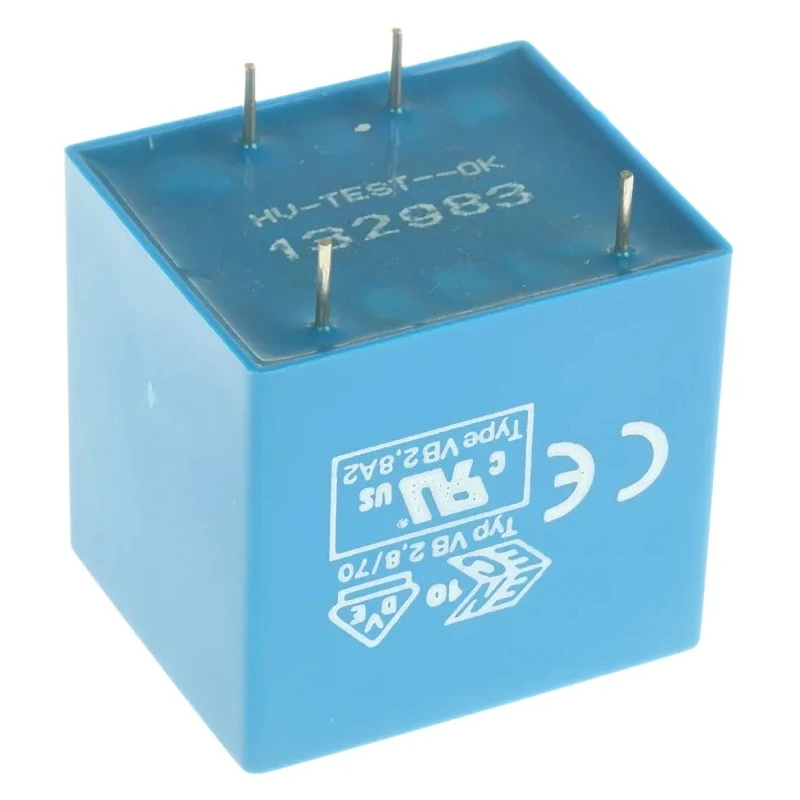

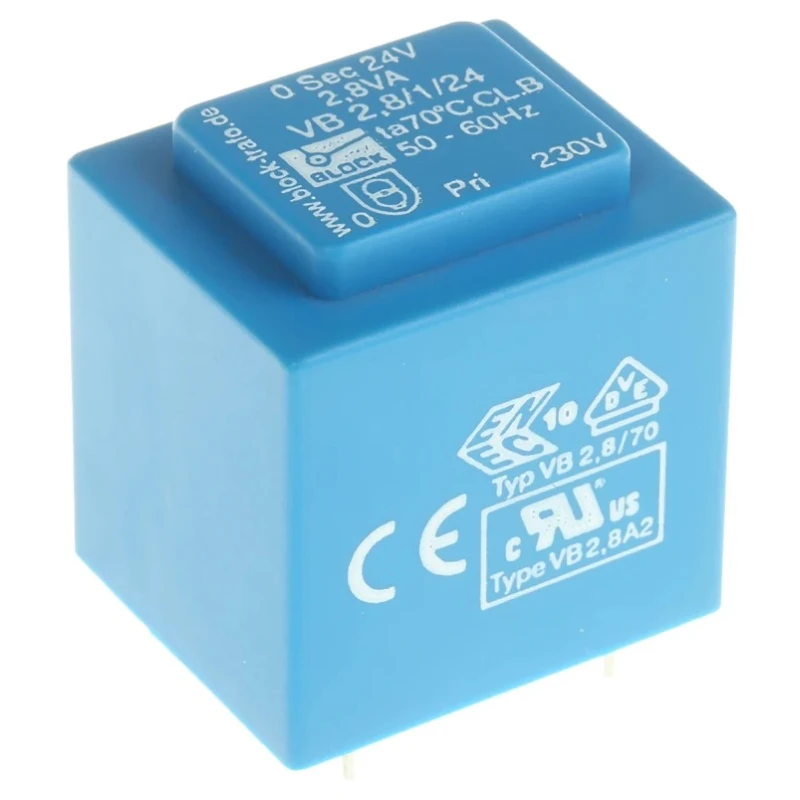

Block PCB Transformer 230 V ac Primary, 24 V ac Secondary, 2.8 VA Power, Pin Mount VB 2,8/1/24

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 230 V ac Primary, 24 V ac Secondary, 2.8 VA Power, Pin Mount VB 2,8/1/24

Name: Block PCB Transformer 230 V ac Primary, 24 V ac Secondary, 2.8 VA Power, Pin Mount VB 2,8/1/24
Brand: Block
SKU: 222524
Price: 18.26 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	57%
Length	32.3mm
Model	VB 2,8/1/24
Depth	34mm
Gross Weight	140g
Width	27.3mm
Mount Type	Pin
Series	VB 2.8/1/24
Maximum Operating Temperature	70°C
Number of outputs	1
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Compact pin mount design suitable for PCB assembly.
Primary voltage rated at 230 V ac for general power supply use.
Single output winding provides 24 V ac voltage.
Constructed with vacuum epoxy resin moulding for high durability and UL94-V0 flammability rating.
Compliant with VDE 0570 Part 2-6, ENEC 10 (VDE), and C-UL-US standards ensuring safety and performance.
Isolation voltage up to 5000 V provides electrical protection.
Operates efficiently at 57% efficiency with low temperature rise.
Meets IEC 61558-2-6 and DIN EN 61558-2-6 standards for transformers.

Product Description

Block VB 2,8/1/24 PCB Transformer is a reliable 2.8 VA power transformer designed for mounting on printed circuit boards (PCB) with a primary input of 230 V ac and a single 24 V ac output winding. This compact transformer utilizes vacuum epoxy resin moulding meeting UL94-V0 flammability standards, ensuring fire resistance and robust mechanical stability.

Engineered for use in electronic and electrical power supply systems, this transformer is inherently short circuit proof, conforming to rigorous safety and quality standards such as VDE 0570 Part 2-6, ENEC 10 (VDE), C-UL-US, DIN EN 61558-2-6, and IEC 61558-2-1. Its isolation voltage rating of 5000 V enhances electrical safety and isolation capabilities during operation. The transformer is optimized to operate efficiently at 57% efficiency, with a low temperature rise within its 70°C maximum operating temperature limit.

With compact dimensions (32.3 mm length, 27.3 mm width, 34 mm depth) and a lightweight build at approximately 140 grams, the Block VB 2,8/1/24 is well suited for compact PCB applications requiring high safety and performance levels.

Compact pin mount design suitable for PCB assembly. Primary voltage of 230 V ac supports standard power input requirements. Single 24 V ac output for various electronic device applications. Vacuum epoxy resin moulded with UL94-V0 fire resistance rating.

Certified to VDE 0570, ENEC 10, C-UL-US, IEC and DIN EN standards. High isolation voltage rating of 5000 V ensures electrical safety. Low inter-winding capacitance reduces electrical noise. Short circuit proof design for enhanced reliability.

Low temperature rise and 57% efficiency under rated load. Compact size and light weight for easy PCB integration.

This transformer is ideal for industrial, electronic, laboratory, and manufacturing applications requiring reliable isolated power supply on PCB. Its short circuit proof design and compliance with international safety standards make it a trusted component in power supply and distribution systems. Explore the full range of PCB Transformers and power supplies at EnvMart to complement your technical requirements.
