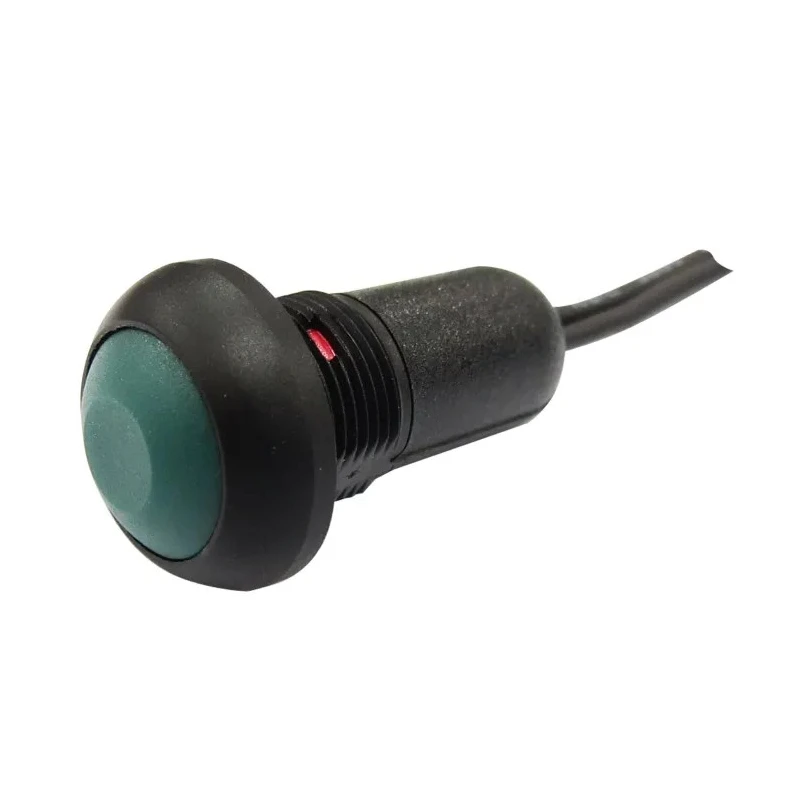

RS PRO Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST Contact, Red LED, IP67, 36 V dc 50 V ac 209-9060

RS PRO 209-9060 Push Button Switch is a high-quality, momentary push button switch designed for panel mounting with a 13.6 mm cutout. It features a SPST (single-pole, single-throw) contact configuration and includes a red LED for illumination, making it easy to visually confirm the switch status in operation. This switch is engineered with an IP67 rating, providing excellent protection against dust and water ingress, which makes it ideal for use in demanding industrial and electrical environments.

The switch operates at a maximum of 36 V dc and 50 V ac, with a contact current rating of 125 mA. It supports a broad temperature range from -35°C to 85°C, ensuring reliable performance in varied environmental conditions. The flat actuator style combined with the durable polyamide 6/6 construction and epoxy seal guarantees robust durability and long mechanical life, rated at one million cycles.

This RS PRO switch offers versatile mounting options including threaded or snap-in panel installation with an M12 x 0.75 thread. The gold over silver contacts reduce contact resistance and enhance electrical reliability. The momentary Off-(MOM) operation mode and precise contact bounce timing of 10 ms ensure effective switching action suitable for control panels, test equipment, telecommunications, networking, and handheld appliance applications.

The push button is part of the PAS6 series by RS PRO, which includes multiple actuator colors and illumination options to cater to various design preferences. With RoHS compliance and adherence to industry standards, this switch upholds rigorous quality and environmental requirements.

The push button offers reliable momentary operation with a flat actuator style. Designed for panel mounting with a 13.6 mm cutout size for easy installation. Features a SPST contact configuration for simple single-circuit control.

Illuminated with a red LED, providing clear visual indication. Rated IP67 for dust and water ingress protection, suitable for harsh environments. Operates safely at 36 V dc and 50 V ac voltage ratings. Designed for use in industrial, electrical automation, and telecommunications applications.

Operates across a wide temperature range from -35°C to 85°C. Switch contact current rating is 125 mA ensuring reliable switching performance. Robust polyamide 6/6 material construction with gold over silver contacts and epoxy seal.

This RS PRO Push Button Switch is an excellent choice for engineers and technicians requiring a reliable, aesthetically versatile, and high-performance switch solution. Explore the RS PRO range at EnvMart for comprehensive electrical components and automation parts.
