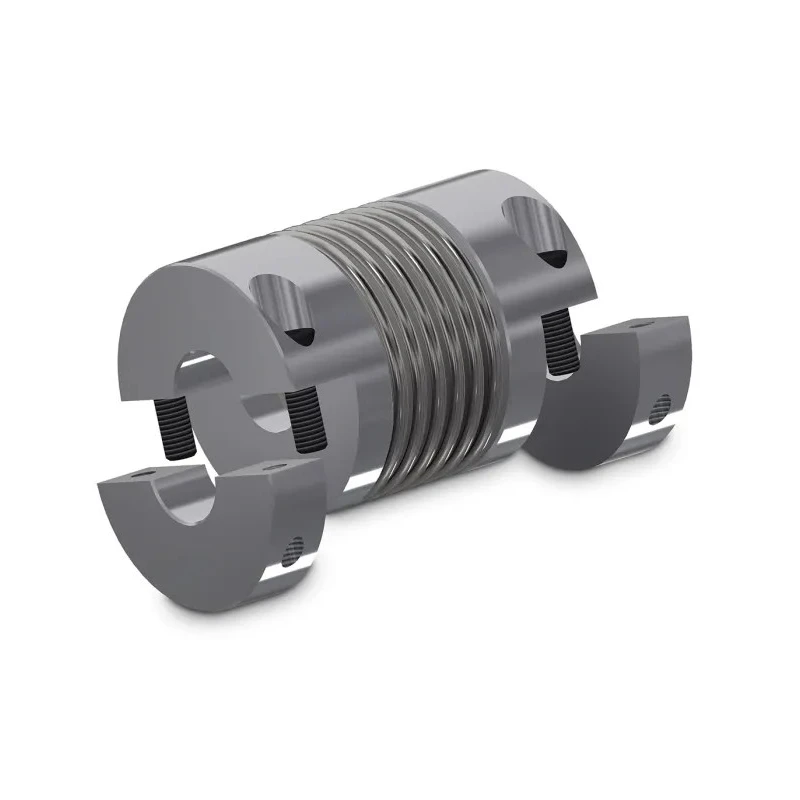

Huco Aluminium Clamp Style Flexible Coupler with Stainless Steel Bellows, 82 mm OD, 25 mm Bore, 91 mm Length 592.82.5252

Huco 592.82.5252 Aluminium Clamp Style Flexible Coupler with Stainless Steel Bellows is engineered for precise mechanical power transmission in demanding industrial applications. It features a clamp-style removable shaft connection that facilitates installation and maintenance while ensuring secure coupling performance.

This flexible coupling is designed with an aluminium hub material coupled with stainless steel bellows that combine to provide corrosion resistance, strength, and resilience under dynamic conditions. The product measures 91 mm in length with an outer diameter of 82 mm and supports a bore size of 25 mm, suitable for standard shaft sizes.

Operating temperature range spans from -30°C to 120°C, enabling suitability across diverse industrial environments including HVAC systems, manufacturing machinery, and fluid power tools. It accommodates high rotational speeds up to 6900 rpm and supports a torque rating of 150 Nm, complemented by a torsional stiffness of 128000 Nm/rad, allowing efficient torque transmission with minimal backlash.

The coupling compensates for shaft misalignment with an angular tolerance of 1.5°, parallel misalignment of 0.2 mm, and axial displacement up to 0.5 mm, enhancing machine longevity by reducing wear and vibration. The clamp style design uses M10 screws for a robust and accessible fastening solution.

Constructed from aluminium alloy with stainless steel bellows for durability and corrosion resistance. Clamp style hub connection enables secure and removable shaft connection. Designed for a bore size of 25 mm with an overall outer diameter of 82 mm and length of 91 mm.

Operates effectively within a temperature range of -30°C to 120°C for versatile industrial environments. Capable of handling a maximum speed of 6900 rpm and torque rating of 150 Nm. Torsional stiffness rated at 128000 Nm/rad providing excellent torque transmission.

Allows misalignment compensation: angular up to 1.5°, parallel up to 0.2 mm, and axial up to 0.5 mm. Includes M10 screw size for secure fastening consistent with clamp style design.

This Huco Flexible Coupler is widely used in industrial machinery, manufacturing, HVAC systems, and fluid power equipment where precise torque transmission and misalignment compensation are critical. Its construction ensures reliability, long service life, and minimal maintenance.
