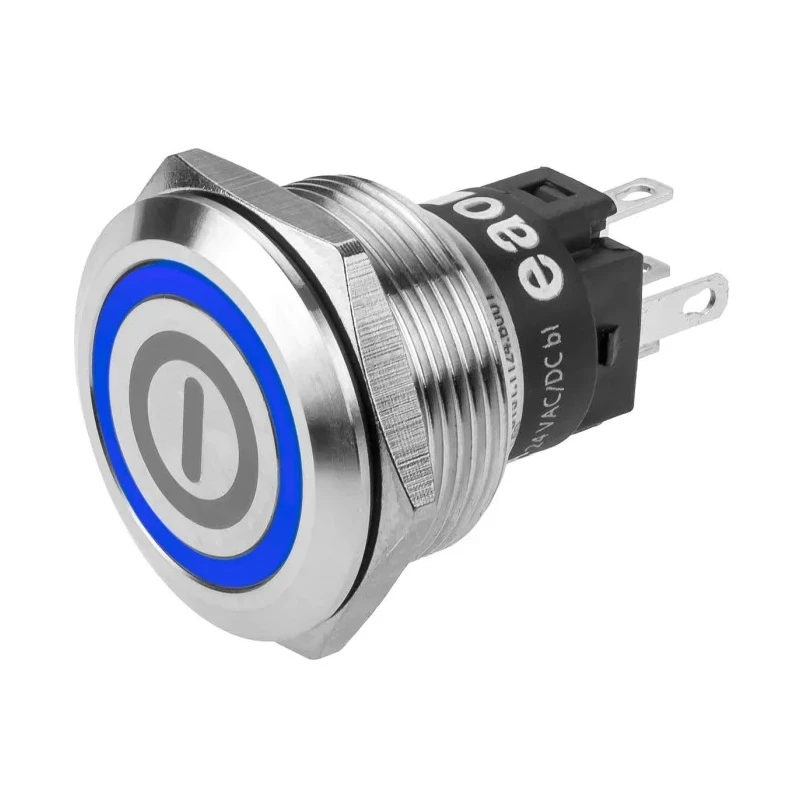

EAO 82 Series Illuminated Momentary Push Button Switch Panel Mount 22.3 mm Cutout SPDT Blue LED IP65 IP67 82-6151.1123.B001



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
Model	82-6151.1123.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Blue
Switch Operation	Momentary
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

Designed for panel mounting with a 22.3 mm cutout size.
Features SPDT contact configuration for versatile control applications.
Blue LED illumination for clear on/off status indication.
IP65 and IP67 rated for exceptional ingress protection.
Operates at 240 V AC/DC with a switch contact current of 3A.
Robust with impact resistant vandal-proof design suitable for public and industrial use.
Gold-plated silver contacts available for low voltage and current applications.
Long service life exceeding 1 million cycles for durability.

Product Description

The EAO 82 Series model 82-6151.1123.B001 is an illuminated momentary push button switch designed for panel mounting with a precise 22.3 mm cutout size. It features a single pole double throw (SPDT) contact configuration that supports reliable electrical switching at 240 V AC/DC with up to 3A switch contact current.

This push button switch includes a blue LED illumination that clearly indicates on-off status, and comes with an actuator designed in a round style to enhance tactile feedback and ease of use. Engineered for durability, it holds an ingress protection rating of IP65 and IP67, offering resistance against water and dust, enabling usage even in harsh environmental conditions.

Its construction incorporates vandal-resistant impact-resistant materials and gold-plated silver contacts for low voltage and current scenarios. This makes the switch particularly suited for exposed public areas such as ticketing and vending machines, industrial machinery and factory equipment, elevators and people movers, building access control, security systems, as well as audio, video, and medical equipment. Corrosion and acid-resistant versions can also be requested for specialized food industry applications.

The switch is built for an operating temperature range from -30°C up to 70°C, ensuring versatility across various applications. With a compact length of 35.5 mm, it is optimized for panel integration while providing excellent tactile feedback and a long service life of more than one million operation cycles.

Designed for panel mounting with a 22.3 mm cutout size. SPDT contact configuration for flexible switching applications. Blue LED illumination improves visual status indication. IP65 and IP67 ingress protection for dust and water resistance.

Impact-resistant vandal-proof design enhances durability. Gold-plated silver contacts enable reliable low voltage switching. Long service life exceeding one million cycles. Suitable for industrial, public, lifting, building management, medical and food industry uses.
