RS Pro Analogue Panel Ammeter 50 A DC, 57 mm x 44 mm, ±1.5 % Accuracy High Torque Pivot and Jewel Moving Coil and 186-2533

Free Delivery in India | Lowest Global Shipping Charges

RS Pro Analogue Panel Ammeter 50 A DC, 57 mm x 44 mm, ±1.5 % Accuracy High Torque Pivot and Jewel Moving Coil and 186-2533

Name: RS Pro Analogue Panel Ammeter 50 A DC, 57 mm x 44 mm, ±1.5 % Accuracy High Torque Pivot and Jewel Moving Coil and 186-2533
Brand: RS PRO
SKU: 319713
Price: 35.27 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	25% to 80%
Brand	RS Pro
Model	186-2533
Depth	45.7mm
Maximum Operating Temperature	60°C
Current Type	DC
Pointer	Knife-edge type
Meter Accuracy	±1.5 %
Minimum Operating Temperature	0°C
Cutout Height	57mm
Cutout Width	44mm
Maximum Measurement	600 V
Moving Element	High Torque Pivot and Jewel Moving Coil and Moving Iron
Maximum Ampere Value	50 A
ISO 20653	2006-08
VDE 0110-1	2008-01 approved
Standards/ApprovalsEN 61010-1, ISO 20653	2006-08, DIN 43701, IS 1248, IEC 51, BS EN 61326, 93/68/EEC, IS 2419, DIN 46200/46282, VDE/VDI 3540, 2014/35/EC, IEC 529, IEC 1010, UL3111-1, IS: 9000 Part 5, ANSI C39.1, EN 60664-1, UL 94 V-O, IS9249, 2014/30/EC, VDE 0110-1:2008-01, DIN 43802, DIN 4

Key Features

High torque pivot and jewel moving coil and moving iron construction ensures reliable measurement.
Compact 57 mm by 44 mm cutout size suitable for panel mounting.
Operating temperature range from 0°C to 60°C ensures durable performance.
Knife-edge type pointer provides clear and accurate readings.
Maximum measurement voltage is 600 V, supporting versatile control systems.

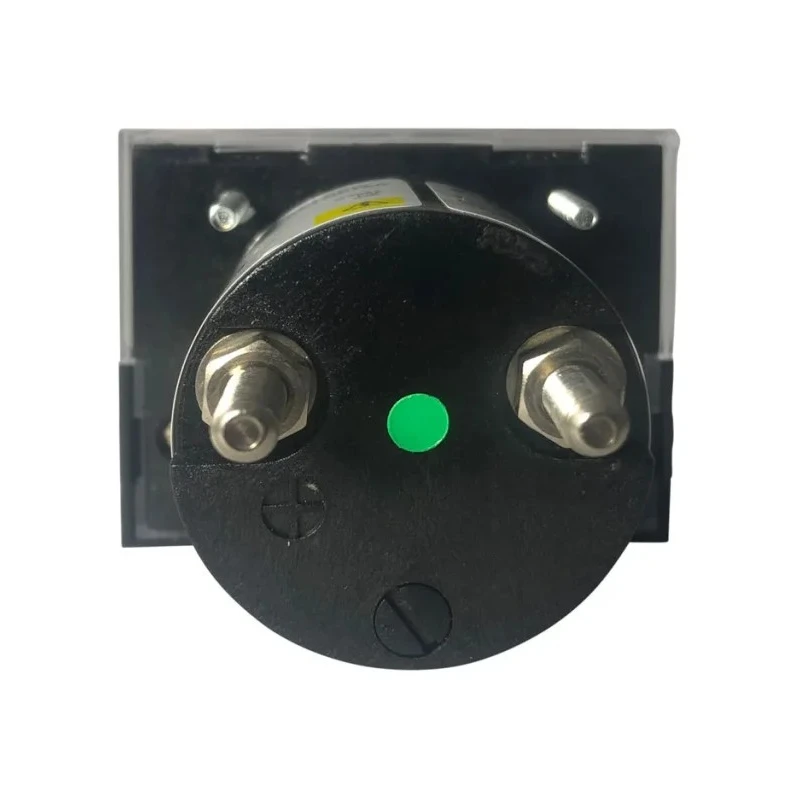

Features rear zero adjuster for calibration convenience.
Polycarbonate cover protects the meter while allowing easy visibility.
Relative humidity operating range from 25% to 80% for various environments.

Product Description

RS Pro 186-2533 analogue panel ammeter is designed for precise DC current measurement applications up to 50 A, featuring a high torque pivot and jewel moving coil combined with moving iron for enhanced sensitivity and reliability. It has a compact 57 mm height by 44 mm width cutout dimension and a 45.7 mm depth, making it ideal for panel installations in industrial and automation systems.

The meter provides ±1.5% accuracy and operates reliably between 0°C and 60°C with a relative humidity tolerance of 25% to 80%. The knife-edge type pointer delivers clear and unambiguous readings, supported by a rear zero adjuster for easy calibration. Its polycarbonate enclosure offers durability and protection against environmental factors.

This RS Pro ammeter meets various international standards, including EN 61010-1, IEC 1010, ISO 20653, VDE 0110-1, UL 94 V-0, CE certification, and EMC directives 2014/30/EC, ensuring safety and compliance for industrial use. The meter has a maximum voltage measurement limit of 600 V, suitable for marine, switchgear, motor monitoring, utility power monitoring, distribution systems, embedded generation, energy management, and building management applications.

Its high-quality construction and reliable performance make it an excellent choice for control panels and process control in electrical automation environments. High torque pivot and jewel moving coil and moving iron assembly.

Compact 57 mm x 44 mm cutout size for panel mounting. ±1.5% meter accuracy and knife-edge pointer for precise readings. Operating temperature 0°C to 60°C with humidity tolerance. Rear zero adjuster included for calibration.

Polycarbonate cover for robust protection. Compliance with multiple international safety and quality standards. Maximum voltage measurement of 600 V suitable for diverse industrial applications.

Choose RS Pro for dependable Analogue Panel Ammeter solutions in industrial, marine, HVAC, manufacturing, and utility power sectors. Browse our extensive range of reliable electrical measurement instruments for your automation and control needs at EnvMart.
