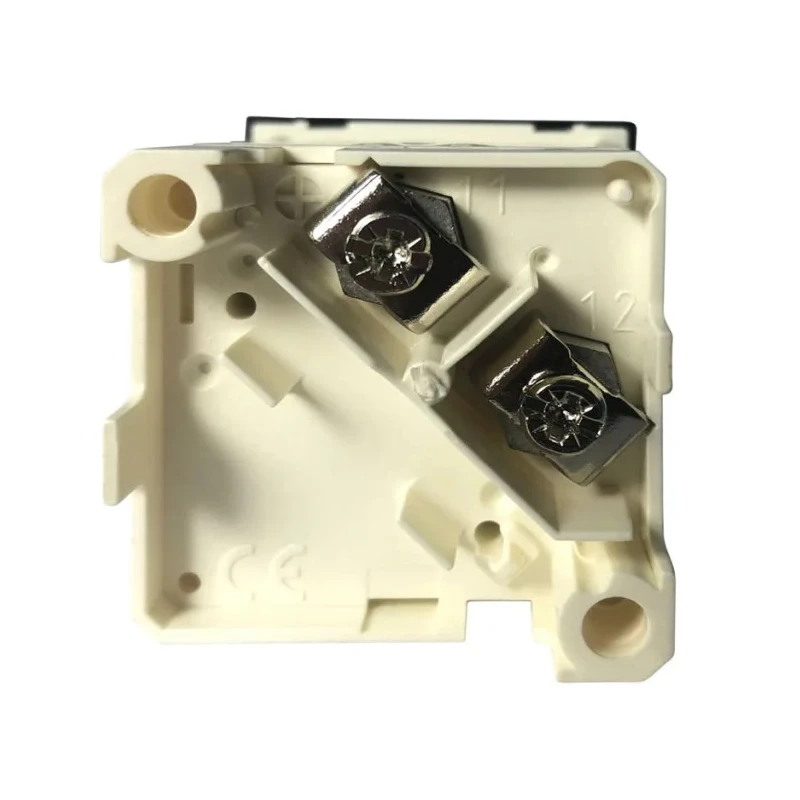

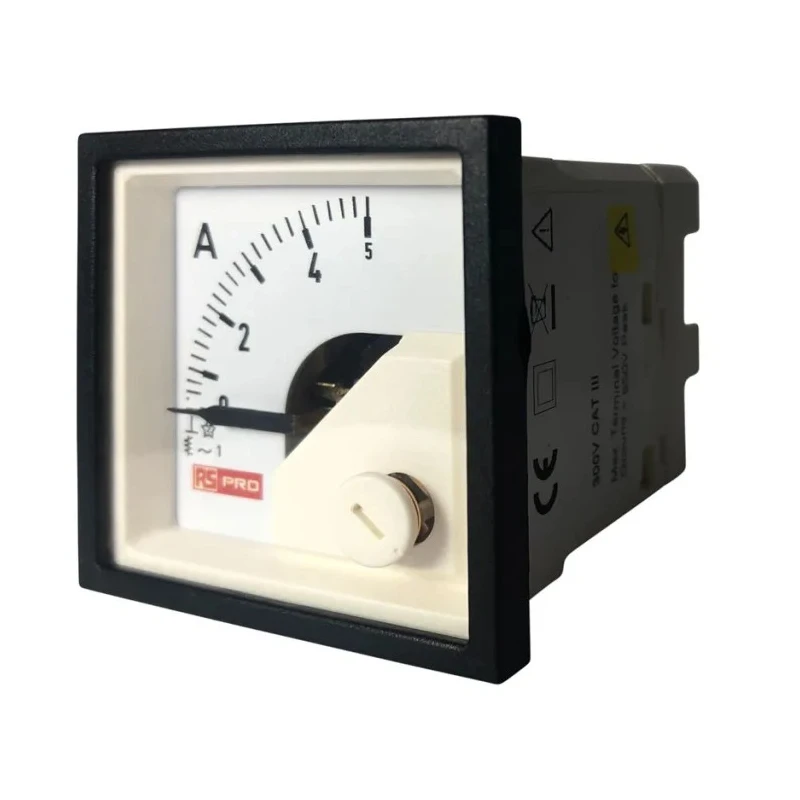

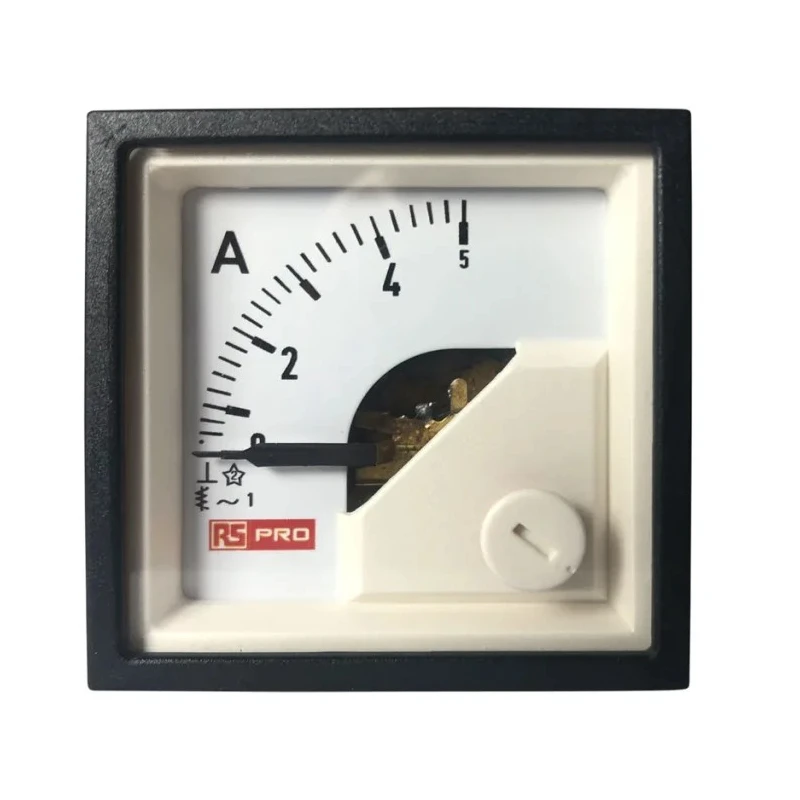

RS PRO Analogue Panel Ammeter 5 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2412

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 5 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2412

Name: RS PRO Analogue Panel Ammeter 5 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2412
Brand: RS PRO
SKU: 319712
Price: 22.65 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2412
Depth	54mm
Series	RS PRO
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration of 11 milliseconds
Overload	2 times nominal current (continuous)
Cutout Height	45mm
Cutout Width	45mm
Maximum Measurement	600 V dc, 1000 V ac
Moving Element	Moving Iron
Maximum Ampere Value	5 A
AC Ammeter nominal range	100mA to 100A direct connection
Pointer deflection	0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
Standards/Approvals 2014/30/EC (EMC )), DIN 43807, IEC 61010, ISO 20653	2006-08, 93/68/EEC (CE )), UL 94 V-0, DIN 43802, 2014/35/EC (low voltage )), DIN 43718, EN 61010, IEC51/DINEN60051, VDE 0100-410:2018-10, IEC 529, DIN 43701, DIN 46200/46282, VDE / VDI 3540, DIN IEC 61554

Key Features

Equipped with moving iron movement for true RMS current indication.
Calibrated scale down to 10% with overload options X2, X3, X5, or X6.
Operating temperature range from -10°C to 65°C ensures wide applicability.
Robust molded polycarbonate case suitable for control and switchgear panels.
Shock resistance rated at 15g with a pulse duration of 11 milliseconds.
Suitable for AC currents in frequency range 15Hz to 400Hz.
Overload capability of 2 times nominal current continuous.
Relative humidity tolerance less than 75% annual average, non-condensing.

Product Description

RS PRO 186-2412 Analogue Panel Ammeter 5 A AC features a precise 1% accuracy moving iron mechanism for reliable current measurement in industrial, laboratory, HVAC, and electrical control applications. Its compact 45 mm by 45 mm cutout size allows easy panel mounting in machinery consoles and control switchgear.

This ammeter supports measurement of true RMS AC currents within 0 to 5A range over frequencies from 15Hz to 400Hz, with overload scales available to monitor higher transient currents such as motor inrush. The molded polycarbonate casing provides durability and electrical insulation, making it suitable for harsh industrial environments.

Operating reliably within temperatures of -10°C to 65°C and relative humidity below 75%, this meter includes a knife-edge type pointer offering smooth deflection from 0 to 90 degrees. It withstands shock forces up to 15g over short pulses. The built-in overload capability of double the nominal current ensures safe operation under transient load conditions.

Stringent compliance to standards such as IEC 61010, ISO 20653:2006-08, and UL 94 V-0 underpins its quality and safety credentials. Its IP52 rating protects against limited dust ingress and dripping water, ideal for demanding industrial automation and process control systems.

This Analogue Panel Ammeter is designed for electrical current monitoring in industrial, testing laboratory, HVAC systems, and manufacturing process control. It provides reliable and visually intuitive measurement for ensuring electrical system performance and diagnostics.

Equipped with moving iron movement for true RMS AC current measurement. Calibrated scales with options for overload multipliers for inrush current monitoring. Compact square 45 mm x 45 mm cutout size for standard DIN panel integration.

Durable molded polycarbonate housing with IP52 protection. Wide operating temperature range and excellent shock resistance for industrial use. Complies with key global electrical safety and EMC standards. Designed for use in industrial automation, electrical control, HVAC, and laboratory test equipment.
