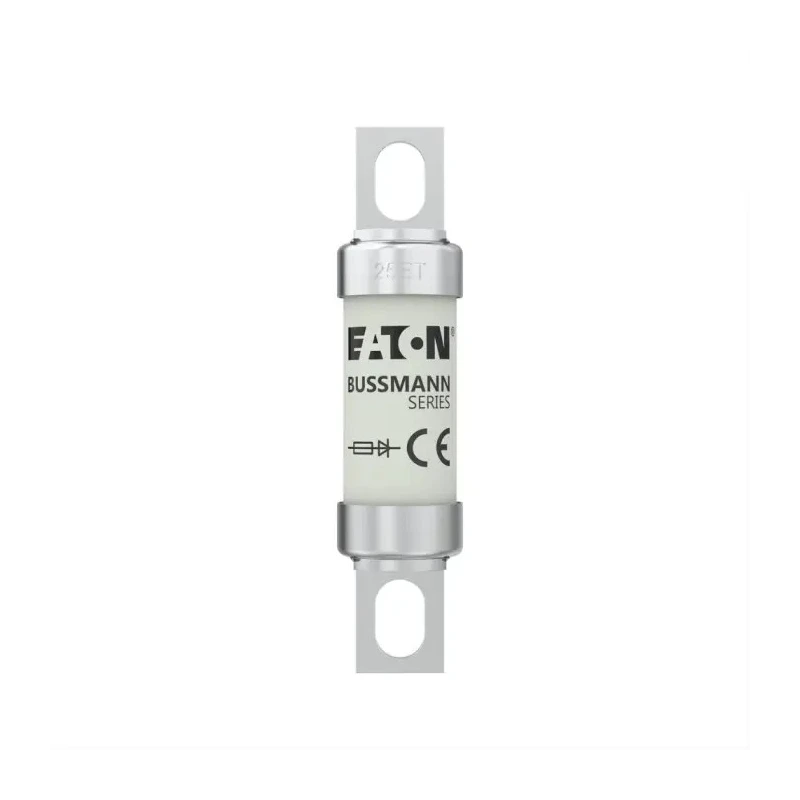

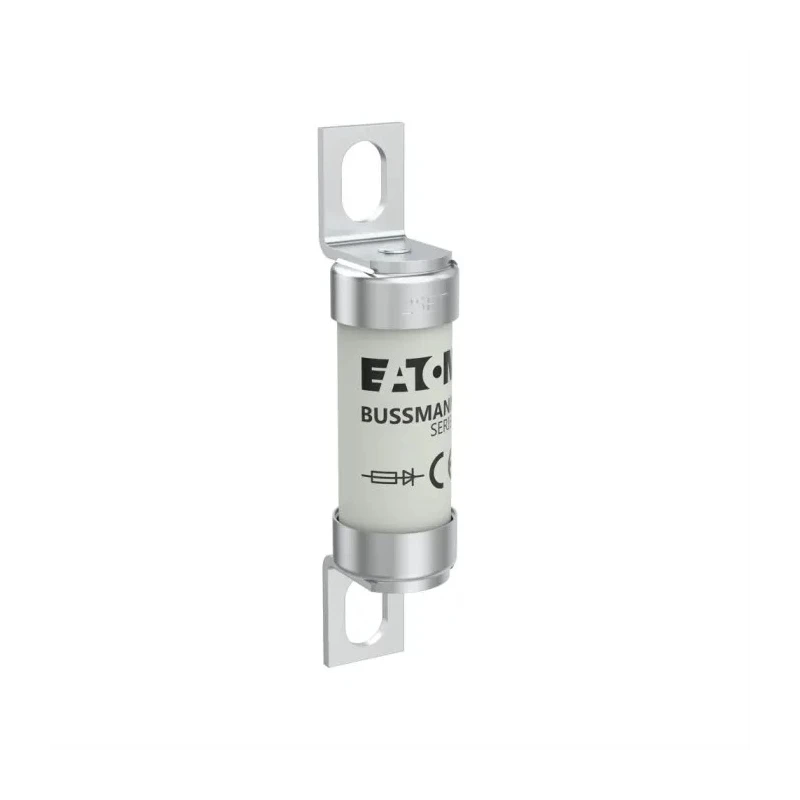

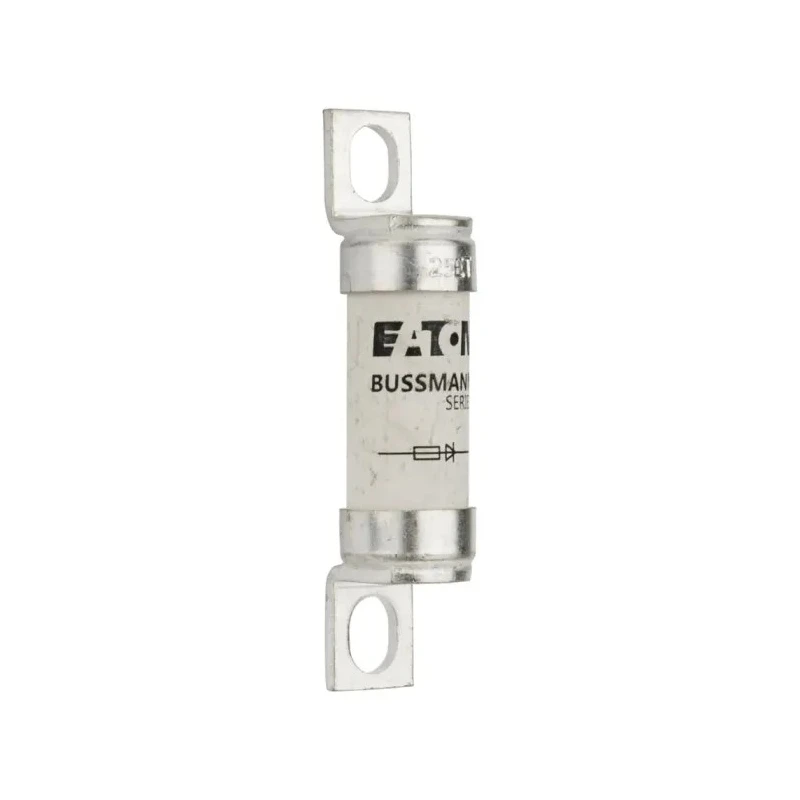

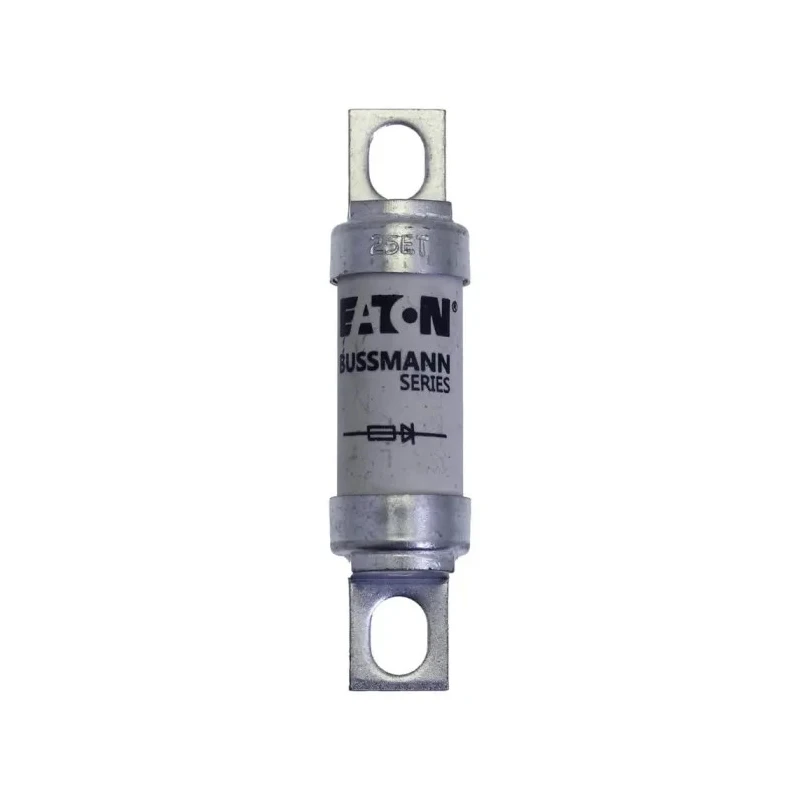

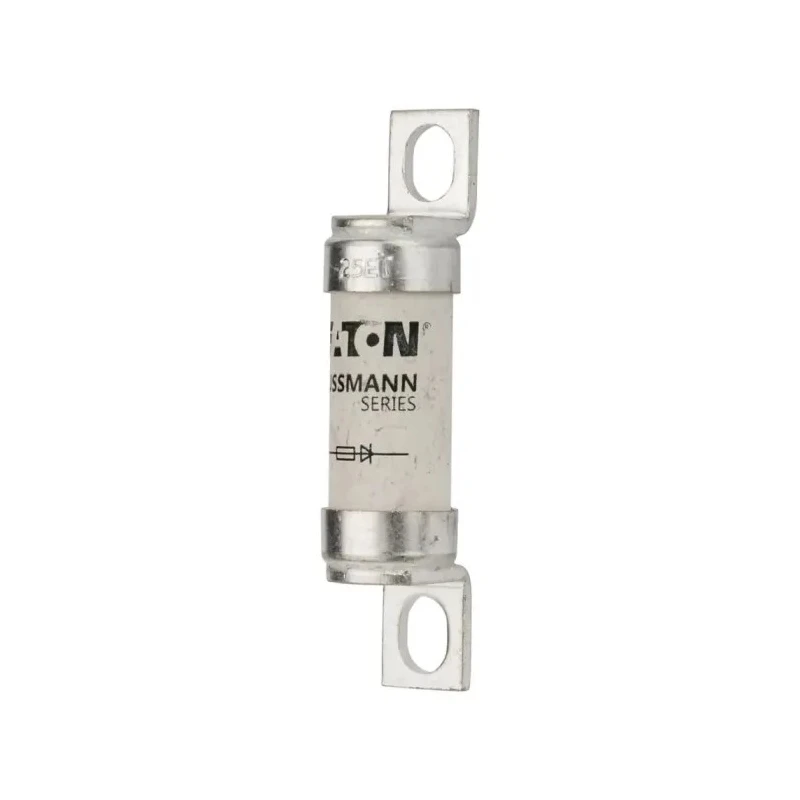

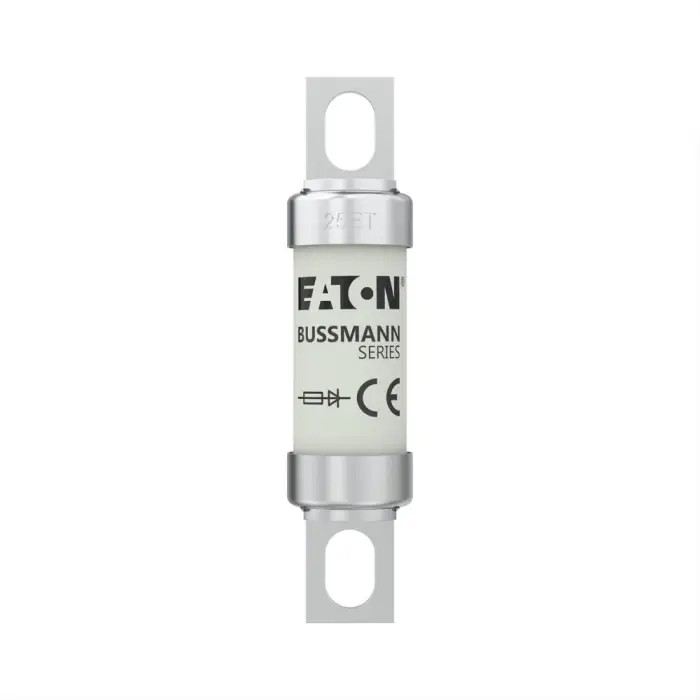

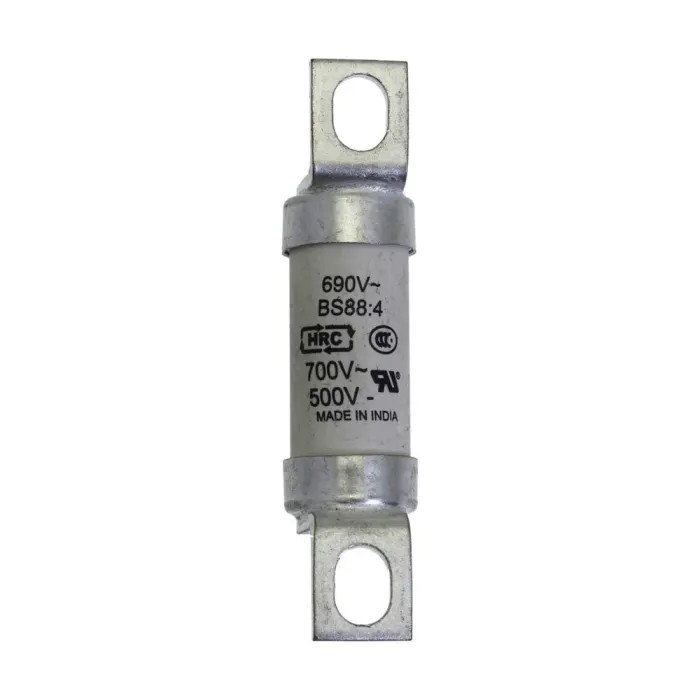

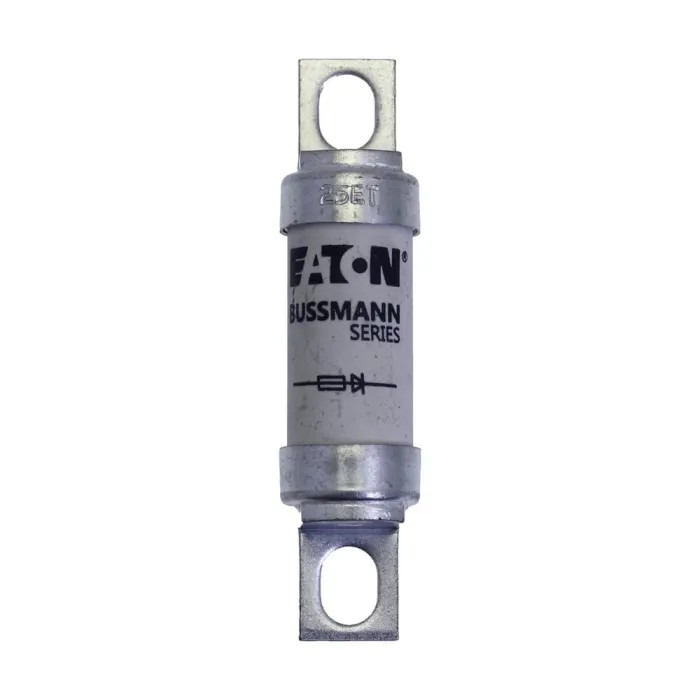

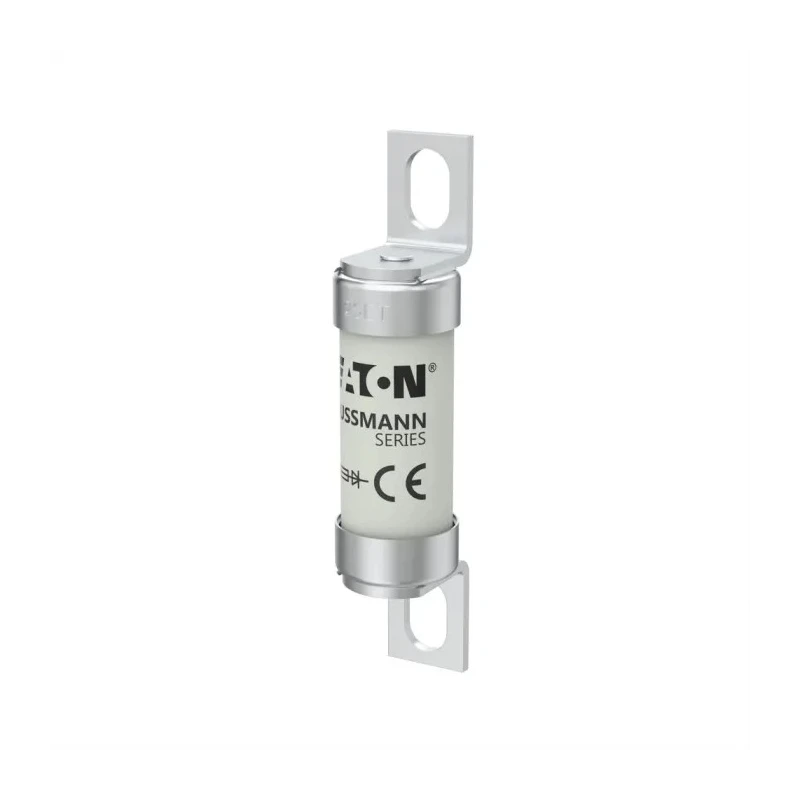

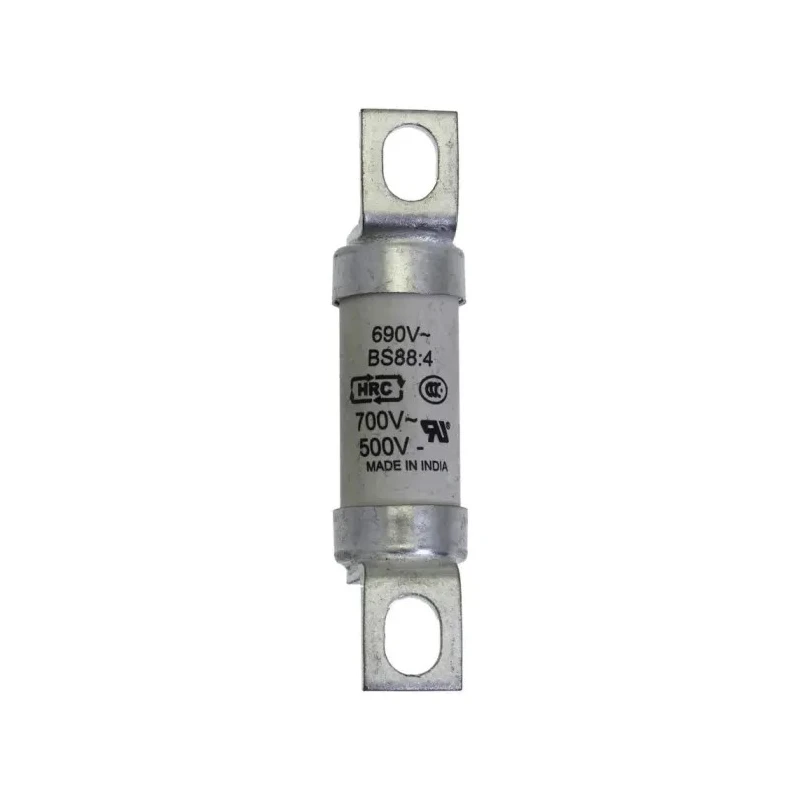

Eaton 25A Bolted Tag Fuse 76 mm x 20 mm x 20 mm 690V High Rupture Capacity 25ET

Eaton 25ET Bolted Tag Fuse delivers reliable overcurrent protection with a 25A current rating and 690V voltage capacity, suitable for demanding industrial electrical setups. This high-speed fuse rapidly interrupts fault currents to maintain system integrity and protect sensitive equipment.

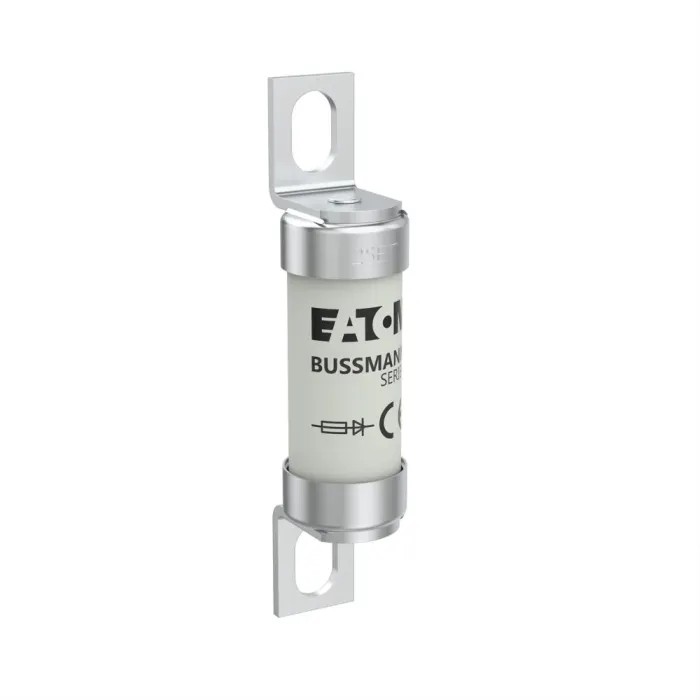

The fuse features a compact cartridge size of 76 mm x 20 mm x 20 mm with an overall length of 77 mm, designed for installation in standard holders in compact panel layouts. Its offset tag with 12.7 mm width and fixing centres of 63.5 mm simplify mounting and replacement processes, ensuring secure and consistent assembly.

Constructed to meet multiple recognized standards including IEC 60269-4, RoHS, UL, and CE, this fuse is suitable for international applications requiring high rupture capacity and aR protection characteristics. The diameter of 17.1 mm and height of 20 mm provide a compact form factor for easy handling even in confined enclosure spaces.

Commonly employed in motor control panels needing fast short-circuit clearance, power distribution units in manufacturing facilities, frequency drives, converters, and switchgear in automation systems, this Eaton British Standard Fuse upholds robust electrical safety and performance.

Provides consistent 25A current-interruption performance. Supports high-voltage industrial circuits with a 690V rating. High rupture capacity limits fault energy and arc propagation. aR protection characteristic ensures selective short-circuit clearance.

Offset tag with 12.7 mm width for secure terminal connection. Fixing centres of 63.5 mm enable consistent mounting. Complies with IEC 60269-4, RoHS, UL, and CE standards. Compact cartridge design of 76 mm x 20 mm x 20 mm fits standard holders.

Suitable for motor control panels, power distribution units, and automation systems.

Eaton, formerly known as Bussmann, continues to provide quality electrical protection components that meet stringent industry requirements. Explore more Eaton fuses and other electrical protection devices at EnvMart for your industrial and commercial needs.
