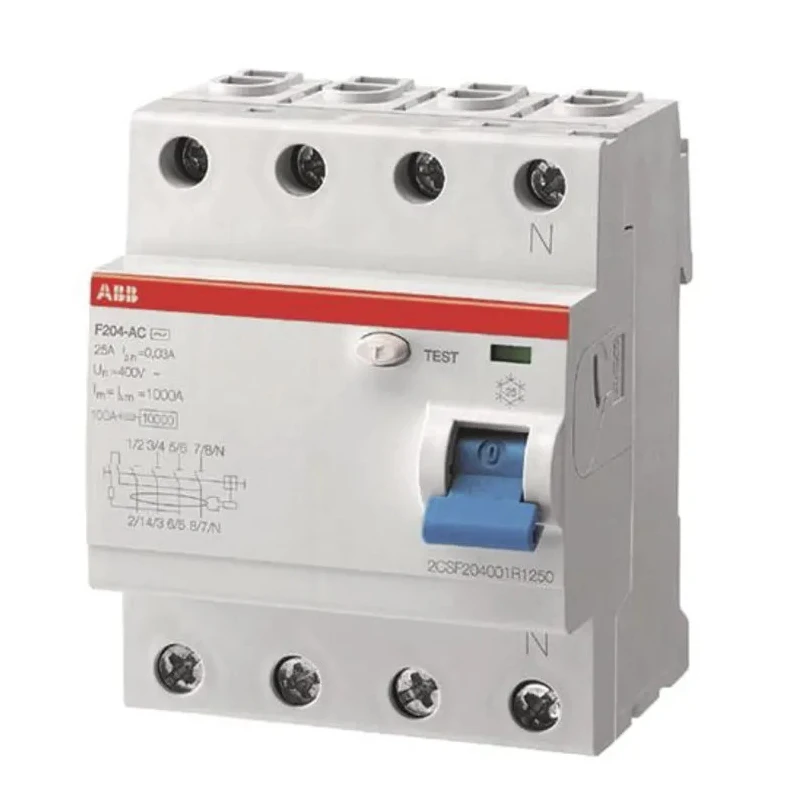

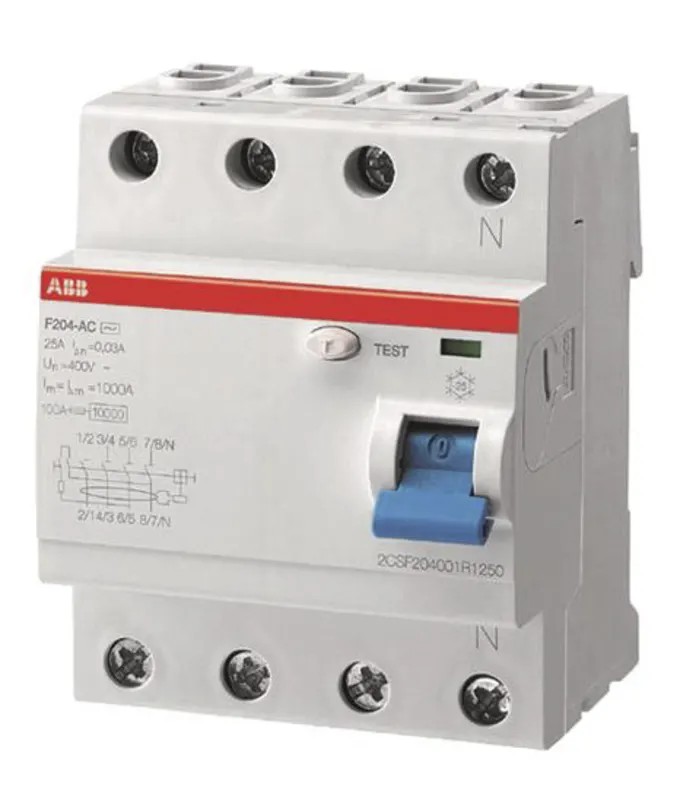

ABB Residual Current Circuit Breaker F200 Series 25A 4-Pole 30 mA Type A 1 kA 480V AC 2CSF204199R1250 F204 A-25/0,03 110V

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker F200 Series 25A 4-Pole 30 mA Type A 1 kA 480V AC 2CSF204199R1250 F204 A-25/0,03 110V



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	F200
Brand	ABB
Height	85mm
Model	2CSF204199R1250 F204 A-25/0,03 110V
Depth	69mm
Width	70mm
Mount Type	DIN Rail
Current Rating	25A
Series	F200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	4
Standards/Approvals	RoHS, CE, IEC EN 61008
Rated AC Voltage	480V ac
Tripping Characteristics	Type A
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

This RCCB operates at a current rating of 25 amperes.
It features a 4-pole design suitable for multiple circuit protection.
The trip sensitivity is set at 30 milliamperes for enhanced earth leakage detection.
It complies with Type A tripping characteristics for AC and pulsating DC fault currents.
The device supports a rated AC voltage of 480 volts.
Mounting is designed for DIN rail installations.
Breaking capacity reaches 1 kiloampere for robust fault handling.
The unit uses a toggle switch reset actuator for ease of operation.

Product Description

ABB 2CSF204199R1250 F204 A-25/0,03 110V Residual Current Circuit Breaker from the F200 Series provides reliable earth leakage protection by detecting sinusoidal alternating and direct pulsating earth fault currents with a trip sensitivity of 30mA. Designed for residential, commercial, and industrial electrical systems, it ensures safety by reducing risks of electric shock and fire hazards.

This 4-pole circuit breaker supports a current rating of 25A and operates at a rated AC voltage of 480V. Its breaking capacity of 1kA ensures it can handle substantial fault currents without damage. The device features an electromagnetic tripping mechanism with an instantaneous break time and a toggle switch for manual reset.

The RCCB is constructed to fit standard DIN rail mounts and includes screw-type terminals for secure wiring connections. Its compact dimensions are 85mm in height, 70mm width, and 69mm depth, making it suitable for various types of distribution boards.

The product complies with international standards including RoHS, CE, and IEC EN 61008, underlining its quality and safety adherence. This model offers Type A trip characteristics, ideal for detecting AC and pulsating DC earth faults, and meets stringent electrical protection requirements.

This RCCB provides protection against indirect and direct contact faults with a sensitivity of 30mA. Designed for use in electrical installations requiring high reliability and safety compliance. Suitable for installation in industrial, commercial, and residential environments.

Its robust build and standards certifications guarantee operational safety and durability. Requires a minimum operating voltage of 110V for the test button functionality.

Choose ABB F200 Series RCCB for dependable earth leakage protection solutions in diverse electrical setups. Explore more circuit breakers and protective devices in the EnvMart catalog for comprehensive electrical safety solutions.
