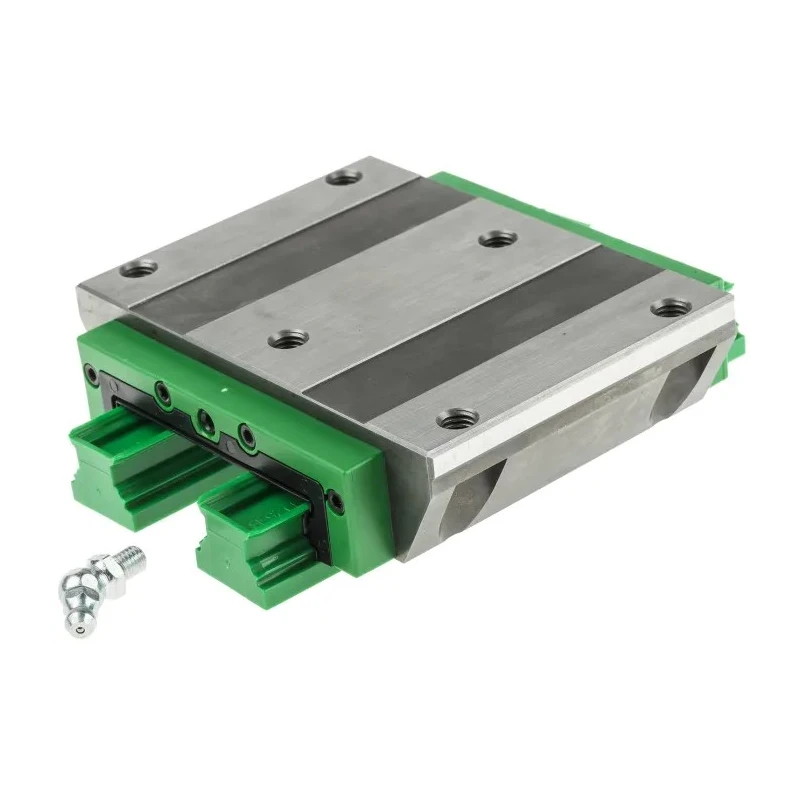

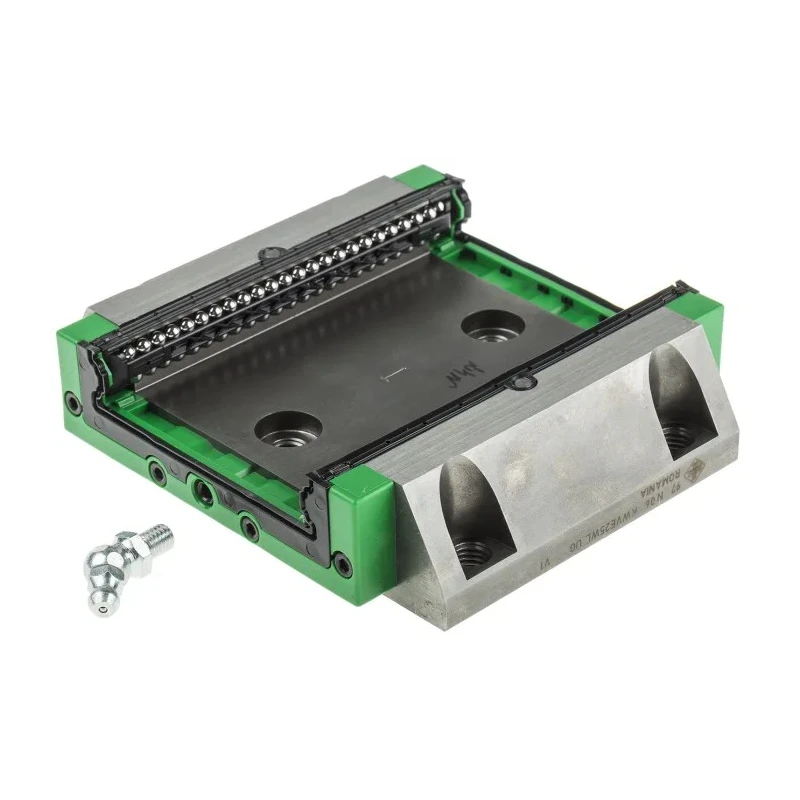

INA Linear Guide Carriage KWVE25-WL-UG-V1-G3 KWVE25 Series 107.5mm Length 120mm Width 23400N Dynamic Load 54000N Static Load
Specifications
| Country of Origin | India |
|---|---|
| Brand | INA |
| Model | KWVE25-WL-UG-V1-G3 |
| Series | KWVE25 |
| Static Load Rating | 54000N |
| Dynamic Load Rating | 23400N |
| Carriage Length | 107.5mm |
| Carriage Width | 120mm |
Key Features
- Four-row linear recirculating ball bearing design optimizes load capacity and rigidity.
- Preloaded configuration ensures high positional accuracy and low friction during operation.
- Suitable for moving heavy loads with high running precision and long stroke lengths.
- Capable of accelerations up to 150 m/s² and speeds reaching 360 m/min depending on conditions.
- Incorporates quad-spacers for enhanced carriage stability under load.
- Designed with slots for covering strips and multi-piece guideways for installation flexibility.
- Standard accessories include plastic dummy guideways, plastic closing plugs, and lubrication connectors.
- Ideal for industrial applications requiring precise linear motion such as automation, manufacturing equipment, and mechanical machinery setup.
Product Description
INA KWVE25-WL-UG-V1-G3 Linear Guide Carriage from the KWVE25 Series offers a robust solution for applications demanding high load capacity and rigid linear guidance. It features a carriage length of 107.5mm and carriage width of 120mm, engineered for dynamic loads up to 23400N and static loads up to 54000N. This carriage utilizes a four-row linear recirculating ball bearing mechanism that enhances load distribution and reduces friction, achieving precise and smooth linear motion.
The preloading of the system guarantees excellent positional accuracy and minimizes play, making it suitable for heavy load scenarios with high running precision. Depending on operating conditions, the guide assembly can withstand accelerations up to 150 m/s² and speeds up to 360 m/min, supporting long and unlimited stroke lengths.
Unique design features include quad-spacers to enhance carriage stiffness and durability under load, helical teeth for smooth load transfer, and slots for fitting covering strips to protect the guideway. The modular multi-piece guideways provide flexibility and ease of installation in various machinery setups.
Four-row linear recirculating ball bearing construction for high load capacity and low friction. Preloaded guidance system ensuring precise positioning and minimal runout. High dynamic and static load ratings suitable for demanding industrial applications.
Accurately machined carriage dimensions of 107.5mm length and 120mm width for compatibility with KWVE25 series rails. Equipped with standard accessories such as plastic dummy guideways, closing plugs, and lubrication connectors for maintenance ease.
Supports high accelerations and speeds, adaptable to a wide range of mechanical, HVAC, manufacturing, and automation systems. Corrosion-resistant options available, ensuring durability in various environmental conditions.
This INA Linear Guide Carriage is essential for high-precision linear motion requirements across industrial manufacturing, automation, and mechanical system designs. It ensures reliable operation with enhanced rigidity, load capacity, and smooth travel, making it a critical component in linear motion assemblies.
Explore the INA product range for additional automation components and linear motion solutions to meet your industrial equipment needs with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this model is 23400N.
The static load rating is 54000N.
The carriage length is 107.5mm and the width is 120mm.
This design optimizes load capacity and rigidity while reducing friction, enhancing smooth linear motion.
It can reach speeds up to 360 m/min depending on operating conditions.
It is ideal for industrial applications requiring precise linear motion, such as automation and manufacturing equipment.
Standard accessories include plastic dummy guideways, plastic closing plugs, and lubrication connectors.
The preloaded configuration ensures high positional accuracy and minimizes play during operation.
It can withstand accelerations up to 150 m/s², depending on conditions.
It incorporates quad-spacers for enhanced carriage stability and helical teeth for smooth load transfer.
The country of origin for this model is India.
