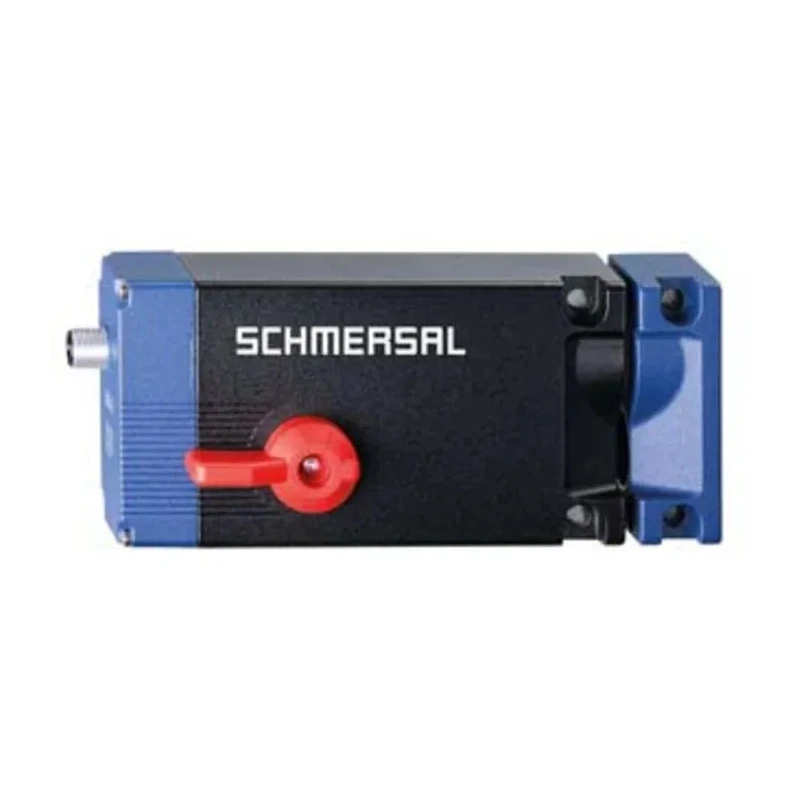

Schmersal Solenoid Interlock Switch, Series AZM400Z, Magnetic Actuator Type, 24V DC, Die Cast Housing

Schmersal AZM400Z-ST-I2-1P2P-T solenoid interlock switch is a magnetic actuator device operating at 24V DC, designed to secure gates and guard doors in industrial, manufacturing, and assembly line applications.

This interlock switch provides a high clamping force of 10,000 newtons, ensuring doors remain securely closed during machine operation, thereby enhancing workplace safety. The integrated RFID coding prevents unauthorized personnel from tampering or bypassing the switch, adding an extra layer of security to safety systems.

Constructed with a die-cast alloy housing, this switch is highly resistant to impact and corrosion, suitable for tough industrial environments.

With an ingress protection rating of IP66 and IP67, it is fully dust-tight and protected against water ingress, including immersion up to 1 meter for 30 minutes, making it applicable for harsh and wet conditions.

The switch maintains performance within a wide temperature range from -20°C to +55°C and has a robust mechanical lifespan guaranteed for at least one million operations, assuring long-term reliability.

Compact size with dimensions measuring 166.7 mm in length, 77.8 mm width, and 65.3 mm depth allows installation with minimal space requirements on equipment and control cabinets. Featuring two normally open (2 NO) safety contacts, the device ensures precise safety signal transmission for automated processes.

Its low current consumption of 100 mA contributes to energy-efficient operation, reducing power costs in continuous industrial use. The product complies with CE, cULus, EAC, and TUV certifications, aligning with international safety and quality standards.

High clamping force of 10,000N enhances safety by firmly securing access points. RFID coding prevents unauthorized tampering with the switch. Robust die-cast alloy housing offers impact and corrosion resistance. IP66 and IP67 rated for dust-tight protection and water resistance up to 1 meter depth.

Designed for demanding industrial environments with operating temperature from -20°C to +55°C. Compact dimensions of 166.7 mm length, 77.8 mm width, and 65.3 mm depth minimize equipment bulk. Two normally open (2 NO) safety contacts ensure reliable operation in safety systems.

Low current consumption of 100 mA improves energy efficiency. Certified to CE, cULus, EAC, and TUV standards assuring quality and compliance.

Ideal for deployment in manufacturing industry, assembly lines, security systems, and engineering equipment, this Solenoid Interlock Switch supports enhanced machinery safety, access control, and operational reliability.
