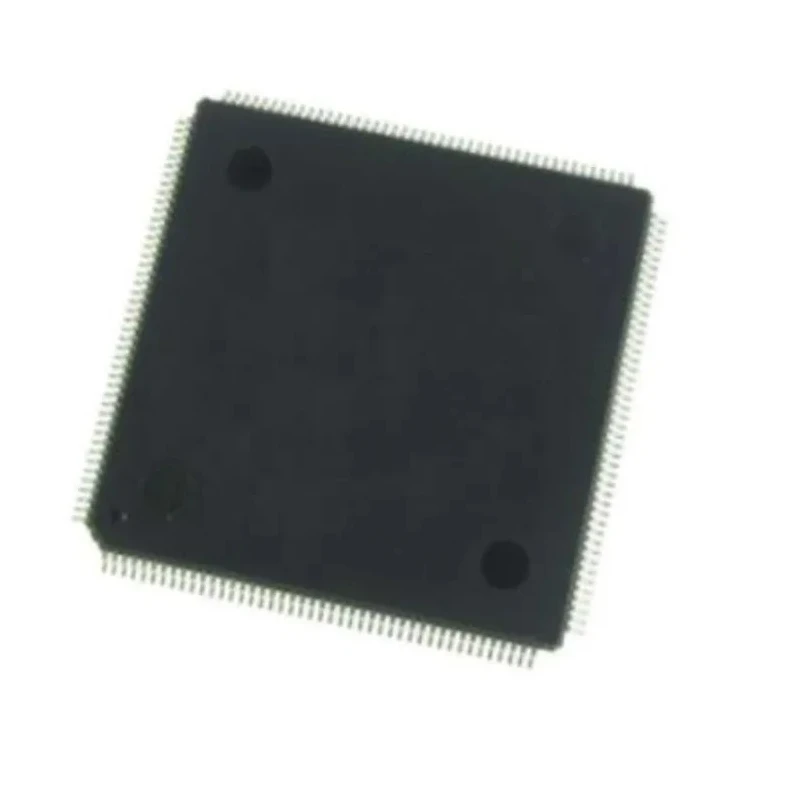

Microchip PIC32MZ2064DAH176-I/2J 32 bit microAptiv CPU Microcontroller 200 MHz 2.048MB FLASH 176-Pin LQFP
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 22mm |
| Model | PIC32MZ2064DAH176-I/2J |
| Width | 22mm |
| Mount Type | Surface |
| Series | PIC32MZ |
| Maximum Operating Temperature | +85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Device/Host/OTG |
| Ram size | 640kB |
| Pin Count | 176 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
| Device Core | microAptiv CPU |
| Program Memory Size | 2.048MB |
| Maximum Clock Frequency | 200MHz |
| Number of Programmable I/Os | 120 |
| Analogue Comparators | 2 |
| Number of Timers | 9 |
| Instruction Set Architecture | MIPS32 |
| ADCs | 45 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a microAptiv CPU core with 32-bit data bus width.
- Includes 640kB RAM size for efficient processing.
- Supports up to 120 programmable I/Os for versatile applications.
- Operates within a supply voltage range of 2.2V to 3.6V.
- Equipped with 45 analog inputs via 12-bit ADC modules.
- Designed to operate from -40°C to +85°C, suitable for automotive use.
- Includes communication interfaces such as CAN, UART, I2C, PMP, EBI, SQI, SPI, and I2S.
- Integrated with USB Device/Host/OTG and 10/100 Mbps Ethernet MAC.
Product Description
Microchip PIC32MZ2064DAH176-I/2J is a high-performance 32-bit microcontroller featuring a microAptiv CPU core, operating at a maximum clock frequency of 200 MHz. It packs 2.048MB of FLASH program memory and 640kB of RAM, delivered in a 176-pin LQFP package, making it suitable for complex embedded applications.
This microcontroller supports a wide operating voltage range from 2.2V to 3.6V and a temperature range of -40°C to +85°C, aligned with AEC-Q100 automotive standards, ensuring reliability in demanding environments.
It includes 120 programmable I/Os and up to 45 analog inputs through 12-bit 18 MSPS ADC modules, providing extensive interfacing options. Communication protocols integrated are CAN, UART, I2C, PMP, EBI, SQI, SPI, and I2S, along with USB device/host/OTG functionality and a 10/100 Mbps Ethernet MAC with MII and RMII interfaces for robust connectivity.
The device features dual-panel flash for live update support, a memory management unit for embedded OS execution, and advanced memory protection capabilities. Its microMIPS mode enables up to 35% code compression enhancing memory efficiency.
These specifications make the PIC32MZ2064DAH176-I/2J ideal for industrial, automotive, consumer electronics, communication systems, and embedded applications requiring high speed and advanced peripheral integration.
Features a microAptiv CPU core with 32-bit data bus width. Includes 640kB RAM size for efficient processing. Supports up to 120 programmable I/Os for versatile applications. Operates within a supply voltage range of 2.2V to 3.6V.
Equipped with 45 analog inputs via 12-bit ADC modules. Designed to operate from -40°C to +85°C, suitable for automotive use. Includes communication interfaces such as CAN, UART, I2C, PMP, EBI, SQI, SPI, and I2S. Integrated with USB Device/Host/OTG and 10/100 Mbps Ethernet MAC.
Equipped with advanced memory protection and memory management unit. Maintains AEC-Q100 automotive standard for reliability. Explore more Microchip Microcontrollers and related embedded solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC32MZ2064DAH176-I/2J operates at a maximum clock frequency of 200 MHz.
It operates within a supply voltage range of 2.2V to 3.6V.
This microcontroller features 2.048MB of FLASH program memory.
It includes a RAM size of 640kB for efficient processing.
The device supports up to 120 programmable I/Os for versatile applications.
It is designed to operate within a temperature range of -40°C to +85°C, suitable for automotive use.
The microcontroller includes communication interfaces such as CAN, UART, I2C, PMP, EBI, SQI, SPI, and I2S.
It is delivered in a 176-pin LQFP package type.
The dimensions are 1.45mm in height and 22mm in width.
It is equipped with 45 analog inputs via 12-bit ADC modules.
This model maintains AEC-Q100 automotive standards for reliability.
It features a microAptiv CPU core with a 32-bit data bus width and follows the MIPS32 instruction set architecture.
