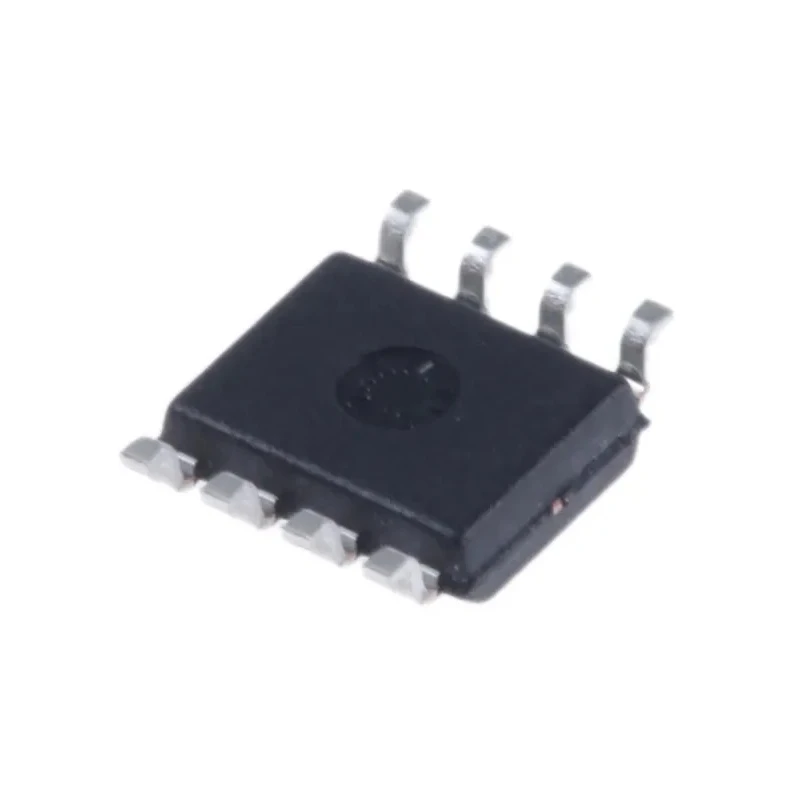

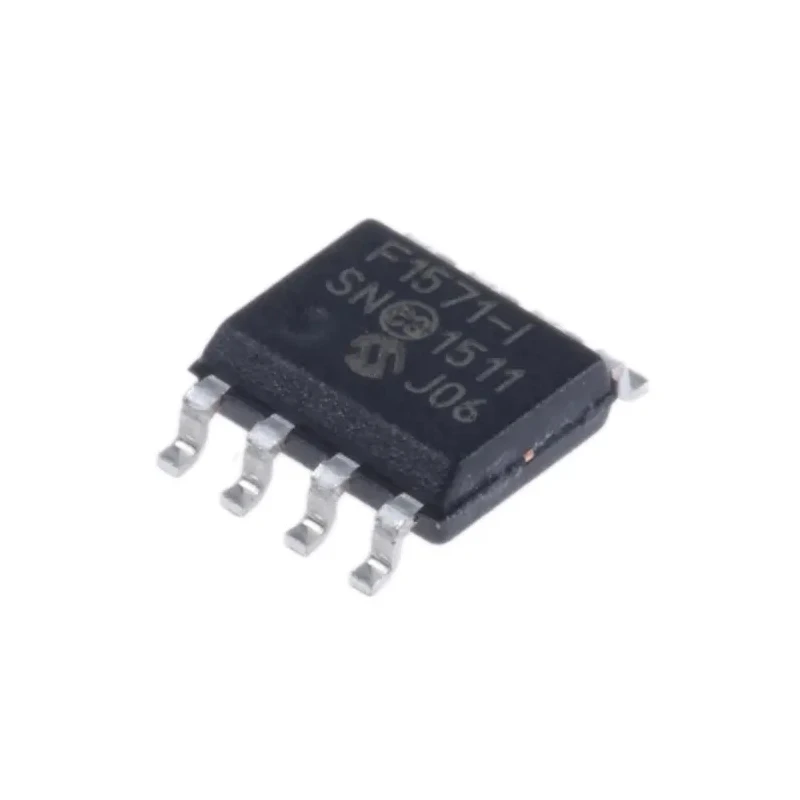

Microchip 8-Bit PIC12F1571-I/SN Microcontroller 16 MHz 1.75kB FLASH SOIC 8-Pin PIC12F1571-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | PIC12F1571-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 1 |
| Number of Timers | 6 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with an 8-bit PIC device core supporting up to 49 instructions and 16 level hardware stack.
- Includes 1.75kB of FLASH program memory and 128-bit RAM for efficient data handling.
- Equipped with a maximum clock frequency of 16 MHz and a configurable internal oscillator.
- Offers 6 I/O pins, 3 standalone PWM modules, 4-channel 10-bit ADC, and 1×5 bit DAC for flexible analog and digital interfacing.
- Features multiple timers including two 8-bit timers and one 16-bit timer for precise timing operations.
- Supports In Circuit Serial Programming (ICSP) and includes automotive standard ISO/TS 16949 compliance.
- Designed for industrial, automotive, and embedded system applications with operating temperatures ranging from -40°C to 85°C.
Product Description
Microchip PIC12F1571-I/SN is an 8-bit microcontroller designed for compact and efficient embedded solutions. It offers a 16 MHz internal oscillator and 1.75kB of FLASH program memory, housed in an 8-pin SOIC surface mount package.
This device employs an enhanced mid-range PIC core architecture supporting 49 instructions and a deep 16-level hardware stack, delivering up to 8 MIPS performance. It is capable of operating at supply voltages between 1.8V and 5.5V, dissipating a maximum power of 800 mW, making it suitable for power-sensitive applications.
The microcontroller provides 6 programmable I/O pins and advanced peripherals including three standalone PWM modules, a 4-channel 10-bit ADC for analogue input, and a 5-bit DAC for digital-to-analogue conversion. Timing and wave generation are enhanced through two 8-bit timers and a 16-bit timer, along with configurable logic cells and complementary waveform generator capabilities.
Additional features include a numerically controlled oscillator and analogue comparator unit, assisting in industrial control, automation, and automotive systems. The device supports In Circuit Serial Programming (ICSP), facilitating programming even after deployment.
Its robust specifications and compliance with the automotive ISO/TS 16949 standard make it ideal for automotive and industrial embedded system designs requiring reliability and precision.
Operates on an 8-bit PIC core with 49 instructions and 16-level hardware stack. Program memory of 1.75kB FLASH and 128-bit RAM for data processing. Maximum clock frequency of 16 MHz with selectable internal oscillator ranges.
Hardware peripherals include multiple PWM modules, ADC channels, DAC and timers for versatile applications. Low power consumption with operating voltage from 1.8 V to 5.5 V and 800mW max power dissipation. ICSP support and automotive standard ISO/TS 16949 compliant.
This Microchip PIC12F1571-I/SN microcontroller is widely used in industrial, automotive, consumer electronics, and embedded system manufacturing applications requiring compact, efficient control solutions. Browse more Microcontrollers on EnvMart for a wide selection of semiconductor devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz.
It has a program memory size of 1.75 kB FLASH.
The operating temperature ranges from -40°C to 85°C.
This model features 6 programmable I/O pins.
It includes two 8-bit timers and one 16-bit timer.
The microcontroller has a RAM size of 128 bits.
The package type is SOIC (Small Outline Integrated Circuit).
It operates with a supply voltage range of 1.8V to 5.5V.
Yes, it supports In Circuit Serial Programming (ICSP).
It complies with the automotive standard ISO/TS 16949.
It includes a 4-channel 10-bit ADC and a 5-bit DAC.
The height of this microcontroller is 1.25 mm.
