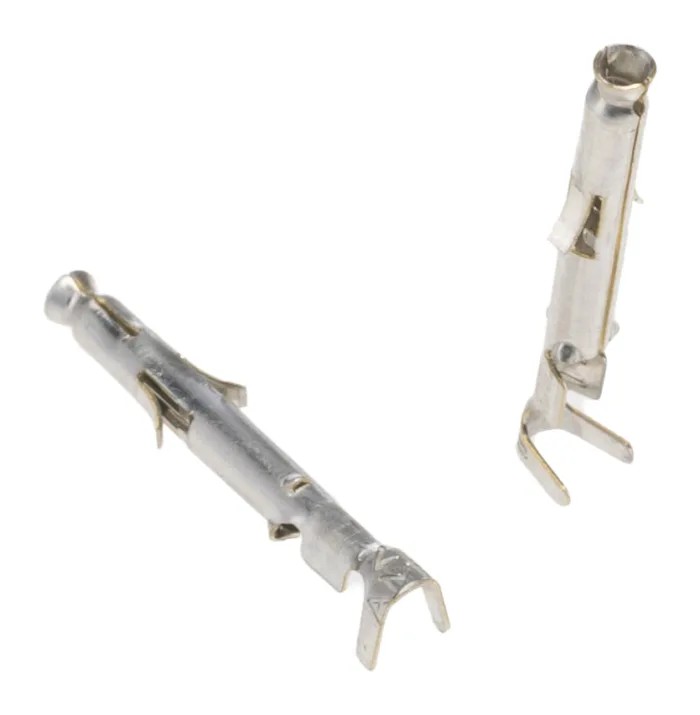

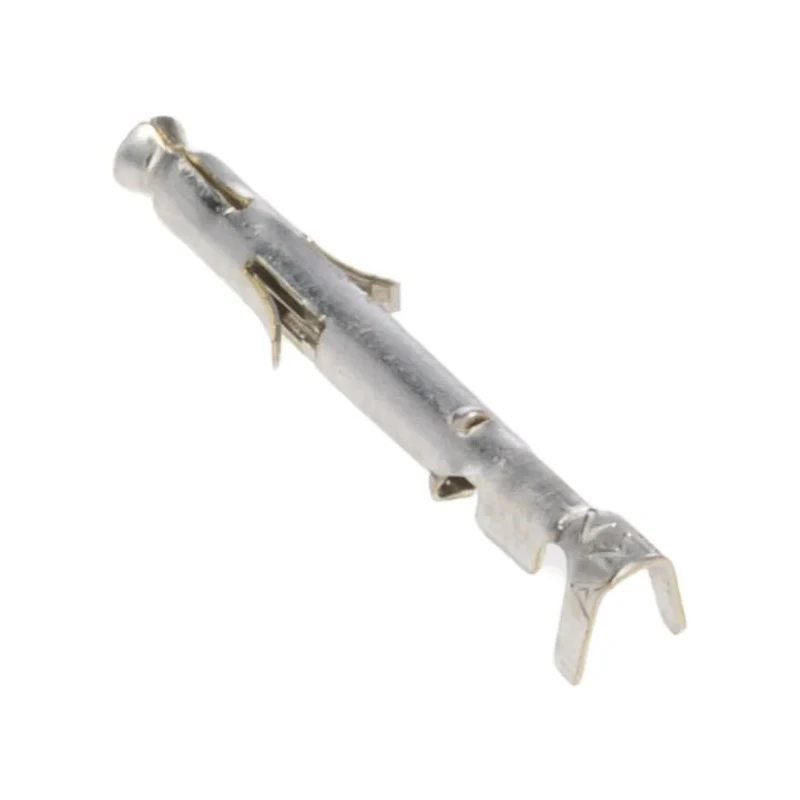

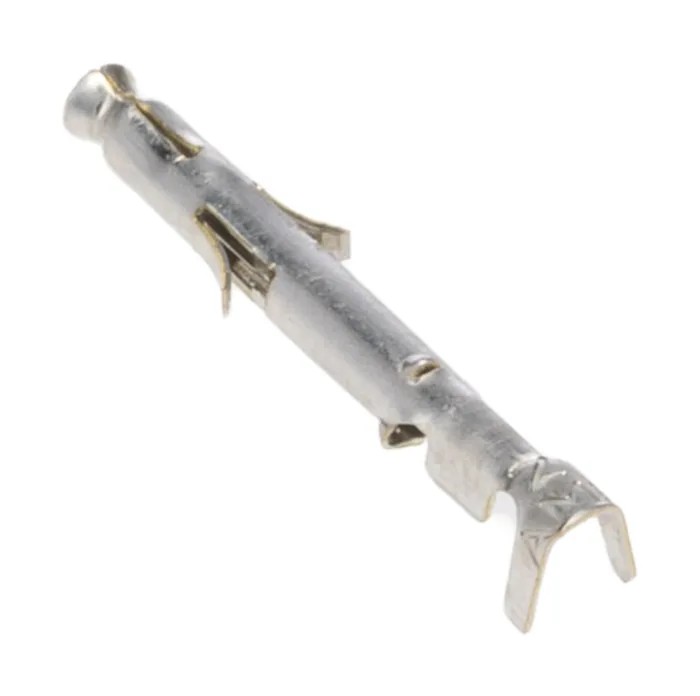

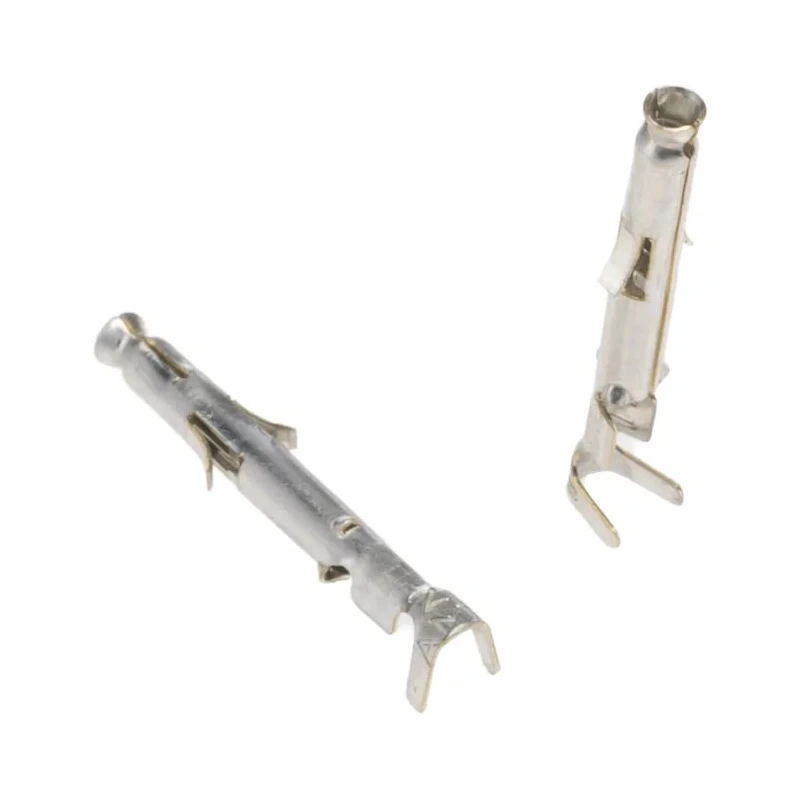

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A 26-22 AWG Tin Plated Brass 170365-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170365-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with a tin-plated finish for superior conductivity and corrosion resistance.
- Supports wire sizes from 26 AWG (0.1 mm²) to 22 AWG (0.35 mm²).
- Rated for a maximum operating temperature of 105°C and minimum of -20°C.
- Features a female contact gender suitable for Mini-Universal MATE-N-LOK connector housings.
- Designed to handle a current of up to 7 amperes and operating voltage up to 600 Vac/dc.
- Termination type is crimp for reliable wire connections.
- Low maximum contact resistance of 10 milliohms to ensure efficient conductivity.
- Applications include consumer electronics, HVAC, power supplies, portable devices, lighting, medical, and security industries.
Product Description
TE Connectivity 170365-1 Mini-Universal MATE-N-LOK Series female crimp terminal is engineered to deliver reliable electrical connections within electronic and electrical systems. Constructed from brass material with a pre-tin plated finish, this contact terminal offers exceptional conductivity and corrosion resistance for demanding environments.
Compatible with Mini-Universal MATE-N-LOK connector housings, this female crimp terminal supports wire gauges from 26 AWG (0.1 mm²) up to 22 AWG (0.35 mm²), ensuring versatility for various wiring applications. The 7A current rating and 600 Vac/dc voltage rating make it suitable for medium-power circuit requirements.
The low contact resistance of 10 milliohms helps to maintain efficient electrical flow with minimal loss, while the crimp termination type ensures a secure and durable mechanical and electrical connection. It operates reliably in temperature ranges from -20°C up to 105°C, suiting numerous HVAC, consumer electronics, and industrial applications.
This crimp terminal is extensively used across consumer electronics, commercial HVAC systems, power supplies, portable devices, lighting, medical equipment, and security systems. Its robust design and material quality ensure extended durability and performance in these demanding environments.
TE Connectivity also offers a full range of Mini Universal MATE-N-LOK contacts and crimp tooling to complement this product, allowing for efficient assembly and maintenance of wiring systems.
Constructed from brass with tin plating for corrosion resistance and conductivity. Compatible with Mini-Universal MATE-N-LOK connector housings supporting female contact gender. Supports wire sizes from 26 AWG to 22 AWG for versatile electrical connections.
Current rated at 7A with a maximum operating voltage of 600 Vac/dc. Crimp termination type for secure and reliable wire connections. Temperature operating range from -20°C to 105°C suitable for diverse industrial applications.
Low contact resistance of 10 milliohms enhancing electrical efficiency. Applications include consumer electronics, HVAC, medical, lighting, power supplies, security, and commercial sectors. Manufactured in China without additional standards or approvals.
Explore more TE Connectivity components and related products in the Connectors category on EnvMart for dependable electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 7 amperes.
It supports wire sizes from 26 AWG (0.1 mm²) to 22 AWG (0.35 mm²).
The maximum operating voltage for this terminal is 600 Vac/dc.
It is constructed from brass with a tin-plated finish for improved conductivity and corrosion resistance.
It operates within a temperature range of -20°C to 105°C.
This unit utilizes a crimp termination type for secure wire connections.
It is designed for use with Mini-Universal MATE-N-LOK connector housings.
The maximum contact resistance is 10 milliohms, ensuring efficient conductivity.
It is suitable for applications in consumer electronics, HVAC, power supplies, portable devices, lighting, medical, and security industries.
This terminal is manufactured in China.
This model belongs to the Mini-Universal MATE-N-LOK series.
The contact gender for this terminal is female.
