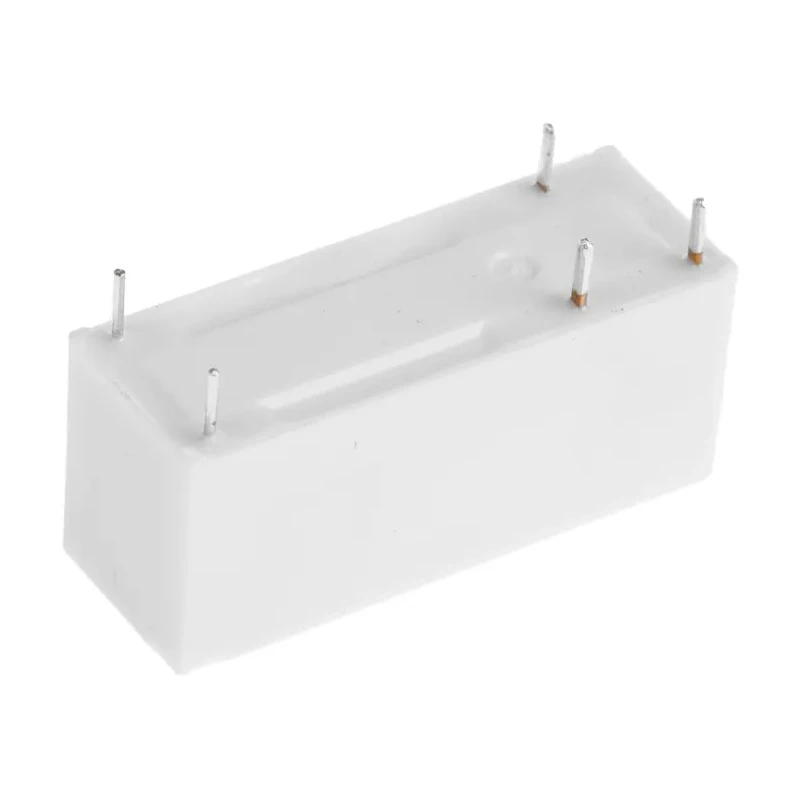

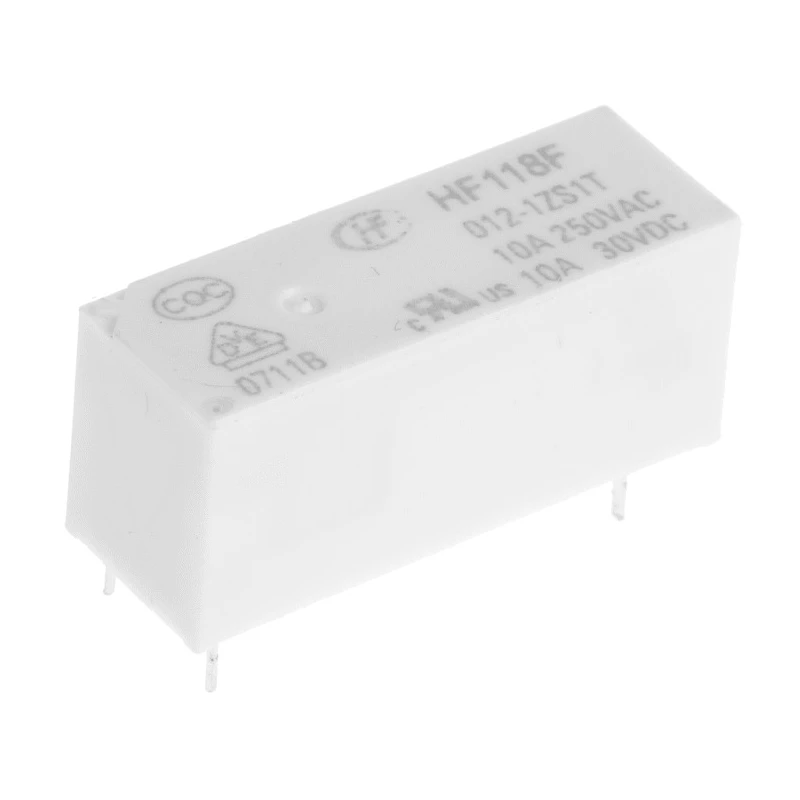

RS PRO PCB Power Relay 12V dc Coil 10A Switching Current SPDT 0476589P

RS PRO 0476589P PCB Power Relay features a 12V dc coil and a switching current rating of 10A, making it ideal for medium-power switching applications.

This relay integrates a SPDT (Single Pole Double Throw) contact configuration with solder terminals tailored for PCB mounting, making it suitable for precise and reliable electronic automation systems.

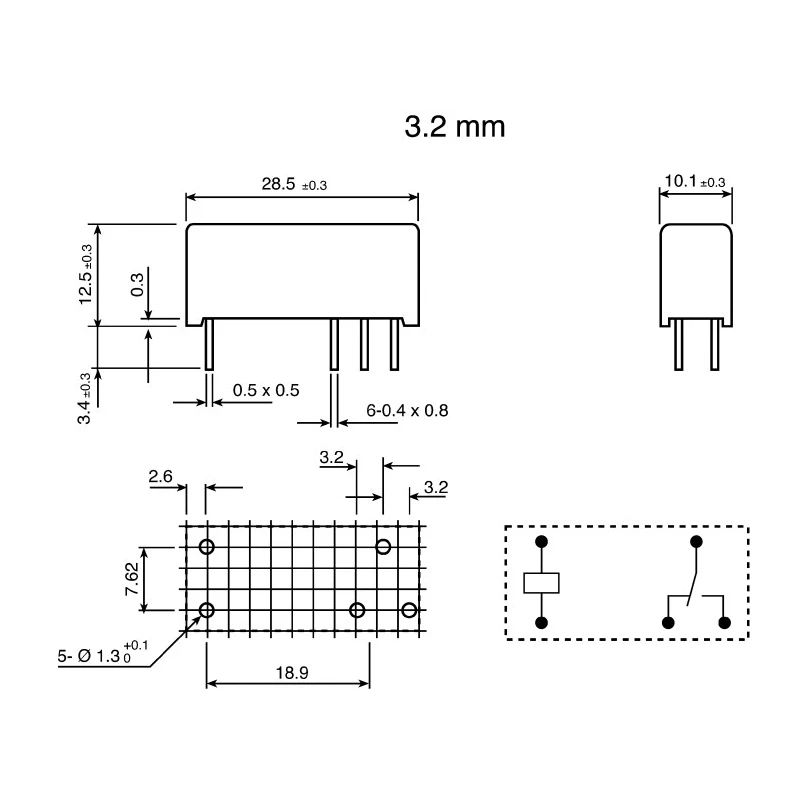

The relay's dimensions are compact, measuring 28.5mm in length, 10.1mm in width, and 12.5mm in height, enabling effective use in space-limited electrical assemblies.

It supports switching DC voltages up to 125V and AC voltages up to 440V, coupled with a coil power consumption of 290mW and coil resistance of 620 ohms, contributing to efficient power management in circuits.

Operating temperature ranges from -40°C to 85°C, making it versatile for diverse industrial, laboratory, and automation environments. Contact material is silver alloy providing excellent conductivity with contact resistance at 100 milliohms, ensuring minimal energy loss during switching.

This relay is engineered for robustness and safety, with a 5kV dielectric strength between coil and contacts and surge voltage tolerance up to 10kV.

It conforms to international standards including RoHS compliance, IEC 60335-1, UL file E133481, VDE file 40010480, and CQC file CQC04001011425, assuring reliability and environmental safety.

Its low profile design maximizes PCB layout efficiency while maintaining high-performance switching capabilities, suitable for use in industrial automation, construction electrical setups, HVAC control systems, and manufacturing equipment controllers.

RS PRO offers a trusted brand for industrial-grade components with this power relay enhancing circuit protection and control in electrical and electronic systems. Explore more Power Relays and electronic components in the category to equip your projects with high-quality switching solutions.

Equipped with a SPDT contact configuration for versatile switching. Designed for PCB mounting with solder-type terminals ensuring secure connections. Offers a low coil power consumption of 290mW enhancing efficiency. Capable of switching AC voltages up to 440V and DC voltages up to 125V.

Operates reliably within a temperature range from -40°C to 85°C. Features a compact and low profile design with a maximum height of 12.5mm for space-saving applications. Robust silver alloy contacts provide a low contact resistance of 100mΩ ensuring efficient conductivity.

Coil resistance measured at 620Ω for stable operation. Designed with a dielectric strength of 5kV between coil and contacts for electrical safety. Complies with RoHS and recognized standards including UL, VDE, and IEC 60335-1.
