Jumo QUANTROL Panel PID Temperature Controller 1 Input 2 Output Logic SSR 240V AC On-Off 702031/8-2100-23

Jumo 702031/8-2100-23 QUANTROL Panel PID Temperature Controller is a new, compact panel mount controller designed for precise temperature regulation in industrial and laboratory settings. It operates with a supply voltage from 110VAC to 240VAC and includes one universal analog input compatible with RTD temperature probes, thermocouples, and current or voltage signals. The controller supports one logic output and one relay output (normally open contact) to facilitate On-Off type control with SSR logic output.

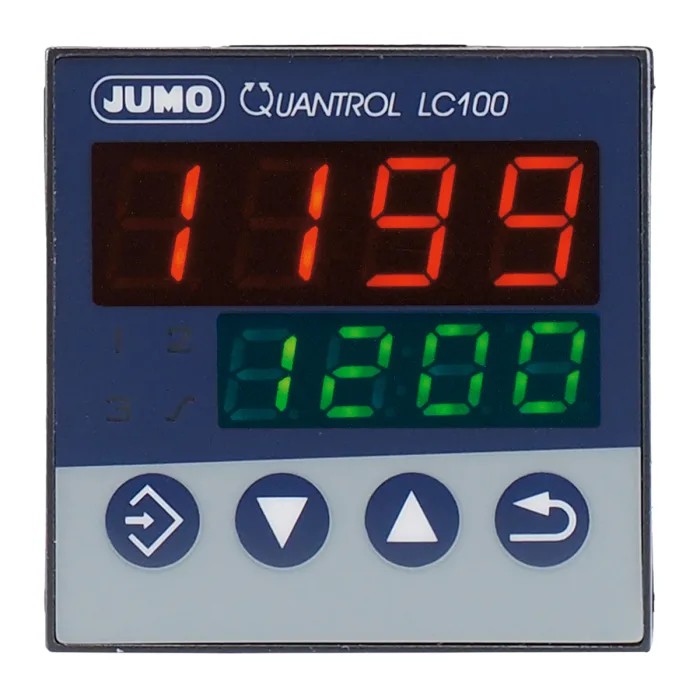

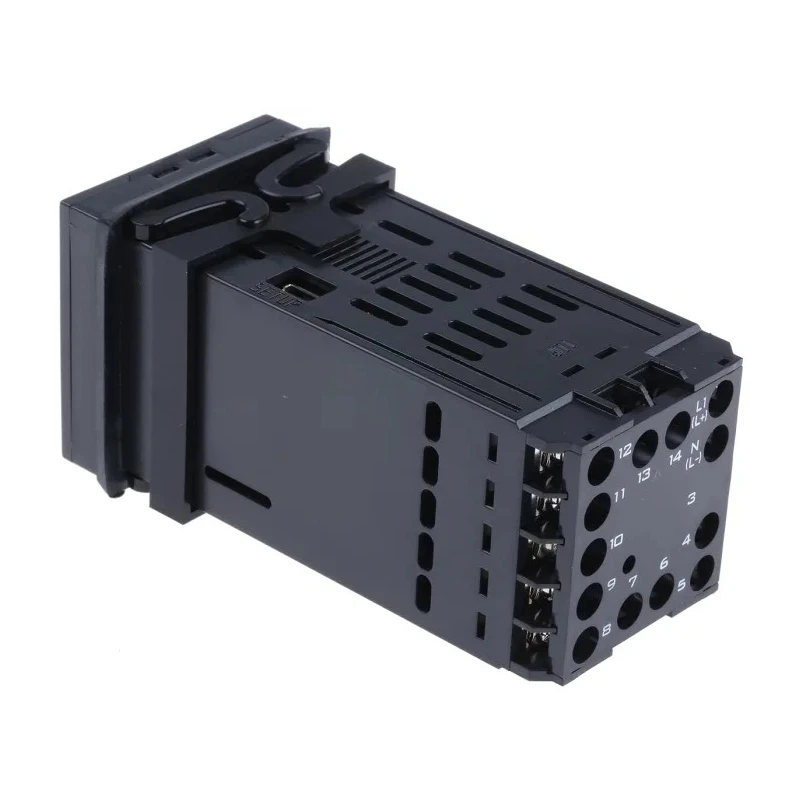

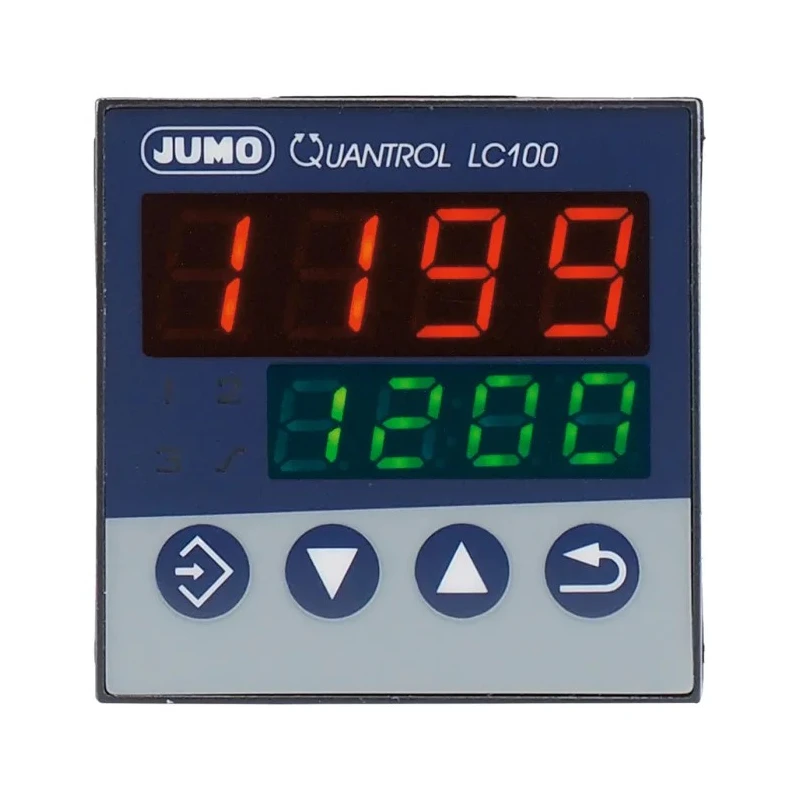

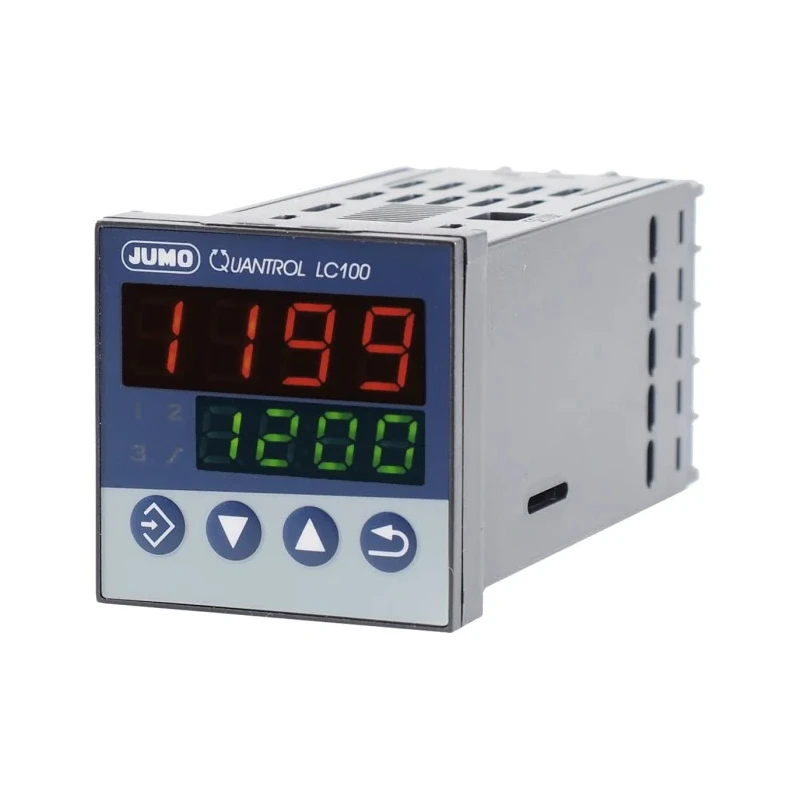

This device features a highly visible LED display comprising two 7-segment red and green indicators, offering clear status feedback. Its IP65 rating ensures durability and suitability in harsh industrial environments. With a width of 48mm and panel depth of 95mm, it easily integrates into control panels.

Control capabilities include P, PD, PI, and PID modes with self-optimization through auto tuning for precise temperature maintenance. The controller also supports manual and automatic modes, ramp and timer functions, and configurable limit value monitoring alarms to ensure process safety.

Communication is facilitated via an RS485 Modbus RTU interface, enabling seamless integration into automation systems. Sensor monitoring, LED status indication, key lock functionality, and level inhibit further enhance operational reliability. A USB mini-B interface is available for easy setup and configuration.

Its firing mode includes a specialized firing curve for pottery kilns, but the device’s versatility makes it well-suited for chemical processing, HVAC, manufacturing, water treatment, and other industrial control applications.

The controller supports one universal input for RTD sensors, thermocouples, or current/voltage signals. Two controlled outputs include a logic SSR output and a relay output for On-Off control. RS485 Modbus RTU interface allows advanced communication with industrial automation systems.

LED display with red/green dual seven-segment indicators provides clear operational status. Compact 48 mm width panel mount with IP65 rating for industrial durability. Self-optimizing PID control with auto-tuning enhances temperature regulation accuracy.

Configurable alarms and sensor monitoring improve safety and diagnostics. Manual/automatic modes, ramp and timer functions increase process control flexibility. USB mini-B port simplifies setup and parameter adjustments.

The Jumo QUANTROL series is widely trusted in industrial machinery, laboratory instrumentation, construction automation, HVAC systems, and other process control environments for dependable temperature management.
