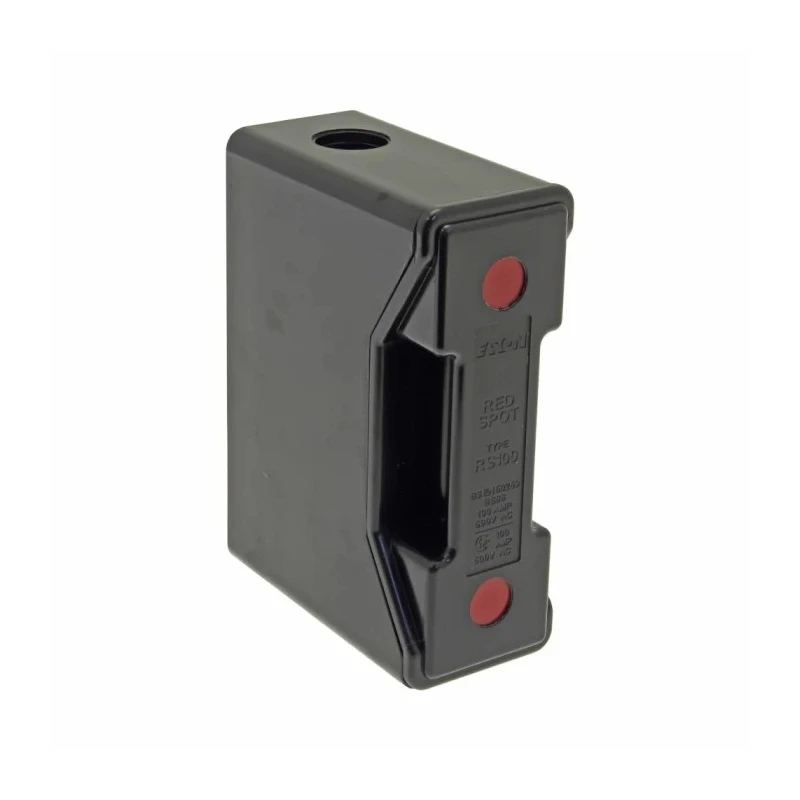

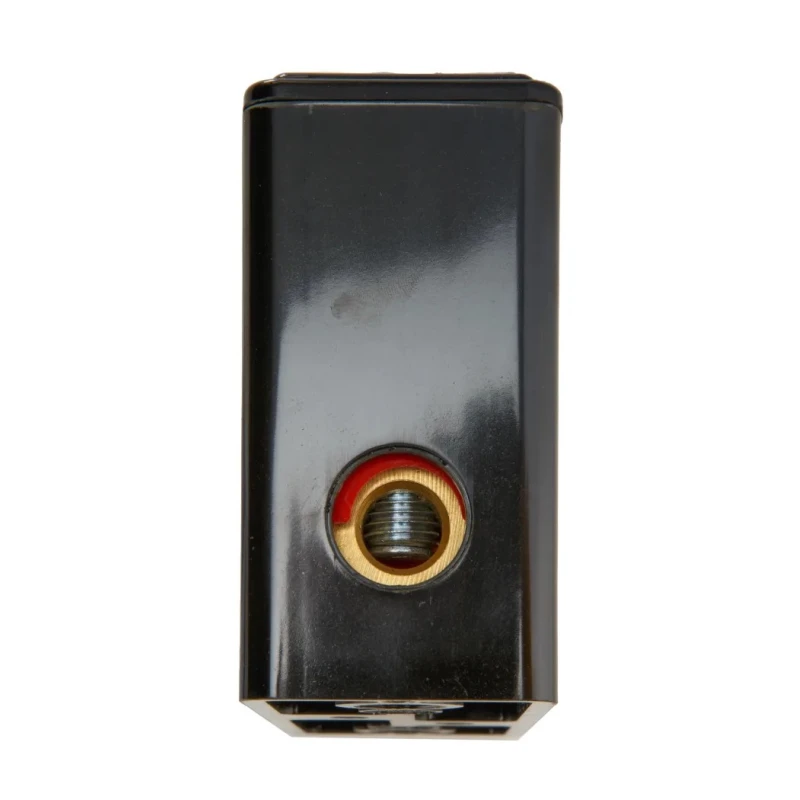

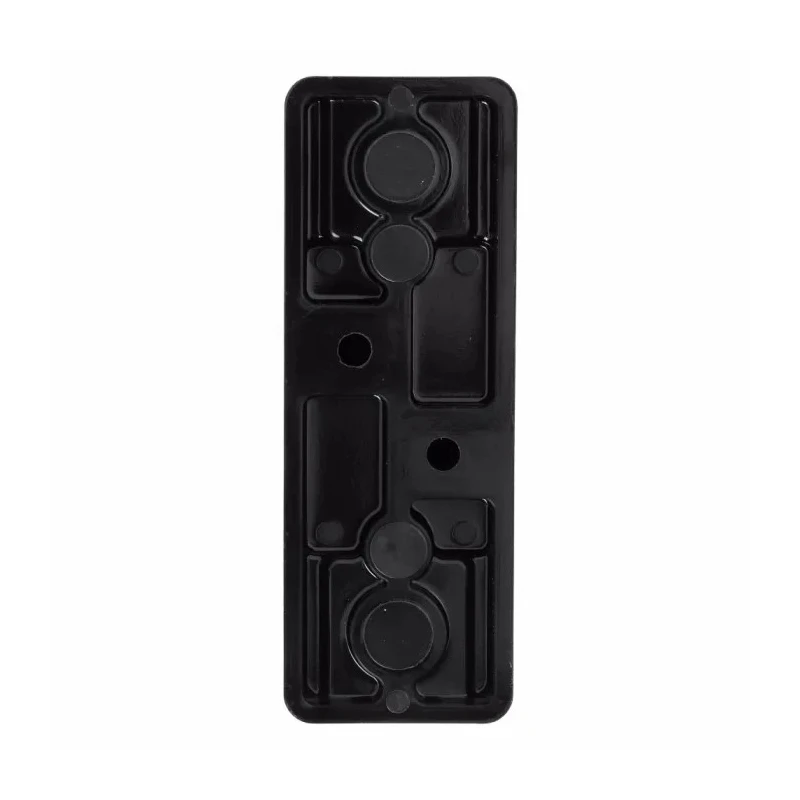

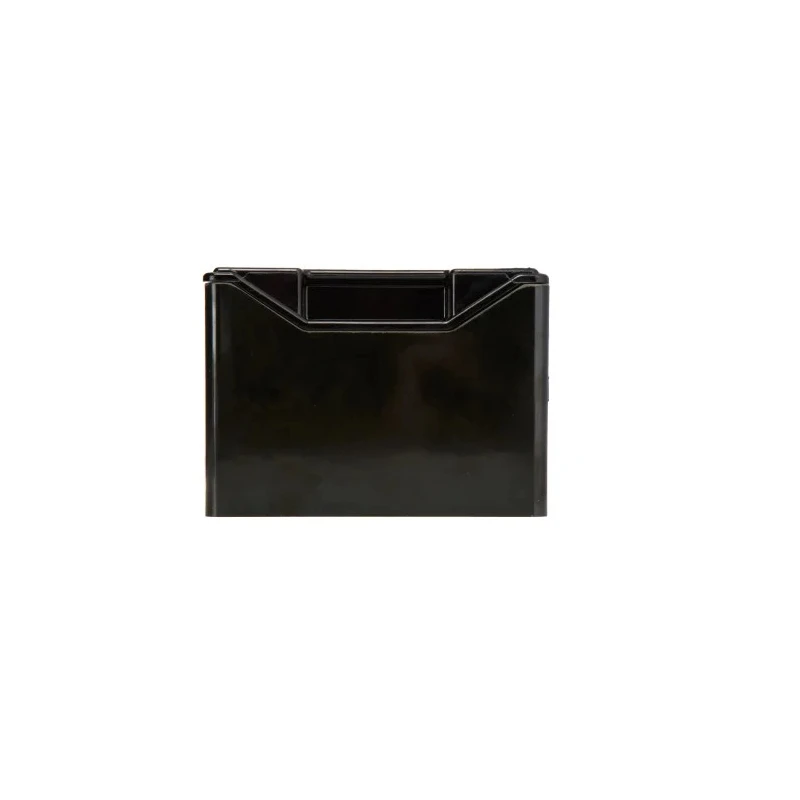

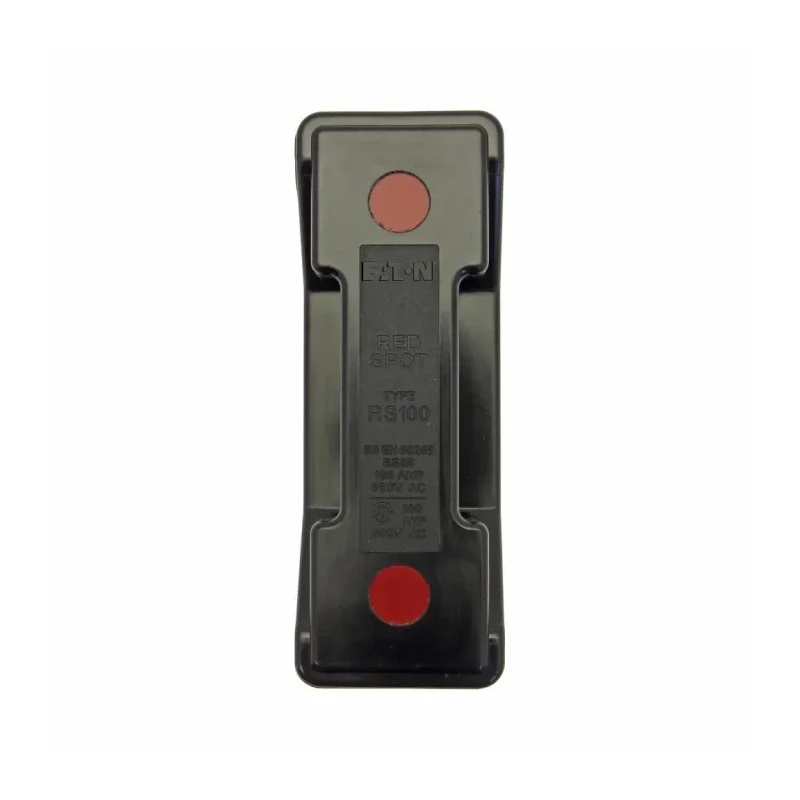

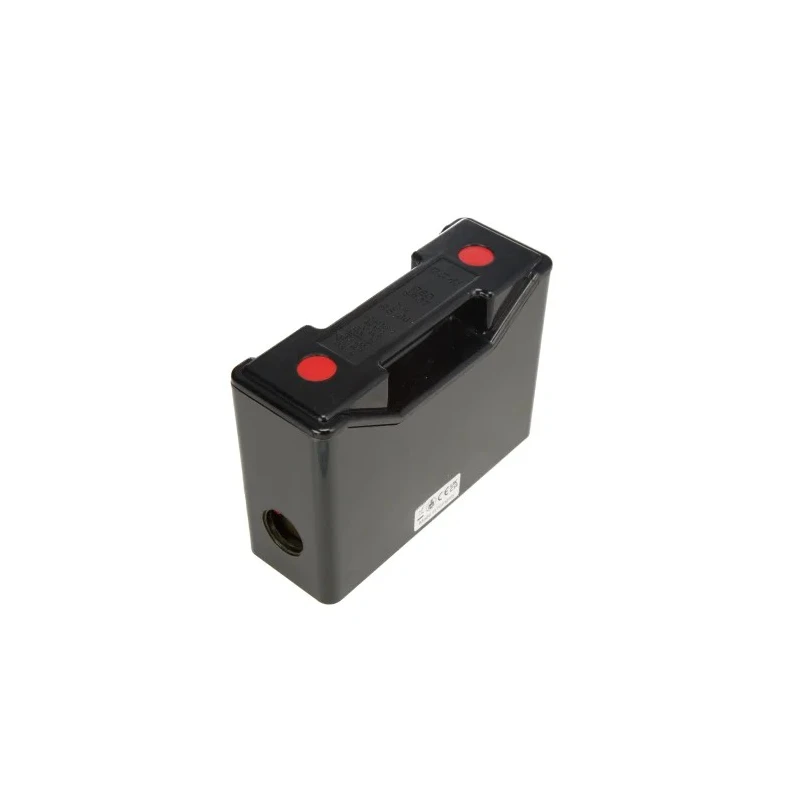

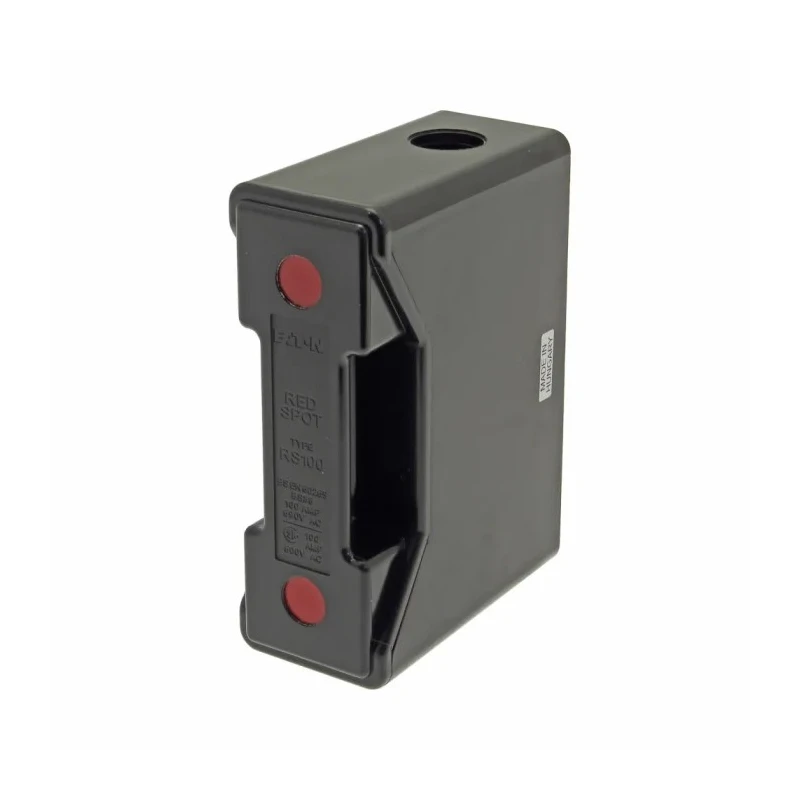

Eaton 100A Rail Mount Fuse Holder for A4 Fuse, 1 Pole, 690V AC RS100H

Eaton RS100H Rail Mount Fuse Holder is a high-quality electrical component designed for secure accommodation of A4 size fuses. It supports a single pole configuration with a 100 ampere current rating and operates reliably at 690 volts AC, making it suitable for demanding industrial and commercial power distribution systems.

The fuse holder features a robust thermoplastic housing that provides excellent electrical insulation and mechanical durability. Its anti-vibration design with a large contact surface ensures that the fuse remains firmly connected even in environments with heavy machine vibrations, enhancing system reliability and safety.

This product mounts easily on a standard DIN 35 mm rail, facilitating neat and efficient installation inside electrical control panels and distribution boards. The front-connected terminal type offers straightforward and accessible wiring options, reducing installation time and maintenance effort.

With an IP20 ingress protection rating, the fuse holder safeguards against solid particles larger than 12 mm, such as fingers or tools, while the fully shrouded terminals prevent accidental contact, ensuring user safety during operation and maintenance.

Key features include compatibility with British standard (BS88) A4 fuses, including standard and motor-rated types, making it versatile for various applications. The taper-shank fixing screws provide ease of fuse replacement without requiring complete removal of the holder, minimizing downtime.

Typical industrial applications include control gear, power distribution, and circuit protection in manufacturing plants, commercial electrical installations, and automation systems. Eaton's Bussmann series fuse holders, including this RS100H model, are recognized for their reliability, safety, and adherence to IEC 60269-2 standards.

Compatible with British standard A4 fuse links for reliable circuit protection. Rated for 100A current and 690V AC voltage for heavy-duty electrical applications. Features anti-vibration design for stability in industrial environments.

Front connected terminal type ensures easy wiring and maintenance. Mounts on DIN 35 mm rails for versatile installation in control panels. Constructed with robust thermoplastic housing for high dielectric strength and insulation.

IP20 rated ingress protection safeguards against solid objects over 12 mm. Taper-shank fixing screws allow easy fuse replacement without disassembly. Compatible with both standard and motor-rated fuses for versatile use.

Ideal for commercial and industrial electrical safety and circuit protection systems. Set contains 1 piece Eaton RS100H Rail Mount Fuse Holder compatible with A4 fuses, single pole, 100A, 690V AC. Browse more Fuse Holders and Electrical Components from Eaton to meet your industrial and commercial electrical protection needs at EnvMart.
