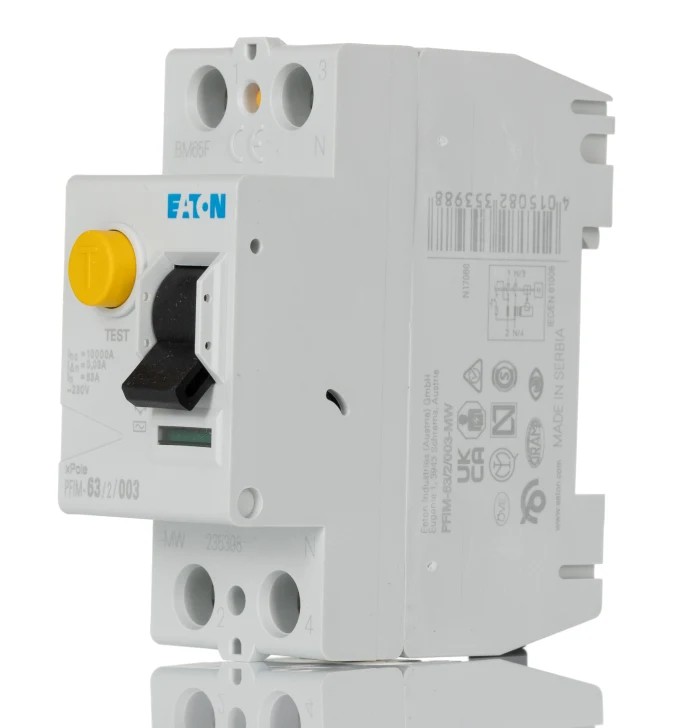

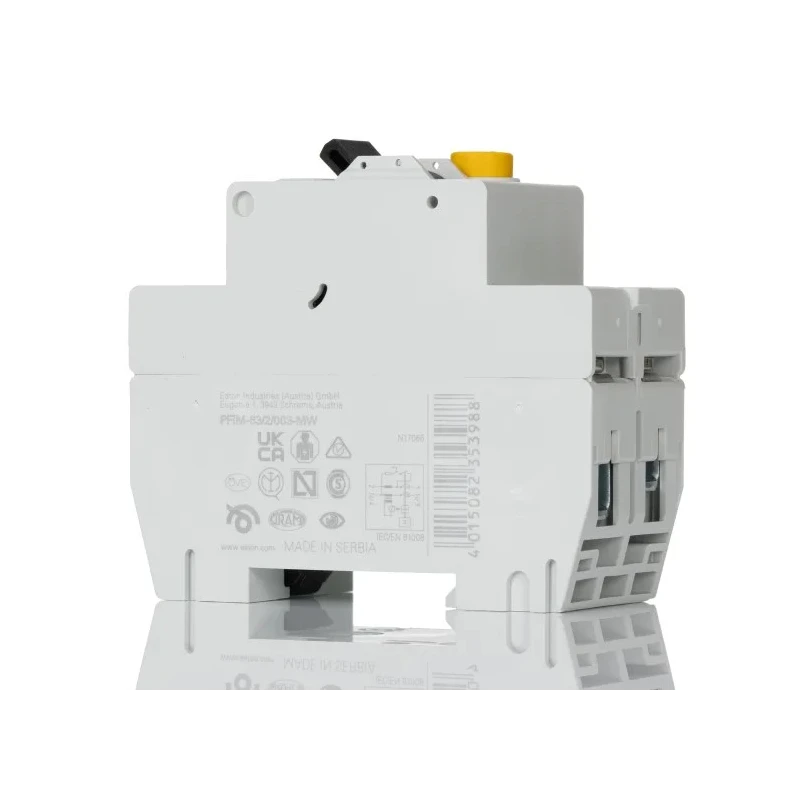

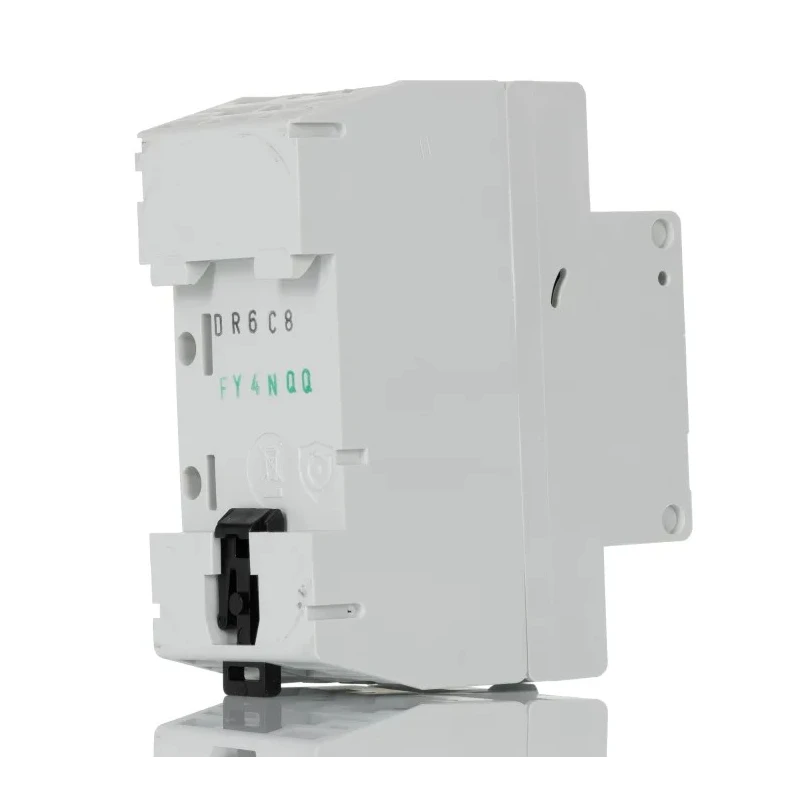

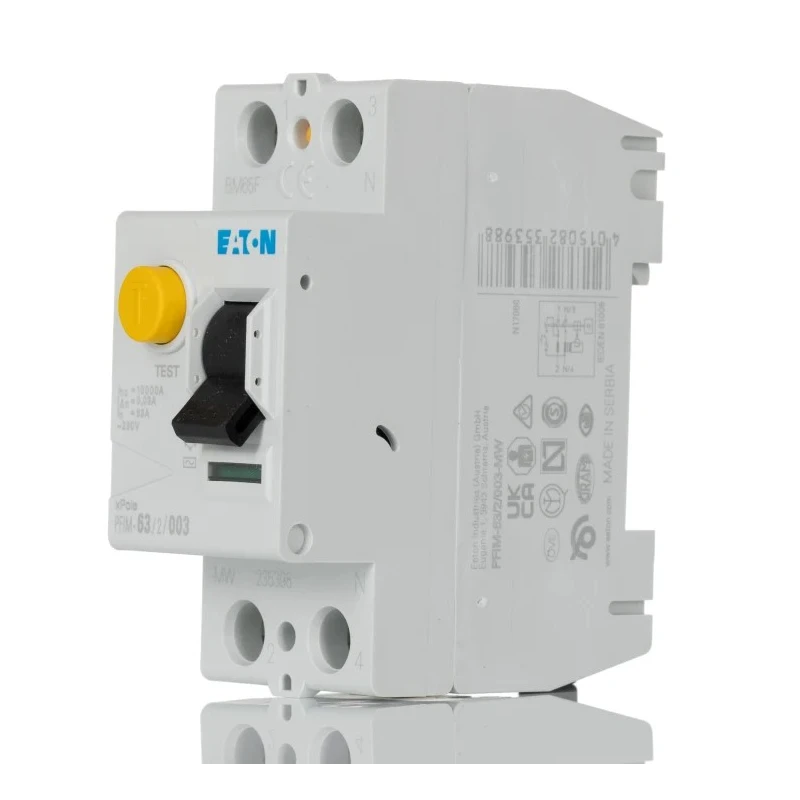

Eaton PFIM Series Residual Current Device, 63A, 2-Pole, 30 mA Trip Sensitivity, Type AC, 10 kA 235398 PFIM-63/2/003-MW

The Eaton 235398 PFIM-63/2/003-MW is a high-performance Residual Current Device (RCD) featuring a 63A current rating and a 2-pole configuration designed for reliable earth leakage protection. It detects residual currents as low as 30 mA Type AC and promptly interrupts the circuit to prevent shock hazards, electrical fires, and equipment damage.

Engineered for commercial and residential electrical installations, this device aligns with IEC/EN 61008 standards. It offers a robust breaking capacity of 10 kA that ensures safe handling of short circuits and fault currents, delivering enhanced system protection.

Mounted easily on a DIN rail, the compact form factor of 70mm (W) x 80mm (H) x 70.5mm (D) fits tightly into electrical panels with limited space. The screw clamp terminals streamline installation by allowing secure connections without the need for complex tools.

The toggle switch reset actuator provides straightforward manual reset functionality after the device trips, ensuring fast restoration of power when faults are cleared. Its instantaneous break time further enhances safety by minimizing exposure to dangerous leakage currents.

This Eaton PFIM series RCD supports a dual rated AC voltage of 230 V and 400 V, accommodating different power system requirements. Its electromagnetic tripping mechanism guarantees precise and consistent operation under fault conditions.

With a temperature operating range broadly suitable for various environments, and an IP20 rating ensuring protection from touch and foreign objects larger than 12mm, this RCD is safe to use in challenging electrical settings. It is ideal for protecting circuits with inverters, LED drivers, and other heavy-duty applications.

Designed for industrial, commercial, and residential electrical safety applications. Ensures personal safety from electrical shock and system protection from electrical faults. Easy installation and maintenance with DIN rail mounting and screw terminals.

Meets international standards for Residual Current Devices. Compact and robust design suitable for various environments. Explore the Eaton category for more electrical protection devices at EnvMart.
