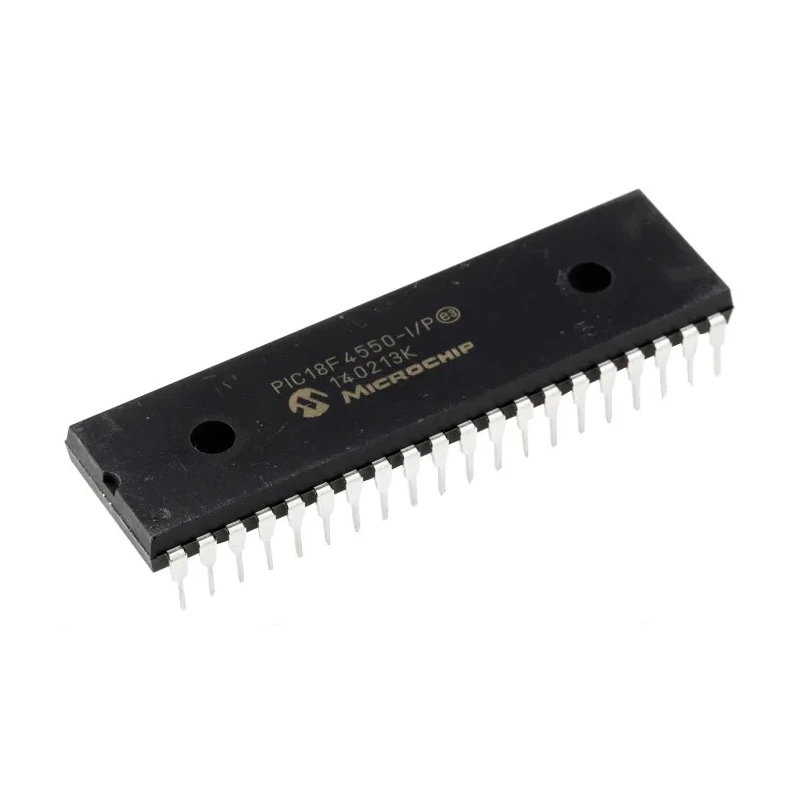

Microchip 8-bit PIC Microcontroller 48 MHz, 32 kB Flash, 256 B RAM, 40-Pin PDIP PIC18F4550-I/P

Microchip PIC18F4550-I/P is a high-performance 8-bit PIC microcontroller operating at 48 MHz, delivering 32 kB of program memory and 256 bytes of RAM. Housed in a 40-pin PDIP package, this device is designed for a wide range of embedded applications requiring robust processing capabilities and versatile interfacing.

The PIC core architecture with a RISC instruction set ensures high efficiency and deterministic execution. It supports a SPI interface, allowing communication with various external peripherals and modules. The device features 36 programmable input/output pins and 2 analogue comparators, enhancing its adaptability for complex signal processing.

Power supply requirements are flexible, with a minimum voltage of 1.8V and a maximum of 5.5V, suitable for battery-operated and industrial power systems. The microcontroller supports 13 channels of 10-bit ADCs for accurate analog data acquisition, and 4 timers enable precise event counting and scheduling operations.

The robust thermal operating range from -40°C to 85°C supports industrial and automotive environments. The maximum power dissipation is rated at 800 mW, allowing stable performance under varying loads. The compact physical form factor, measuring just over 53 mm in length, makes it well-suited for PCB layouts with space constraints.

This product is ideal for embedded development in industrial control, automotive electronics, consumer devices, and communication systems. It combines a balance of low power consumption, high clock speed, and extensive memory resources.

Equipped with a PIC core architecture and RISC instruction set for efficient processing. Supports SPI interface type suitable for multiple peripheral connections. Operating voltage range from 1.8V to 5.5V ensures versatile power applications.

Includes 36 programmable I/Os and 2 analogue comparators for flexible input/output options. Integrated 13 10-bit ADC channels for precise analog signal conversion. Has 4 internal timers to support complex timing and control tasks.

Program memory is FLASH type with 32 kB maximum expanded memory size. Thermal operating range from -40°C to 85°C makes it reliable for industrial environments. Compact physical size with dimensions 53.21mm length, 14.73mm width, and 4.95mm height.

Maximum power dissipation rating of 800mW enables stable operation under load. Explore a wide range of Microchip Microcontrollers and other semiconductor components at EnvMart for your industrial, automotive, and embedded application needs.
