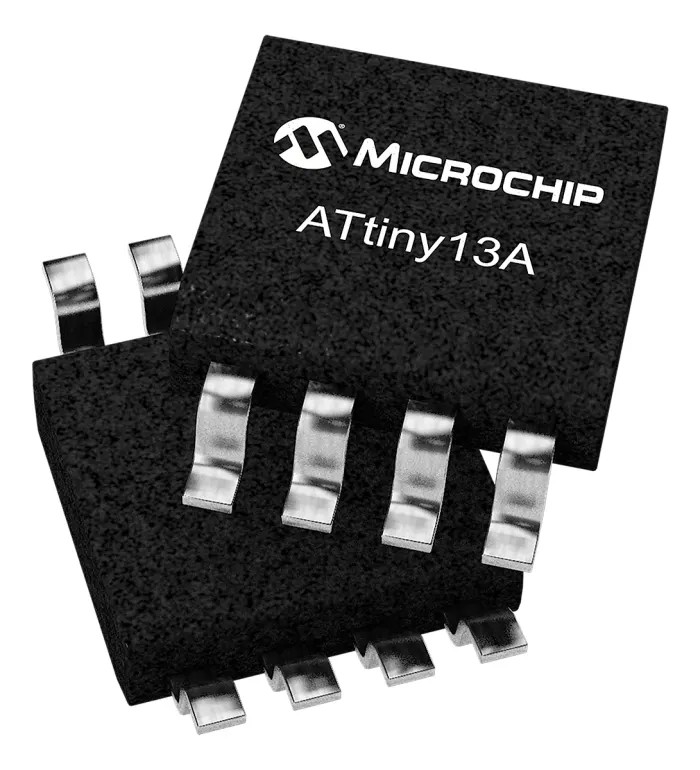

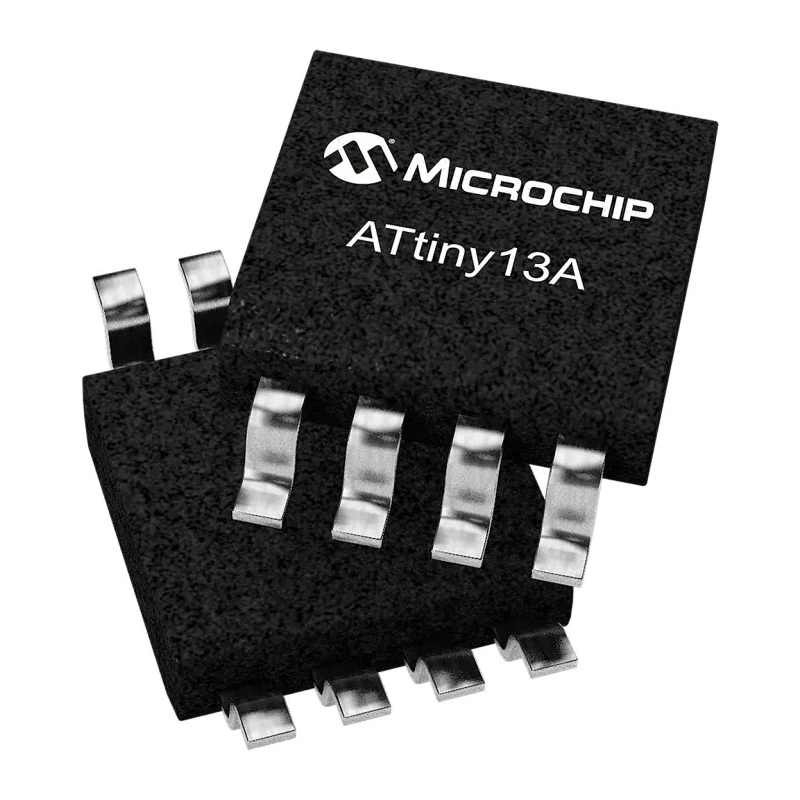

Microchip 8-Bit AVR ATTINY13 Microcontroller 20 MHz, 1kB FLASH, 8-Pin SOIJ ATTINY13-20SU

Microchip ATTINY13-20SU 8-bit AVR Microcontroller features an AVR core designed for high performance and low power consumption suitable for embedded system applications in industrial and consumer electronics.

This microcontroller operates at a maximum clock frequency of 20 MHz and provides 1kB of flash program memory to store firmware and application code. It includes 64 bits of RAM to handle temporary data critical to program execution. The integrated SPI interface enables fast serial communication with other devices.

Operating voltage ranges between 2.7V to 5.5V, which allows compatibility with a variety of power sources and battery-powered devices. The microcontroller is housed in a compact 8-pin SOIJ package, making it ideal for space-constrained designs.

With 6 programmable I/O pins and 4 10-bit ADC channels, this device supports versatile input and output interfacing needs. The operating temperature span from -40°C to 85°C makes it reliable for use in harsh and industrial environments.

The ATTINY13-20SU integrates one timer and an analog comparator, enhancing its capabilities for timing-sensitive and analog signal processing tasks. The flash memory ensures that the program code can be updated or modified as needed throughout the device lifecycle.

The microcontroller uses an 8-bit AVR core architecture optimized for power efficiency and performance. It features 1kB of flash program memory for embedded applications. The maximum clock frequency is 20 MHz, suitable for fast and efficient processing.

The device supports SPI interface type for communication and control. Operating voltage ranges from 2.7V to 5.5V, allowing flexible power supply options. It includes 6 programmable input/output pins and 4 analog-to-digital converters with 10-bit resolution.

The microcontroller is surface-mount mounted in an 8-pin SOIJ package with dimensions 5.35mm length and 5.4mm width. Operating temperature range is from -40°C to +85°C, ensuring reliable performance in harsh environments.

The device has one timer and one analog comparator for timing and signal comparison applications. Program memory type is FLASH, allowing for reprogramming and updates. This microcontroller is suitable for industrial automation, consumer electronics, automotive systems, HVAC control, embedded instrumentation, and prototyping applications.
