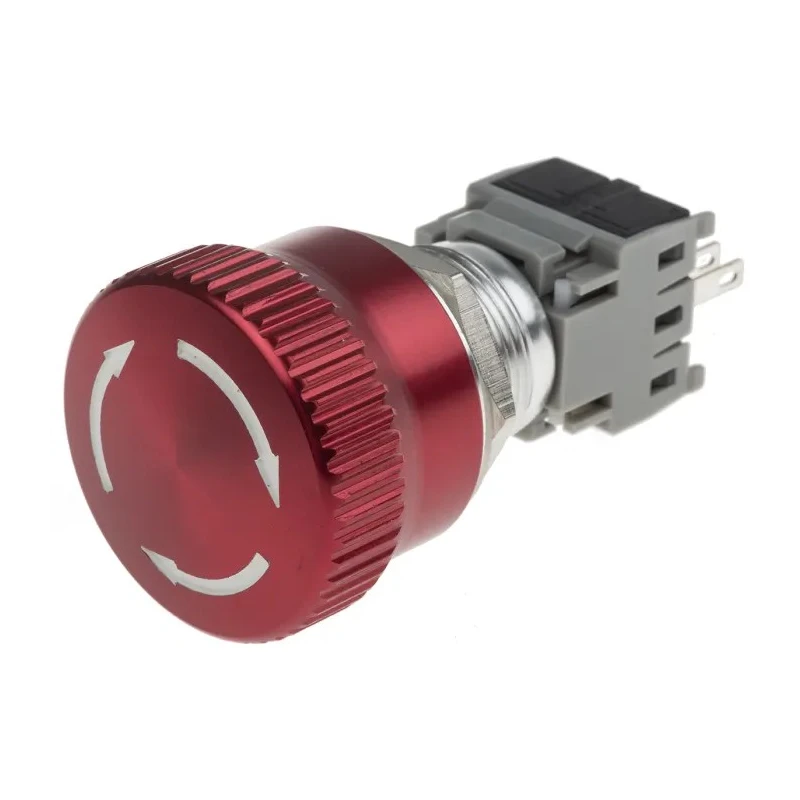

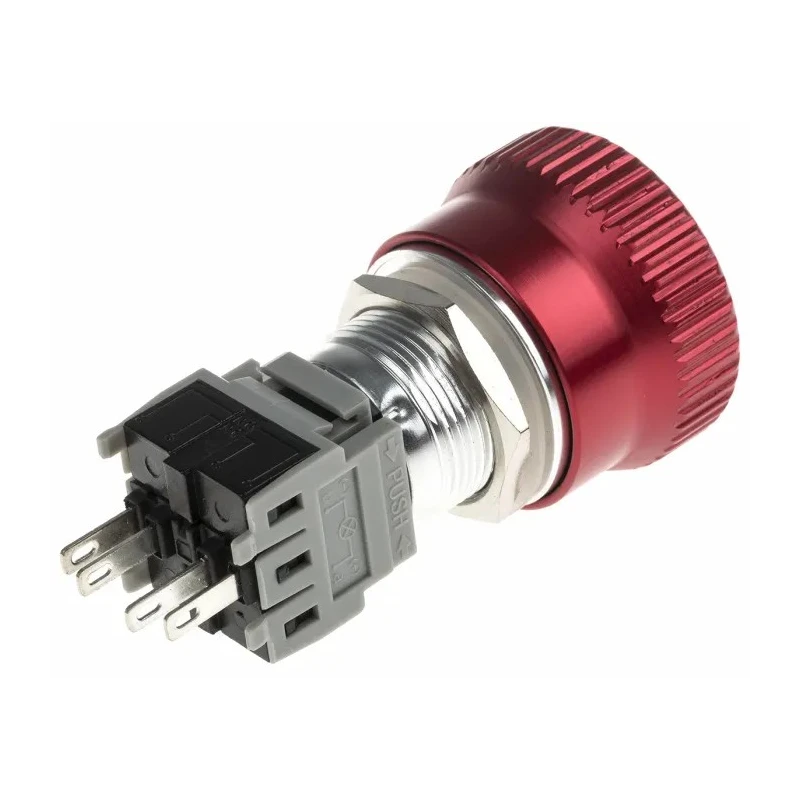

RS PRO Twist to Release Emergency Stop Push Button, Panel Mount, 19 mm Cutout, SPDT, IP65 877-1952

RS PRO 877-1952 is a high-quality Emergency Stop Push Button designed for panel mounting applications requiring reliable and rapid safety disengagement. Featuring a 19 mm cutout diameter, this push button employs a twist to release actuation mechanism to prevent accidental resets and ensure deliberate operation.

The switch is constructed from durable zinc alloy housing combined with an acetal actuator, providing enhanced impact resistance rated at IK 02 and protection against dust and water ingress with an IP65 front of panel rating. These features make the push button suitable for demanding industrial and automation environments.

This push button switch provides a Single Pole Double Throw (SPDT) contact configuration, rated at 5A contact current and 250V AC contact voltage, suitable for controlling various emergency stop circuits. The solder terminal type and On-On switch configuration facilitate secure electrical connections and control.

Certified under the RoHS directive, the product ensures compliance with environmental regulations, and its red color enables quick visual identification during emergency scenarios. Manufactured in Taiwan, it meets consistent quality and performance standards.

Applications for the RS PRO 877-1952 include use in industrial automation systems, machinery safety controls, electrical control panels, and other environments requiring immediate and reliable emergency shutdown capabilities. The robust build ensures long service life even under harsh conditions.

Features twist to release actuation for enhanced safety. Constructed with zinc alloy housing for durability and anti-vandal resistance. Rated for 5A contact current and 250V AC contact voltage. Offers impact resistance of IK 02 and front panel protection rated at IP65.

Equipped with solder terminals and an On-On switch configuration. Certified RoHS compliant ensuring environmental safety standards. Colour coded red for emergency identification. Designed and manufactured in Taiwan, Province Of China.

This Emergency Stop Push Button is ideal for use in electrical automation, industrial safety controls, and other commercial or manufacturing applications demanding high reliability and protection levels. Explore more RS PRO industrial electrical components in the Environmental Mart catalog.
