ABB Monitoring Relay 1 Phase DPDT DIN Rail Mount 24 V DC 110-240 V AC Model 1SVR730712R2200 CM-MSS.33S
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Height | 85.6mm |
| Length | 103.7mm |
| Model | 1SVR730712R2200 CM-MSS.33S |
| IP Rating | IP50, IP20 |
| Mount Type | DIN Rail |
| Series | CM-MSS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Sub Type | PTC |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | UL |
| Contact Current | 3.7A |
| Supply DC Voltage | 24 V dc |
| ABB Temperature Monitoring Relay, DPDTBrand | ABB |
| ABB Monitoring Relay, DPDT, DIN Rail, 24 V dc 24V acBrand | ABB |
Key Features
- Designed for 1 phase electrical monitoring with DPDT contact configuration.
- Supports a wide supply voltage range including 24 V DC and 110-240 V AC.
- Durable DIN rail mounting ensures easy installation and secure placement.
- Operates effectively within -25°C to +60°C temperature range.
- Compact dimensions allow installation in tight electrical enclosures.
- Equipped with screw terminals for secure and reliable wiring connections.
- IP50 and IP20 rated for protection against limited dust ingress.
- Mechanical lifespan rated up to 30 million cycles for long service life.
Product Description

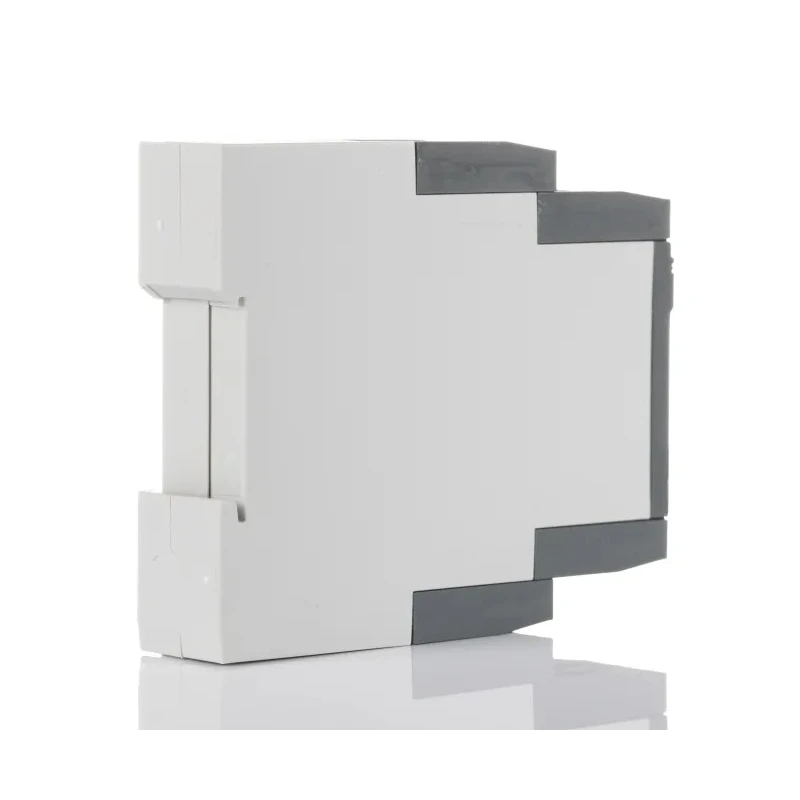

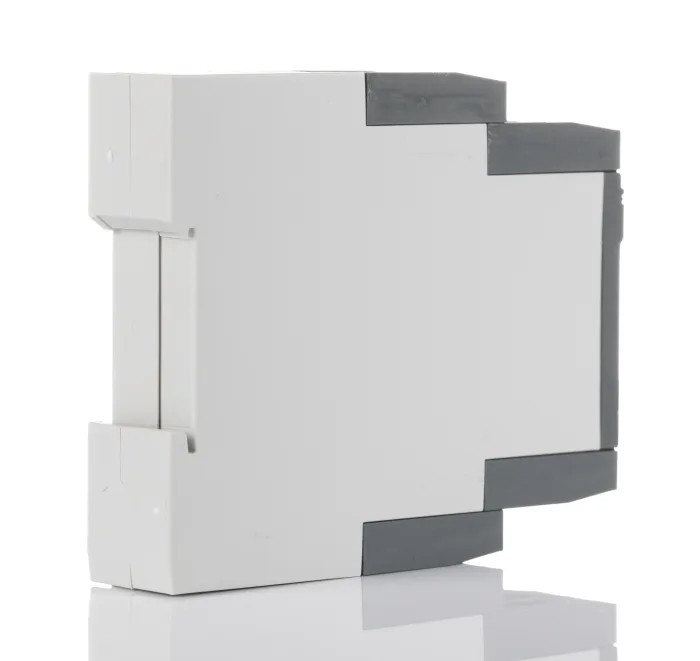

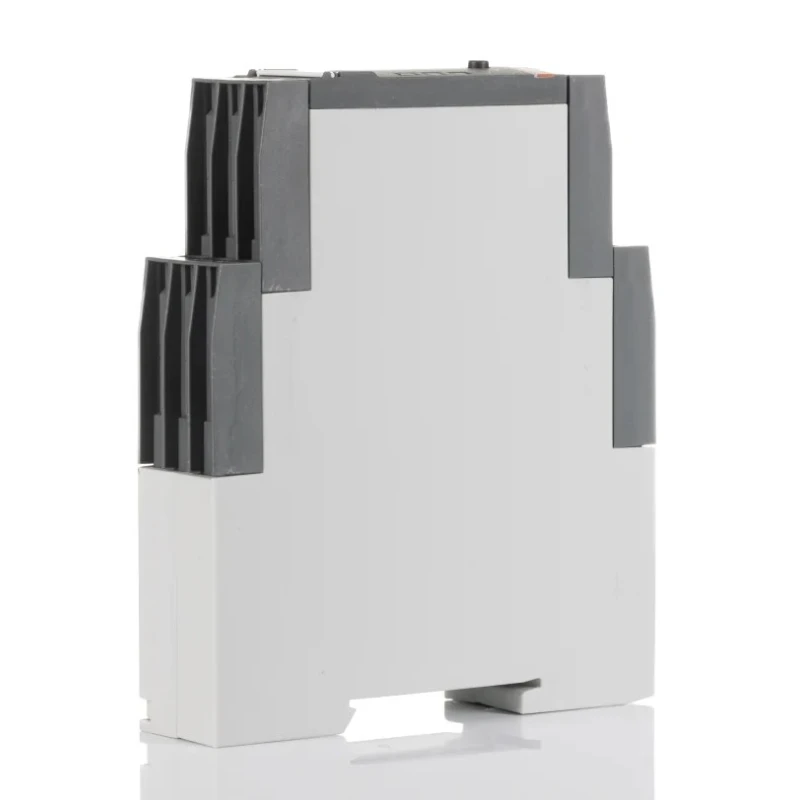

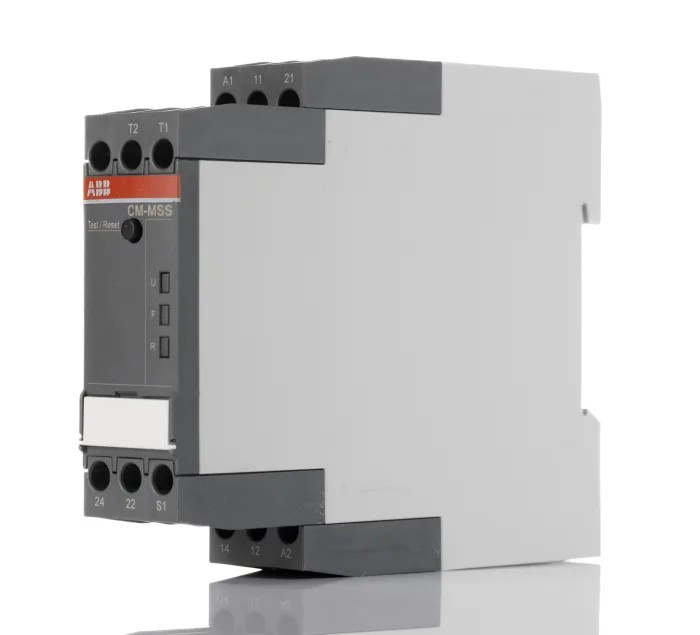

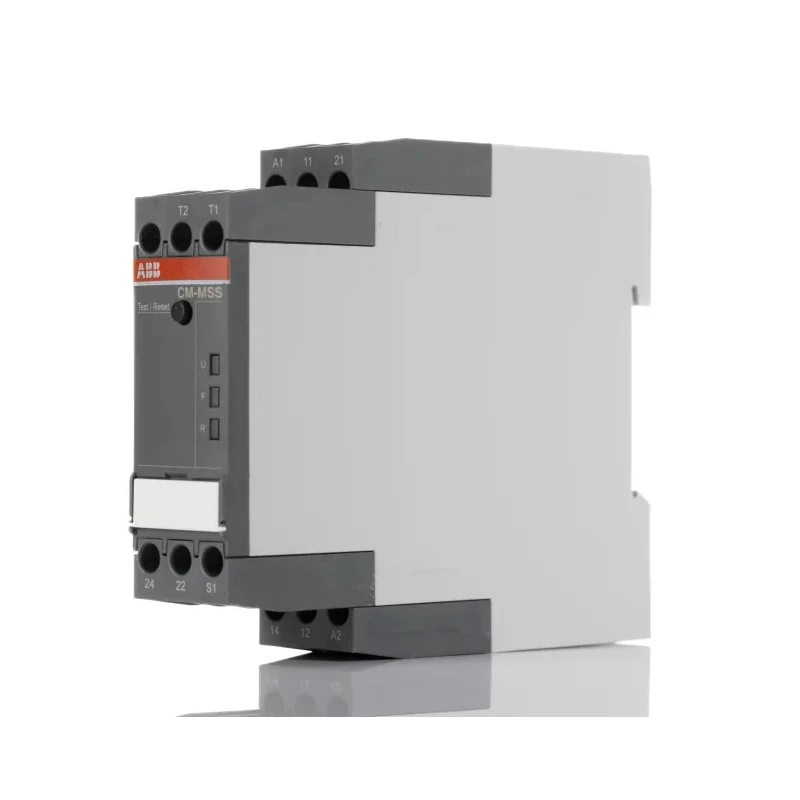

ABB 1SVR730712R2200 CM-MSS.33S Monitoring Relay is engineered for precise and reliable temperature protection of single-phase motors and electrical equipment. Featuring a DPDT contact configuration and DIN rail mounting, this relay supports both 24 V DC supply and a broad AC voltage range (110 V AC to 240 V AC), making it versatile for various industrial and commercial applications.
The relay operates within an extended ambient temperature range of -25°C to +60°C, suitable for harsh environments such as paper mills and HVAC systems. Its compact size (103.7 mm length, 22.5 mm width, and 85.6 mm height) fits easily into electrical panels with limited space.
The device offers robust protection, disconnecting the motor to prevent overheating based on thermistor inputs. Screw terminal connections enhance wiring security and ease of installation. The housing's IP50 and IP20 ratings provide effective dust protection, contributing to reliable long-term operation.
The mechanical endurance of 30 million cycles ensures high durability and longevity in demanding industrial settings. This ABB monitoring relay complies with UL standards, confirming its safety and performance credentials.
Designed for 1 phase electrical monitoring with DPDT contact configuration. Supports a wide supply voltage range including 24 V DC and 110-240 V AC. Durable DIN rail mounting ensures easy installation and secure placement.
Operates effectively within -25°C to +60°C temperature range. Compact dimensions allow installation in tight electrical enclosures. Equipped with screw terminals for secure and reliable wiring connections. IP50 and IP20 rated for protection against limited dust ingress.
Mechanical lifespan rated up to 30 million cycles for long service life. Ideal for applications in HVAC equipment, paper mills, and domestic appliances. Compliant with UL standards ensuring safety and quality assurance.
This Monitoring Relay is essential for motor protection systems in electrical automation, HVAC, manufacturing, and industrial water treatment installations. Choose ABB products like the 1SVR730712R2200 CM-MSS.33S for dependable and efficient operation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
It operates effectively within a temperature range of -25°C to +60°C, making it suitable for various industrial environments.
The relay supports a wide supply voltage range including 24 V DC and 110-240 V AC, providing flexibility for different applications.
The compact dimensions are 103.7 mm in length, 22.5 mm in width, and 85.6 mm in height, allowing for installation in tight spaces.
It is designed for DIN rail mounting, ensuring easy installation and secure placement in electrical panels.
It is equipped with screw terminals for secure and reliable wiring connections, enhancing installation safety.
The relay has a mechanical lifespan rated up to 30 million cycles, indicating its durability for long-term use in industrial settings.
This unit has IP50 and IP20 ratings, providing protection against limited dust ingress, suitable for various environments.
Yes, it complies with UL standards, confirming its safety and performance credentials in electrical applications.
It is ideal for applications in HVAC equipment, paper mills, and domestic appliances, particularly for motor protection systems.
The contact current rating for this model is 3.7A, making it suitable for various electrical monitoring tasks.
This model belongs to the CM-MSS series, which is designed for temperature monitoring and protection of electrical equipment.
