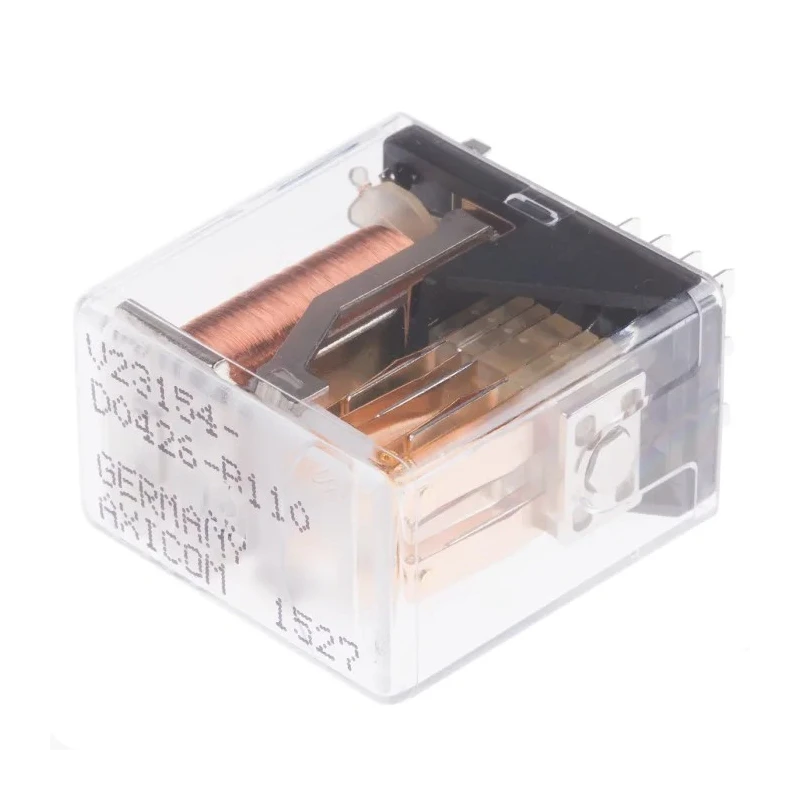

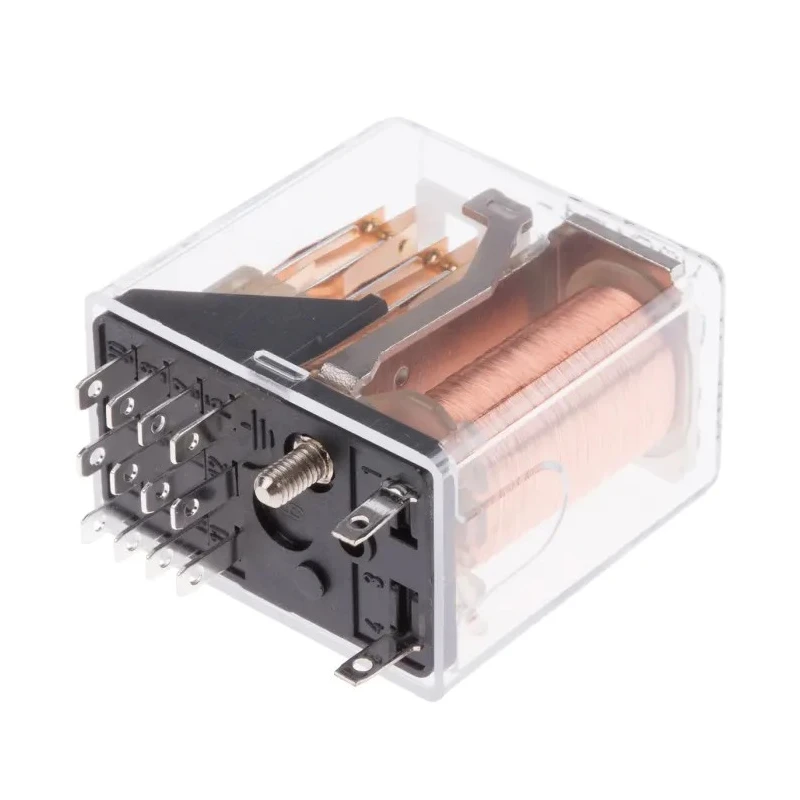

TE Connectivity Surface Signal Relay 48V DC Coil 2A Switching Current 4PST Contact Configuration V23154D 426B110 5-1393807-7
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Height | 30mm |
| Length | 30mm |
| Model | V23154D 426B110 5-1393807-7 |
| Width | 19mm |
| Mount Type | Surface |
| Contact Material | Silver Nickel Alloy |
| Series | Cradle N |
| Maximum Operating Temperature | 70°C |

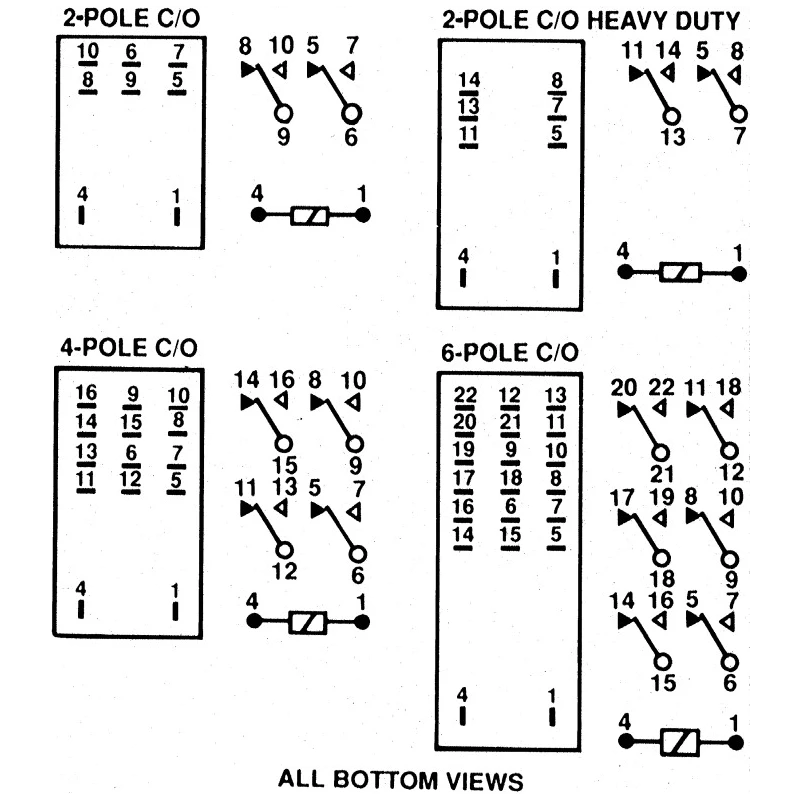

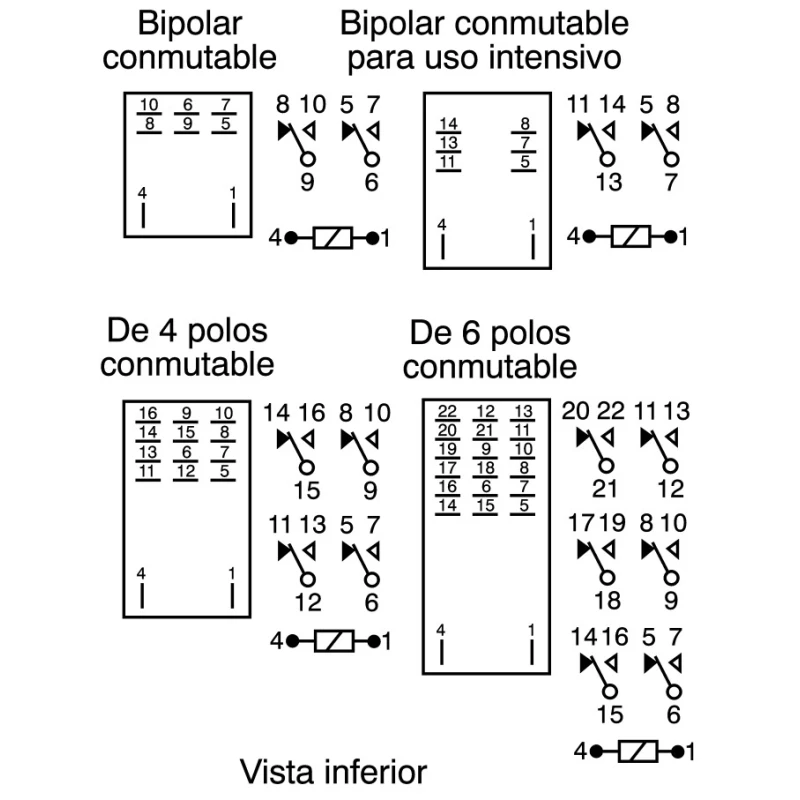

| Contact Configuration | 4PST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 2500Ω |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 150V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 800mW |
Key Features
- Features a 4PST contact configuration ensuring robust connectivity.
- Surface mount type for versatile PCB integration.
- Supports switching AC voltage up to 125V AC and DC voltage up to 150V DC.
- Operates reliably between -40°C to 70°C ambient temperature.
- Constructed with silver nickel alloy contacts for enhanced conductivity and durability.
- Coil resistance is 2500Ω with coil power consumption rated at 800mW.

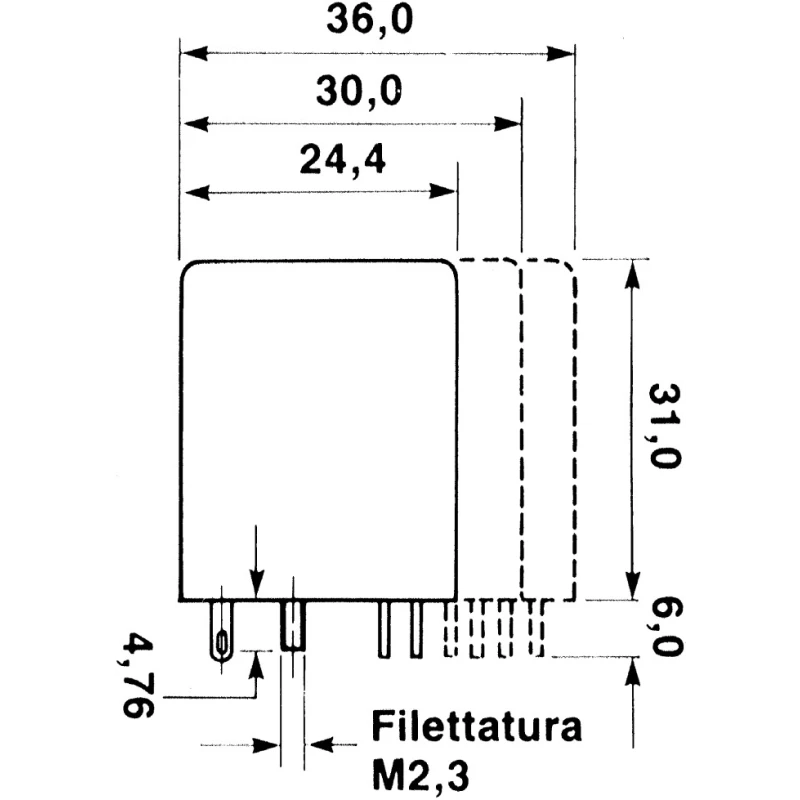

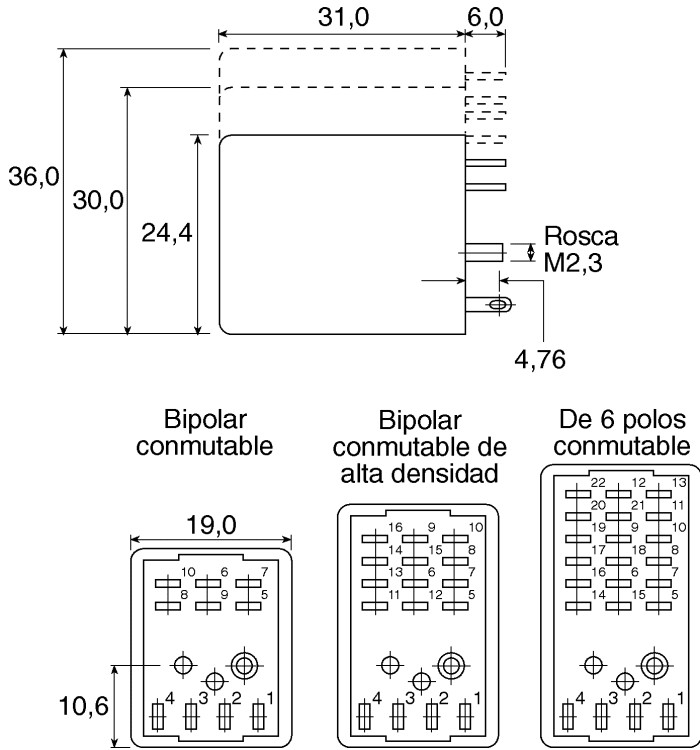

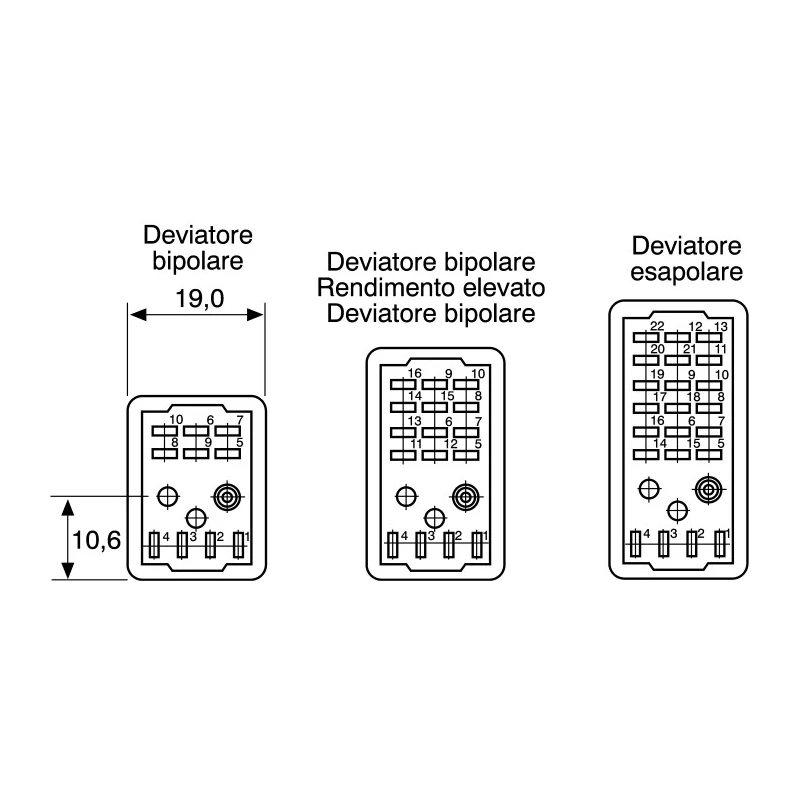

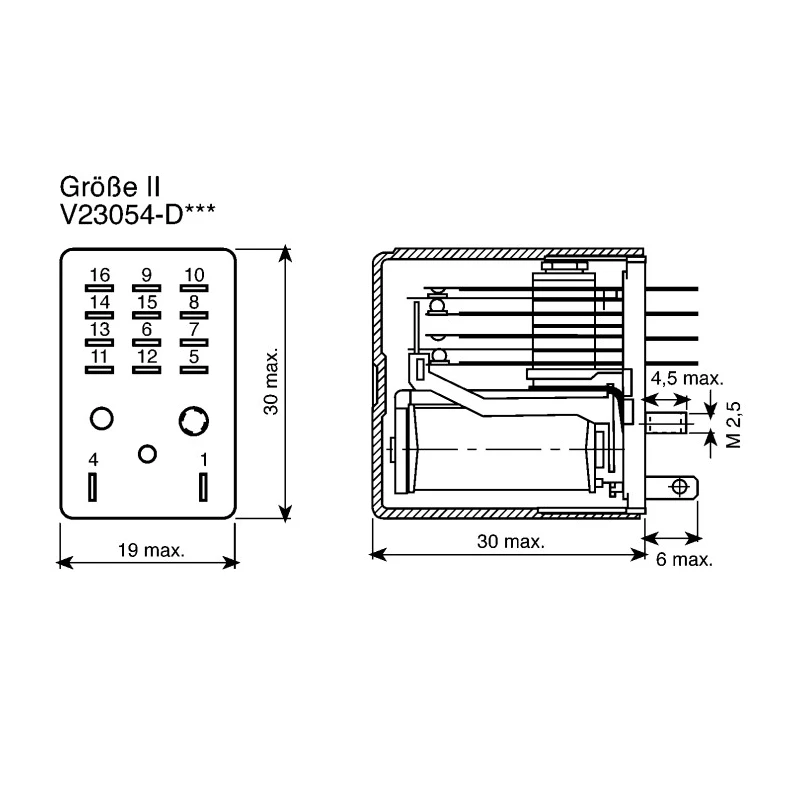

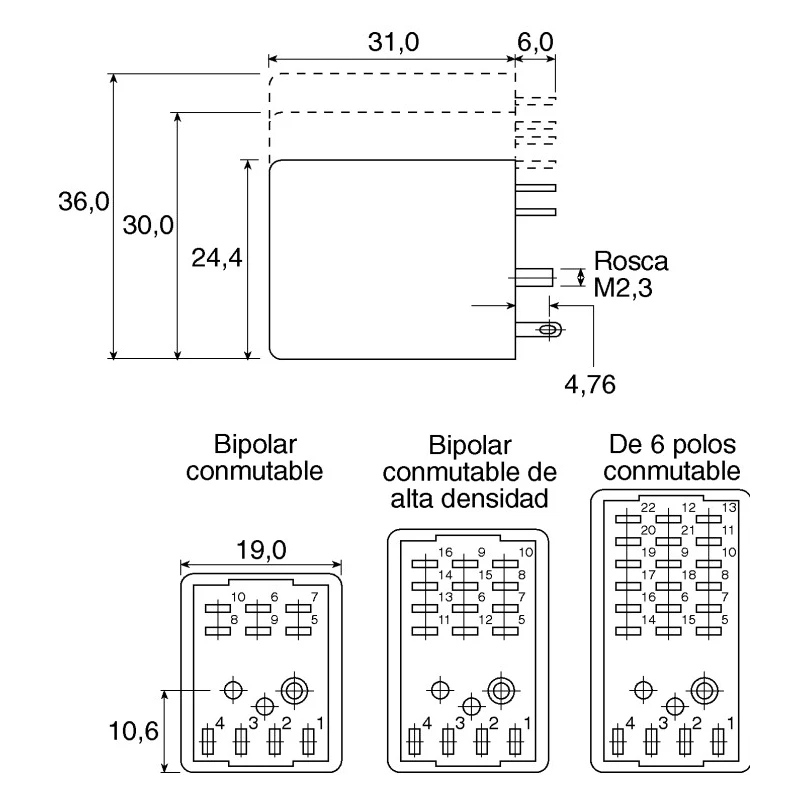

- Compact dimensions of 30mm height, 30mm length, and 19mm width.
- Terminals designed for through hole mounting ensuring stable connections.
Product Description
TE Connectivity V23154D 426B110 5-1393807-7 Surface Signal Relay is a high-performance industrial relay featuring a 48V DC coil and a 4PST contact configuration. It supports a switching current of 2A, suitable for telecommunications, test and measurement equipment, and various automation applications. Its surface mount design allows for ease of integration on PCBs, providing reliable switching under diverse conditions.
The relay supports switching AC voltages up to 125V AC and DC voltages up to 150V DC, making it versatile for a range of electrical circuits. Designed to operate in environments ranging from -40°C to 70°C, it withstands harsh industrial conditions with stable performance. Its contacts are made from silver nickel alloy, ensuring excellent conductivity and long service life.
With coil resistance of 2500Ω and power consumption at 800mW, this relay optimizes energy efficiency without compromising performance. The relay’s compact dimensions of 30mm height, 30mm length, and 19mm width make it suitable for space-constrained assemblies. Through hole terminal type ensures mechanically secure mounting.
This relay complies with the Restriction of Hazardous Substances (RoHS) directive, assuring environmentally responsible manufacturing. Originating from Germany, it reflects high manufacturing quality standards and reliability.
Ideal for industrial, laboratory, telecommunications, automation, and manufacturing applications, this signal relay is a reliable choice for switching small to moderate loads requiring precise and repeated operations.
Features a 4PST contact configuration ensuring robust connectivity. Surface mount type for versatile PCB integration. Supports switching AC voltage up to 125V AC and DC voltage up to 150V DC. Operates reliably between -40°C to 70°C ambient temperature.
Constructed with silver nickel alloy contacts for enhanced conductivity and durability. Coil resistance is 2500Ω with coil power consumption rated at 800mW. Compact dimensions of 30mm height, 30mm length, and 19mm width.
Terminals designed for through hole mounting ensuring stable connections. Complies with RoHS standards for environmental safety. Manufactured in Germany maintaining high-quality standards. Explore more Signal Relay solutions and components at EnvMart for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 48V DC.
It supports a maximum switching voltage of 125V AC and 150V DC.
This relay features a 4PST contact configuration, ensuring robust connectivity.
The dimensions are 30mm in height, 30mm in length, and 19mm in width.
It has a switching current capacity of 2A.
The coil resistance is 2500Ω.
The coil power consumption is rated at 800mW.
It operates reliably between -40°C to 70°C ambient temperature.
This model uses a surface mount type for versatile PCB integration.
The contacts are constructed from silver nickel alloy for enhanced conductivity.
Yes, it complies with the RoHS standards for environmental safety.
This relay is manufactured in Germany, reflecting high manufacturing quality standards.
