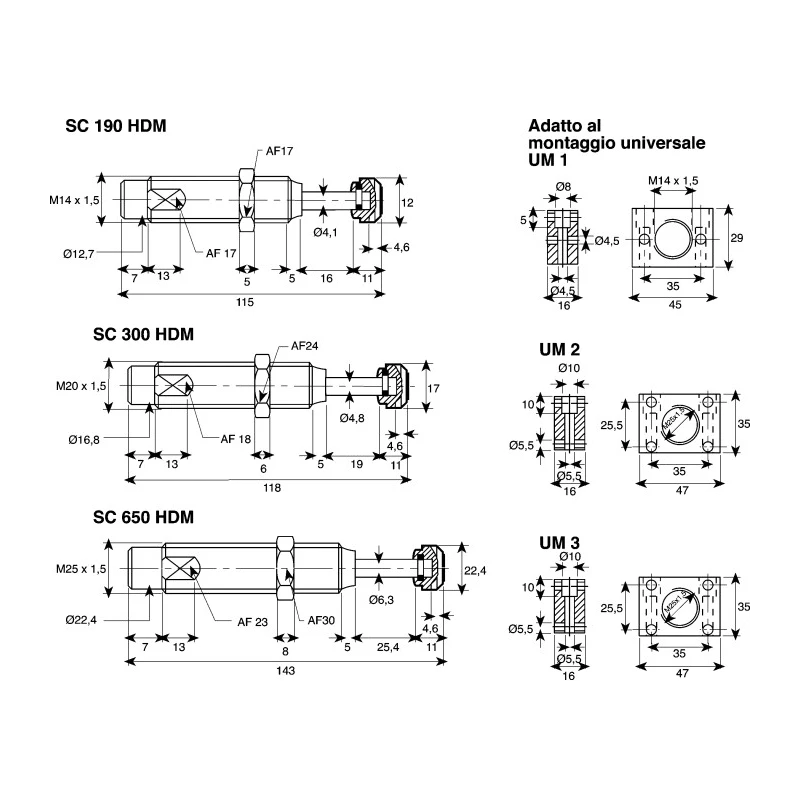

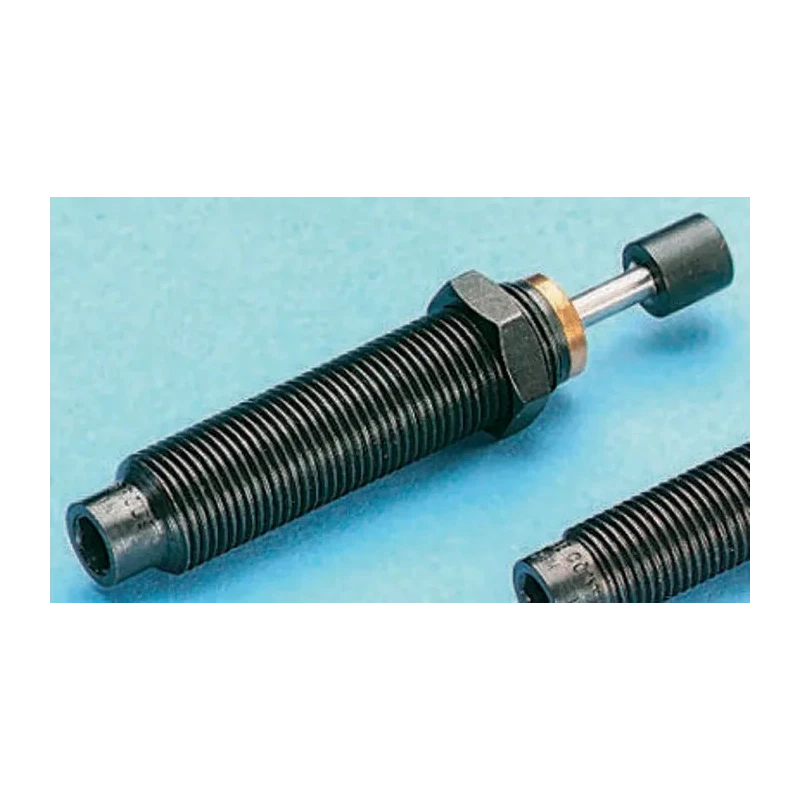

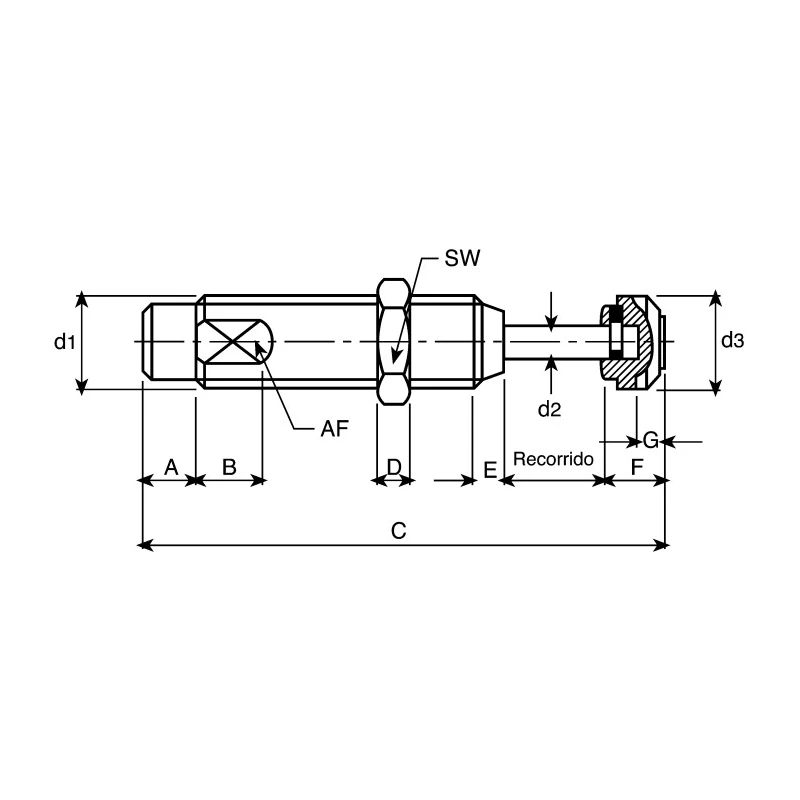

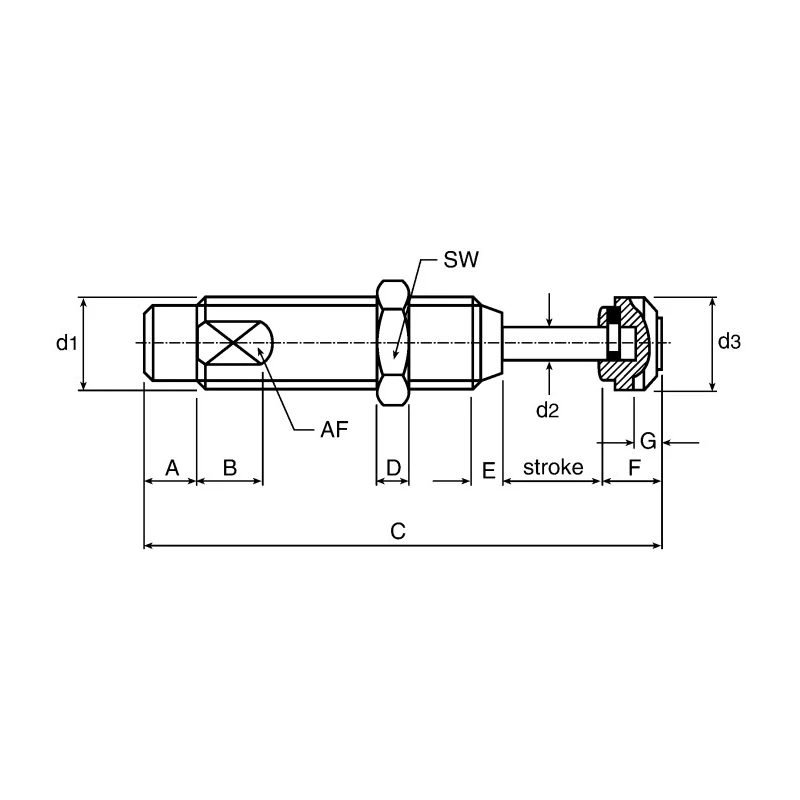

ACE Shock Absorber , M20 x 1.5 Thread Size, 87.4 mm Body Length, 117.4 mm Overall Length, Stroke Length 19.05 mm SC300EUM-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | ACE |
| Length | 87.4mm |
| Model | SC300EUM-1 |
| Overall Length | 117.4mm |
| Series | SC |
| Maximum Operating Temperature | 66°C |
| Thread Size | M20 x 1.5 |
| Minimum Operating Temperature | 0°C |
| Stroke Length | 19.05mm |
| Thread Standard | UNF |
| Maximum Energy Capacity Per Cycle | 33Nm |
| Maximum Return Force | 10N |
| Maximum Energy Capacity Per Hour | 45000Nm |
Key Features
- Steel body with Weartec-Plus finish ensures durability in harsh environments.
- Hardened stainless steel piston rod with noise suppression features reduces operational noise.
- Integral mechanical stop at the front end enhances impact protection.
- Operating temperature range from 0°C to 66°C suitable for various industrial conditions.
- Maximum energy capacity per hour is 45000 Nm and per cycle is 33 Nm.
- Stroke length of 19.05 mm with overall length of 117.4 mm for precise motion control.
- Self-compensating design for low initial impact reaction forces.
- Compatible with applications handling weights from 1.4 kg to 2088 kg.
Product Description
ACE SC300EUM-1 shock absorber features a robust M20 x 1.5 thread size and a compact body length of 87.4 mm with an overall length of 117.4 mm. Designed for pneumatic and hydraulic applications, it provides excellent energy absorption through its stroke length of 19.05 mm and a maximum energy capacity per hour of 45000 Nm.
Constructed with a steel body finished in Weartec-Plus for harsh environment resistance, the shock absorber utilizes a hardened stainless steel piston rod and hardened steel rod end button with insert to significantly suppress noise during operation. This self-compensating soft contact unit effectively handles weights ranging from 1.4 kg up to 2088 kg, making it suitable for a wide range of industrial uses.
The integral mechanical stop at the front end of the unit enhances safety by preventing over-travel. Its low initial impact reaction forces and operating temperature range of 0°C to 66°C ensure reliable performance in diverse working conditions. The shock absorber is designed for impact velocities between 0.15 m/s and 3.7 m/s.
This unit is interchangeable with the MA series adjustable range and offers universal mounting options along with stop collar attachments sold separately to facilitate flexible installation according to application needs. The thread standard is UNF, fitting typical industrial equipment requirements.
Steel body with Weartec-Plus finish for harsh environments. Hardened stainless steel piston rod and noise suppression design. Integral mechanical stop for enhanced safety. Operates effectively between 0°C to 66°C. Maximum energy capacity of 45000 Nm per hour and 33 Nm per cycle.
Stroke length of 19.05 mm with an overall length of 117.4 mm. Suitable for weights from 1.4 kg to 2088 kg. Self-compensating design for soft contact and low impact reaction. Interchangeable with MA series adjustable shock absorbers.
Universal mounting and stop collar attachments available separately.
This ACE shock absorber is ideal for industrial, manufacturing, pneumatic, hydraulic, and material handling applications requiring efficient energy absorption and durability. Browse more Shock Absorbers and pneumatic cylinder accessories at EnvMart for complete fluid power tool solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum energy capacity of this model is 45000 Nm per hour and 33 Nm per cycle.
This shock absorber has a body length of 87.4 mm and an overall length of 117.4 mm.
The stroke length of this shock absorber is 19.05 mm.
It features an M20 x 1.5 thread size, which follows the UNF thread standard.
The operating temperature range is from 0°C to 66°C.
It is designed to handle weights ranging from 1.4 kg to 2088 kg.
Yes, it utilizes a hardened stainless steel piston rod with noise suppression features to reduce operational noise.
An integral mechanical stop at the front end enhances safety by preventing over-travel during operation.
Yes, it is interchangeable with the MA series adjustable shock absorbers.
It is suitable for industrial, manufacturing, pneumatic, hydraulic, and material handling applications requiring efficient energy absorption.
It offers universal mounting options, with stop collar attachments available separately for flexible installation.
The maximum return force is 10 N.
