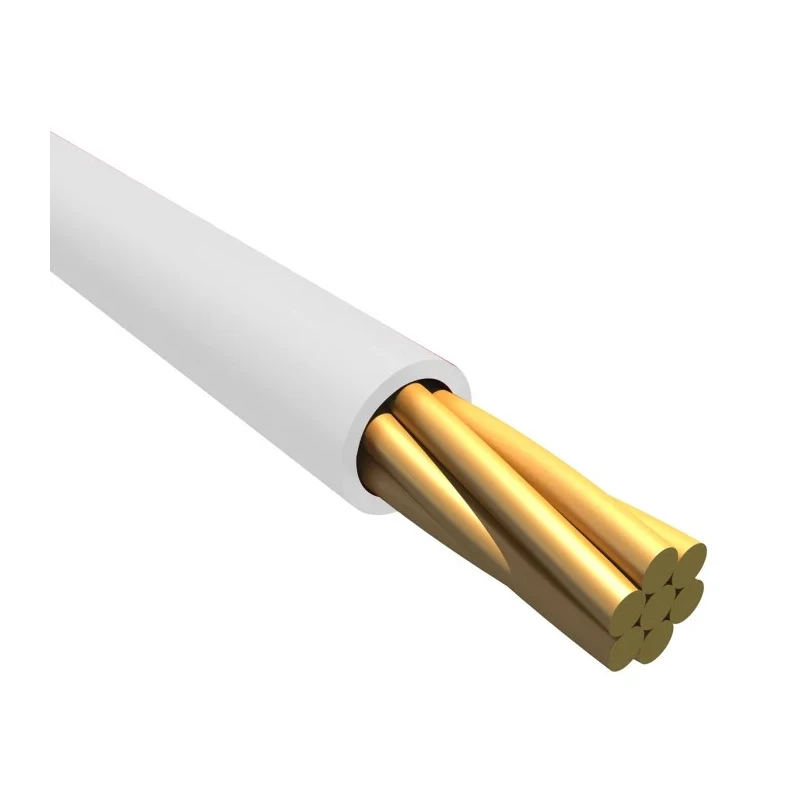

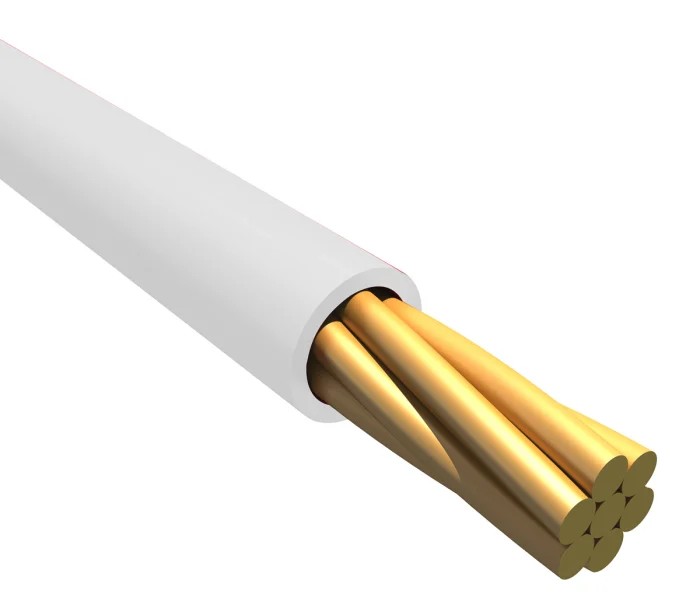

Alpha Wire Hook Up Wire PVC Series White 0.75 mm², 18 AWG, 1kV, 30 m Length, Polyvinyl Chloride Jacket 1565 WH005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Alpha Wire |
| Temperature range | -40°C to +80°C |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 1565 WH005 |
| Cable Length | 30m |
| Series | Hookup Wire PVC |
| Outside diameter | 1.83mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Copper |
| Sub Type | 1565 Hookup Wire |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | Military MIL-W-76B TYPE MW |
| Jacket Colour | White |
| American Wire Gauge | 18AWG |
| Number of Strands | 1 |
| Core Strands | 1 x 0.81mm |
| Size of Strands | 0.81mm |
| Mil-spec compliance | MIL-W-76 B Type MW |
Key Features
- The conductor is made of copper for efficient conductivity.
- The wire features a polyvinyl chloride jacket that is resistant to abrasion and flame.
- It operates reliably within a temperature range from -40°C to +80°C.
- The single strand conductor is 0.81 mm in size, meeting MIL-W-76 B Type MW military specifications.
- The white color-coded insulation allows easy circuit identification.
- The wire is flame resistant and suitable for demanding industrial, military, and electronics applications.
- The overall diameter of the wire is 1.83 mm.
Product Description
Alpha Wire 1565 WH005 Hook Up Wire PVC Series is a high-performance, white insulated hookup wire with a nominal conductor cross-sectional area of 0.75 mm² (18 AWG). The wire is suitable for electrical applications requiring rated voltages up to 1kV and lengths of 30 meters, featuring a durable polyvinyl chloride (PVC) jacket.
Constructed with copper conductor material consisting of a single strand of 0.81 mm diameter, this wire complies with the stringent MIL-W-76 B Type MW military standards, ensuring it meets tough performance criteria such as mechanical durability and electrical reliability.
The jacket provides excellent abrasion and flame resistance, with a temperature operating range from -40°C to +80°C, making it suitable for use in industrial equipment, control cabinets, machine tools, high-temperature ovens, transformers, and switchboards. Its color-coded insulation enables easy circuit identification and maintenance.
Alpha Wire's MIL-spec compliant design supports demanding electronic and military environments, with excellent uniformity and a low-fray design that simplifies handling, stripping, and termination.
The conductor is high-grade copper for maximum conductivity. The insulation is polyvinyl chloride for strong protection and fire resistance. The wire length is 30 meters, suitable for multiple circuit needs. The operating temperature range is -40°C to +80°C, enabling application in harsh environments.
This white hookup wire supports 1kV voltage rating for reliable power and signal transmission. MIL-W-76 B Type MW specification compliance ensures suitability for military and industrial use.
Common applications include use in electrical control cabinets, factory floor machine tools, off-road construction equipment, and military electronics requiring reliable and robust cabling solutions.
Explore EnvMart's extensive range of high-quality hookup wires and other electrical cables to find the best fit for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size is 0.75 mm², which is equivalent to 18 AWG.
It has a maximum voltage rating of 1kV, making it suitable for various electrical applications.
This model operates reliably within a temperature range of -40°C to +80°C.
The wire has a length of 30 meters, allowing for multiple circuit needs.
The conductor is made of copper, which provides efficient conductivity.
It features a polyvinyl chloride (PVC) jacket that offers abrasion and flame resistance.
The overall diameter of the wire is 1.83 mm.
Yes, it complies with the Military MIL-W-76B Type MW specifications.
The conductor consists of a single strand measuring 0.81 mm in diameter.
This wire is suitable for use in electrical control cabinets, factory floor machine tools, and military electronics.
The insulation is white, which allows for easy circuit identification.
The color-coded insulation facilitates easy circuit identification and maintenance.
