Alpha Wire Ecogen Ecowire Series Orange 0.13 mm² 26 AWG Hook Up Wire, 7/0.16 mm Core Strands, 305 m Length 6711 OR001

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series Orange 0.13 mm² 26 AWG Hook Up Wire, 7/0.16 mm Core Strands, 305 m Length 6711 OR001

Name: Alpha Wire Ecogen Ecowire Series Orange 0.13 mm² 26 AWG Hook Up Wire, 7/0.16 mm Core Strands, 305 m Length 6711 OR001
Brand: ALPHA WIRE
SKU: 224472
Price: 185.16 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.13mm²
Model	6711 OR001
Cable Length	305m
Series	Ecogen Ecowire
Outside diameter	0.97mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Sub Type	EcoWire
Cable Type	Hookup
Minimum Operating Temperature	-40°C
Jacket Material	Modified Polyphenylene Ether
Standards/Approvals	CE, CSA, UL
Jacket Colour	Orange
Fire Behaviour	Flammability Test: VW-1
American Wire Gauge	26AWG
Number of Strands	7
Core Strands	7 x 0.16mm
Size of Strands	0.16mm
Fire BehaviourFlammability Test	VW-1
Flammability Test	VW-1

Key Features

The wire jacket is made from modified polyphenylene ether, offering excellent flame retardant properties.
It is rated for a maximum voltage of 600V and has a maximum operating temperature of 105°C.
The product is fully recyclable and environmentally friendly, designed for enhanced dielectric strength.
The 0.97 mm outside diameter provides a compact and lightweight profile, up to 40% lighter than comparable insulation materials.
Suitably used in electronic equipment, control panels, automotive, meters, ovens, and internal computer wiring.
Complies with UL AWM 11028 VW-1, CSA AWM I A/B FT1 flame standards, and is RoHS and REACH compliant.
The EcoWire series offers reduced wall thickness without compromising performance compared to PVC insulated wires.

Product Description

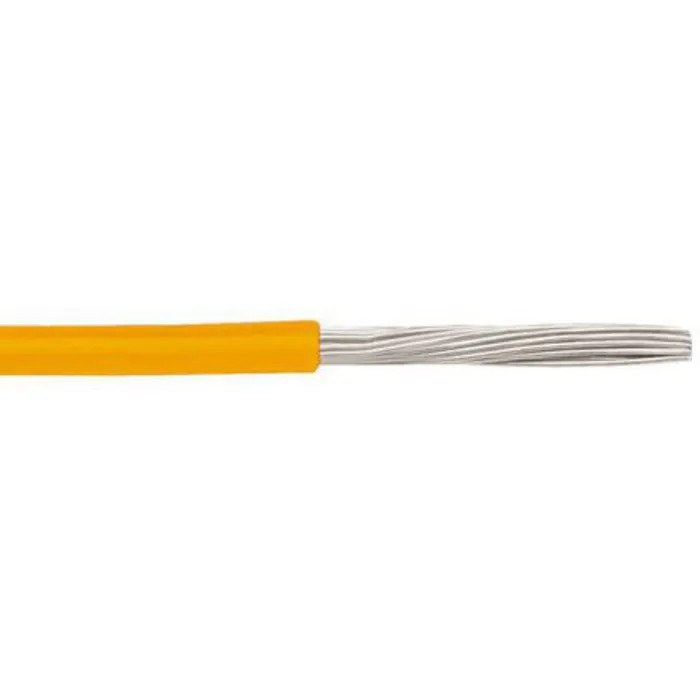

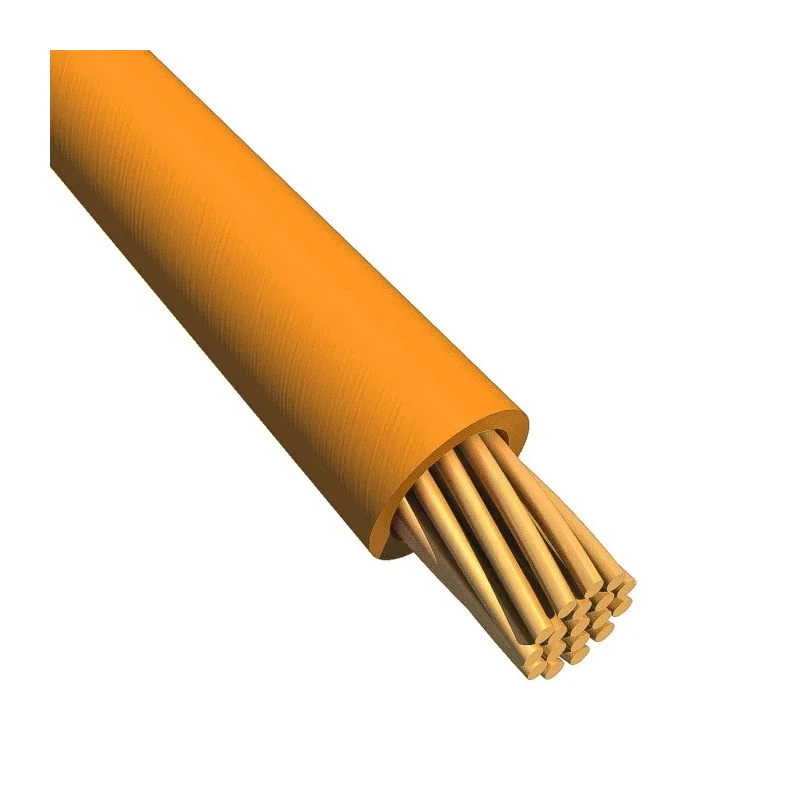

Alpha Wire 6711 OR001 Ecogen Ecowire Series Orange Hook Up Wire is a 0.13 mm² (26 AWG) single core cable with 7 strands of 0.16 mm diameter copper conductors. It comes in a 305-meter reel, designed with a modified polyphenylene ether (mPPE) jacket that is fully recyclable and environmentally friendly.

This wire is engineered for superior dielectric properties allowing for a reduced jacket thickness while maintaining excellent insulation performance. The jacket material is flame retardant with a UL VW-1 rating. Operating voltage is up to 600V, and it tolerates temperatures between -40°C and 105°C, making it ideal for a wide range of electrical and electronic applications.

EcoWire hook up wire is suitable for industrial, laboratory, automotive, and commercial control panel uses, as well as internal wiring of computers, business machines, ovens, and metering equipment. The lightweight and compact design reduce installation space and weight burden.

This product meets internationally recognized standards, including UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS, REACH, and CE certifications. It is part of Alpha Wire's Ecogen Ecowire series, known for combining performance with environmental responsibility.

Fully recyclable and environmentally friendly construction. Up to 45% smaller diameter than traditional PVC insulated wires. Excellent dielectric strength and flame retardancy to UL VW-1 standard. Lightweight design up to 40% lighter than other insulation materials.

Compliant with UL, CSA, RoHS, REACH, and CE standards.

Select Alpha Wire's Ecogen Ecowire for reliable, high-performance hook up wiring with reduced environmental impact. Explore more in EnvMart's Electronics & Electricals Wires & Cables Hook Up Wire category.
