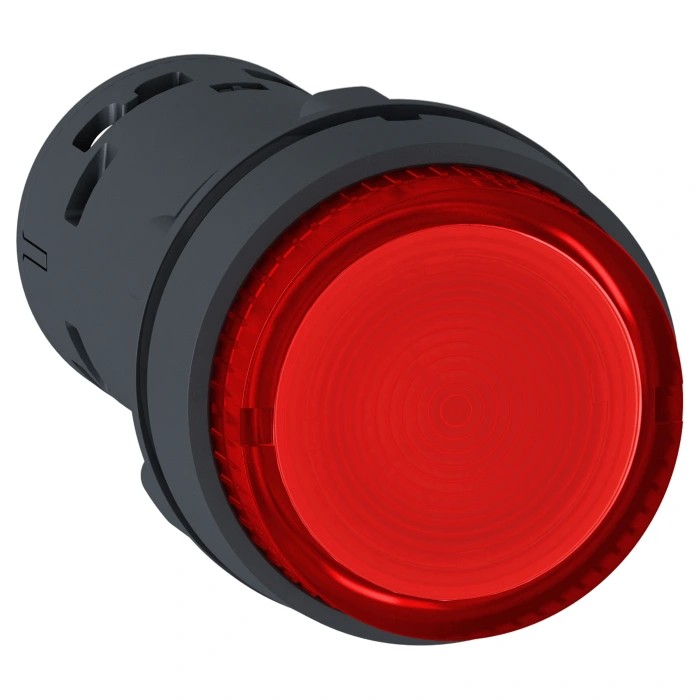

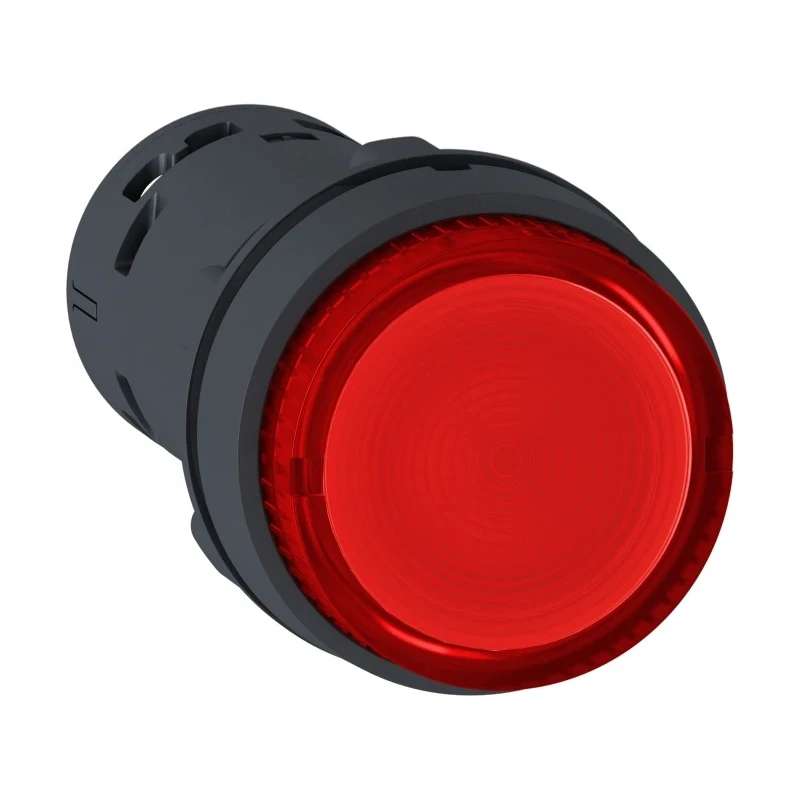

Schneider Electric Harmony XB7 Series Illuminated Push Button Switch Silicone Polymer Panel Mount 22 mm Cutout SPST XB7NJ04B1

Schneider Electric XB7NJ04B1 is a robust illuminated push button switch from the Harmony XB7 Series designed for industrial and automation use. It features a durable silicone polymer actuator in striking red, providing reliable tactile feedback and high visibility. The switch is panel mounted using a standard 22 mm cutout and supports SPST contact configuration with a single normally open contact.

Designed for harsh environments, this switch boasts IP65 rating for resistance against water, dust, vibration, and impacts, making it ideal for industrial machinery, manufacturing lines, and building automation.

The integral red LED illumination enhances visibility in brightly lit environments and helps indicate operational status clearly from a distance.

The switch operates on 24V AC or DC with a switch contact current of 300mA, ensuring compatibility with various control circuits. Installation is facilitated by reliable screw-clamp terminals, ensuring secure wiring connections.

Operating temperature range of -25°C to 70°C extends its use in diverse climates and industrial conditions. The compact dimensions of 29 mm height and width with 57.5 mm length allow easy integration into control panels without occupying excessive space.

Compliance with multiple international standards such as EN/IEC 60947-1, UL 508, CSA, and JIS ensures high safety and quality for demanding applications. Red illuminated round actuator for clear visual feedback. Latched push to release operation ensures operator safety and control.

IP65-rated enclosure protects against dust and water ingress. Screw clamp terminals for fast and secure wiring. Compact and ergonomic design suitable for industrial panels. Wide temperature range for versatile installation environments.

Designed and built to international electrical standards.

This Schneider Electric Harmony XB7NJ04B1 push button switch is widely used in industrial automation systems, manufacturing equipment, control panels, and processing machinery where reliable operator controls are essential.

Explore our extensive range of high-quality Push Button Switches and other industrial electrical components to find the perfect solutions for your control and automation needs at EnvMart.
