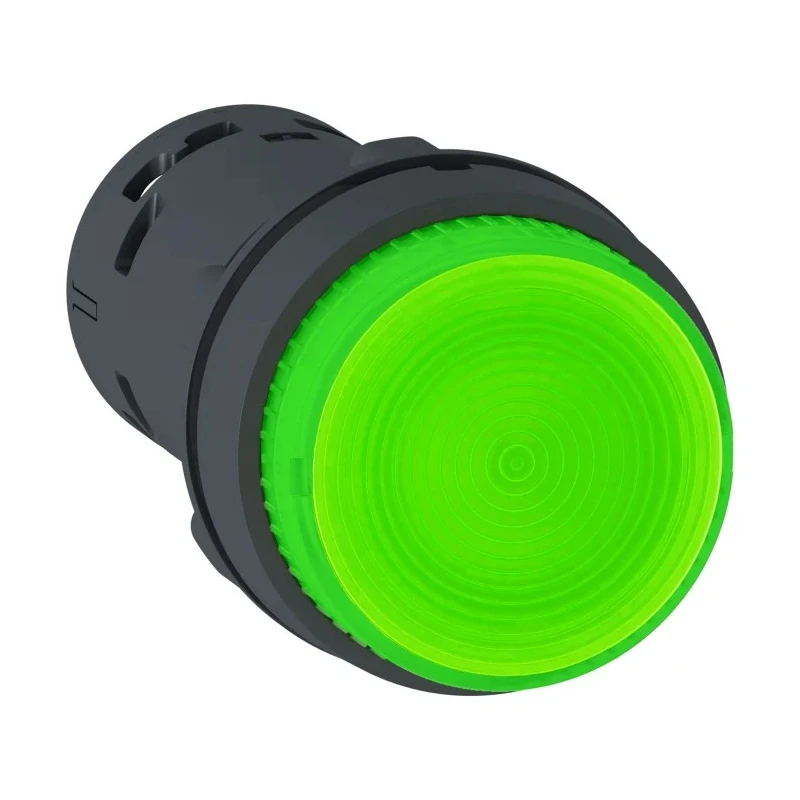

Schneider Electric Harmony XB7 Series Illuminated Push Button Switch 22 mm Panel Mount Green LED, Silicone Polymer XB7NJ03B1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 29mm |
| Length | 57.5mm |
| Model | XB7NJ03B1 |
| Width | 29mm |
| Mount Type | Panel Mount |
| Series | Harmony XB7 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Silicone Polymer |
| Actuator Colour | Green |
| Contact DC Voltage | 24V |
| Actuator Style | Round |
| Switch Contact Current | 300mA |
| Legend | Blank |
Key Features
- Features a round silicone polymer actuator for reliable operation.
- Compatible with 22 mm panel cutout sizes for easy installation.
- SPST contact configuration with 1 normally open (1 NO) contact.
- Offers screw-type terminal connection for secure wiring.
- Operates on 24V AC/DC voltage supply for versatile use.
- Robust construction ensures resistance to impact, dust, water, and vibration with IP65 rating.
- Wide operating temperature range from -25°C to 70°C for harsh environments.
- Meets international standards including EN/IEC 60947-5-1 and UL 508 for safety and reliability.
Product Description
Schneider Electric XB7NJ03B1 Harmony XB7 Series Illuminated Push Button Switch features a green LED illuminated head and a silicone polymer actuator, designed for panel mounting in a 22 mm diameter cutout. This push button switch operates with a latching push-to-release mechanism and is suitable for use with 24V AC/DC control circuits.
Its robust construction offers dust, water, and vibration resistance with an IP65 rating, making it ideal for demanding industrial environments. The clear illumination provides high brightness for easy identification even in brightly lit conditions, reducing errors and enabling quick recognition of equipment status.
Designed for versatility, it operates reliably across a broad temperature range from -25°C to 70°C and features a screw terminal type for secure and easy electrical connection. Its compact size (29 x 29 x 57.5 mm) allows use in space-limited installations.
This push button switch complies with multiple international standards including EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14, UL 508, and JIS C8201-5-1 ensuring product safety and quality for industrial automation.
Round silicone polymer actuator for reliable tactile feedback. Green LED illumination for clear visual status indication. Panel mount design suitable for 22 mm cutout panels. SPST 1 NO contact configuration supports various control applications.
Screw clamp terminals for robust electrical connections. IP65 rated for resistance to dust and water ingress. Wide temperature range operation from -25°C to 70°C. Compact dimensions enable integration in complex control panels.
Compliant with multiple international electrical and safety standards.
This Schneider Electric Harmony XB7 Series product is widely used in industrial automation, manufacturing control systems, HVAC equipment, and machinery operation panels. It offers durable and reliable control functionality essential for safety and efficiency in commercial and industrial facilities.
Browse other Schneider Electric products and push button switches at EnvMart for advanced control solutions.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST contact configuration with 1 normally open (1 NO) contact.
It operates on a 24V AC/DC voltage supply, making it versatile for various control applications.
The dimensions are 29 mm in height, 29 mm in width, and 57.5 mm in length.
It has an IP65 rating, indicating resistance to dust and water ingress.
This unit operates reliably within a wide temperature range from -25°C to 70°C.
It features screw-type terminals for secure wiring connections.
The actuator is made from silicone polymer, providing reliable operation and tactile feedback.
Yes, it is designed for panel mounting and is compatible with 22 mm panel cutout sizes.
It meets multiple international standards including EN/IEC 60947-5-1, UL 508, and CSA C22.2 No 14.
The LED illumination is green, providing clear visual status indication.
It operates with a latching push-to-release mechanism, ensuring reliable control.
This switch is widely used in industrial automation, manufacturing control systems, HVAC equipment, and machinery operation panels.
