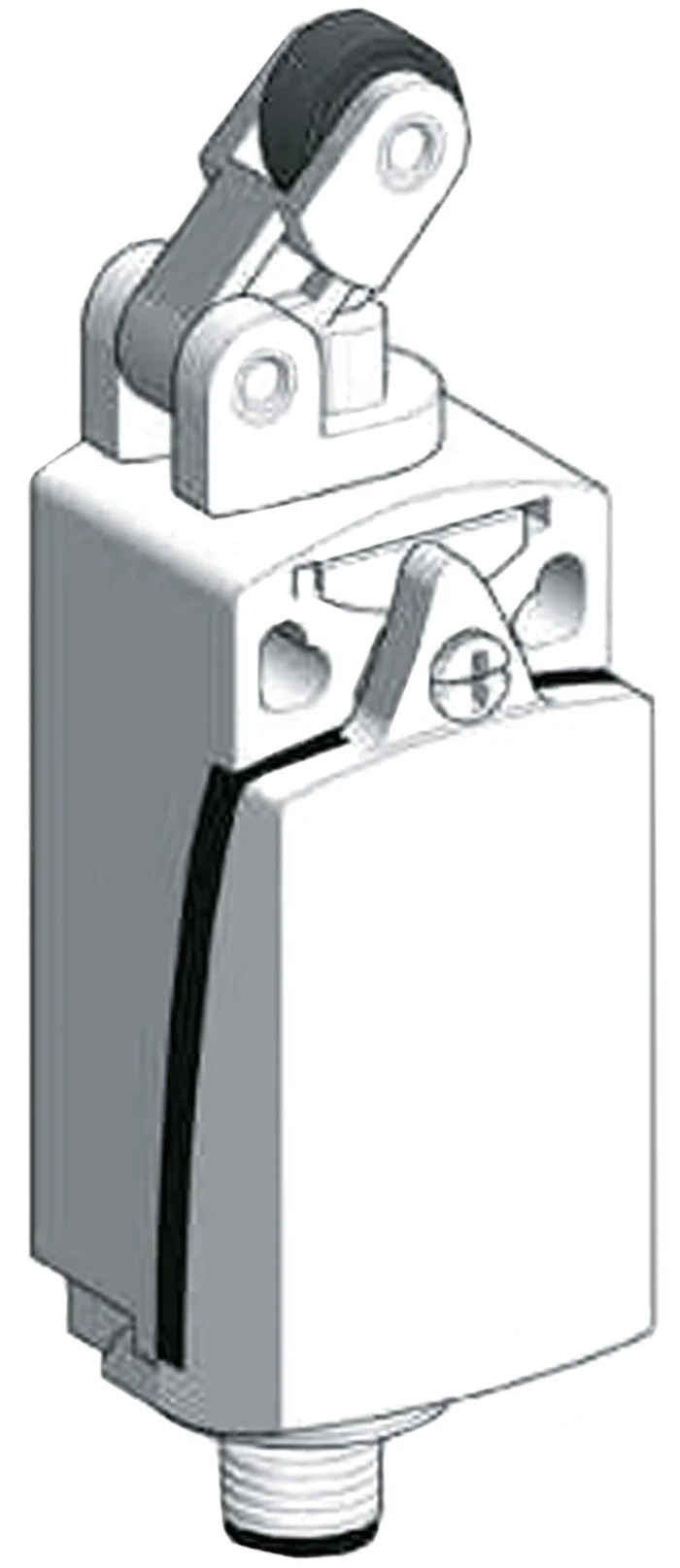

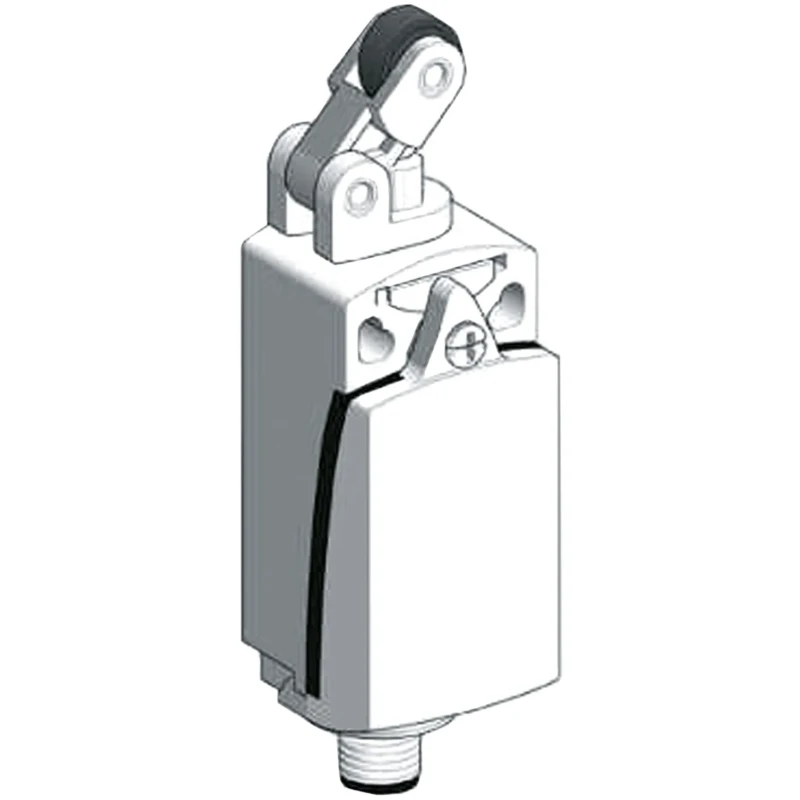

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66/IP67, Zinc Alloy Housing XCKD2121M12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | XCKD2121M12 |
| Depth | 30mm |
| IP Rating | IP66, IP67 |
| Width | 31mm |
| Housing Material | Zinc Alloy |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Front |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | M12 |
| Standards/Approvals | IEC, CE, CSA, UL, RoHS, EN |
| Operating Force | 6Nm |
| Mechanical Life | 1000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M12 |
Key Features
- Features 1 Normally Open and 1 Normally Closed contact configuration.
- Equipped with a robust zinc alloy housing for enhanced durability.
- Offers protection rated at IP66 and IP67, suitable for harsh environments.
- Supports switching voltages of 240V AC and 250V DC with a switching current of 10A.
- Operates reliably between -25°C to 70°C ambient temperatures.
- Utilizes snap action contact type for precise switching performance.
- Includes an M12 conduit entry and terminal type for secure connection.
- Mechanical life expectancy of 1,000,000 operations ensures long-term reliability.
Product Description
Telemecanique Sensors XCKD2121M12 OsiSense XC Series Roller Plunger Limit Switch is a high-performance control device engineered for industrial automation, manufacturing, and machinery applications. This limit switch features a roller plunger actuator type that provides reliable mechanical actuation with snap action contacts for precise switching.
The switch is housed in a durable zinc alloy casing that ensures resilience against mechanical impacts and environmental exposure. With an IP66 and IP67 ingress protection rating, it is well-suited for use in wet, dusty, and harsh industrial environments, providing resistance against water jets and immersion.
Designed to handle switching currents up to 10A and voltages of 240V AC and 250V DC, this limit switch integrates seamlessly into a variety of electrical control circuits requiring on/off positional feedback.
Operating temperature range from -25°C to 70°C makes it suitable for diverse climatic conditions encountered in industrial settings. The robust design includes an M12 terminal and conduit entry facilitating secure electrical connections and installation.
The mechanical life of one million operations guarantees durability and minimal maintenance over extended use. Compact dimensions (65mm × 31mm × 30mm) and front mounting orientation provide flexible installation options in confined spaces.
Features 1 Normally Open and 1 Normally Closed contact configuration. Zinc alloy housing delivers enhanced mechanical strength and corrosion resistance. IP66 and IP67 protective ratings allow operation in challenging industrial environments.
Rated for switching voltages 240V AC and 250V DC with 10A switching current capacity. Wide operational temperature range from -25°C to 70°C. Snap action contact type ensures reliable and fast switching response. M12 conduit entry and terminal fittings support secure electrical connections.
High mechanical life backed by 1,000,000 operation cycles. Compact 65mm length by 31mm width by 30mm depth dimensions.
This limit switch is ideal for industrial control systems, automation machinery, process control, and safety applications requiring precise, dependable position sensing and switching. Explore further Limit Switch products and automation solutions on EnvMart for comprehensive industrial control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
It can handle a maximum switching current of 10A.
The switch has an ingress protection rating of IP66 and IP67, making it suitable for harsh environments.
It operates reliably within a temperature range of -25°C to 70°C.
The mechanical life expectancy is rated at 1,000,000 operations.
It utilizes a roller plunger actuator type for mechanical actuation.
The housing is made of zinc alloy, providing enhanced durability.
The dimensions are 65mm in length, 31mm in width, and 30mm in depth.
It includes an M12 terminal type for secure electrical connections.
It complies with IEC, CE, CSA, UL, RoHS, and EN standards.
The mounting orientation is front-mounted, allowing for flexible installation options.
It supports switching voltages of 240V AC and 250V DC.
