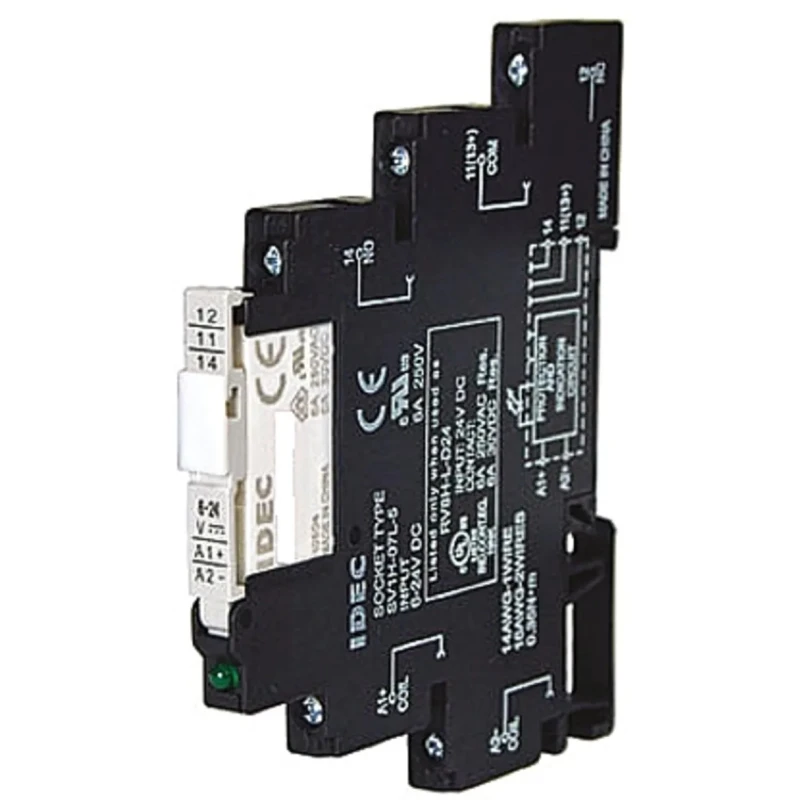

Idec Electromechanical Interface Relay DIN Rail Mount 110V Coil SPDT 6A RV8H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Idec |
| Height | 74.2mm |
| Length | 88mm |
| Model | RV8H |
| Width | 6.1mm |
| Mount Type | DIN Rail |
| Contact Material | Gold Plated |
| Series | RV8H |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | UL, CE |
| Coil Resistance | 0.1Ω |
| Coil Voltage | 110V |
| Coil Current | 3.9mA |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 400V ac |
Key Features
- This relay features a coil resistance of 0.1Ω for efficient operation.
- It is equipped with gold-plated contacts rated for 6A switching current.
- The coil current is 3.9mA, operating within a temperature range from -40°C to 70°C.
- It supports switching voltages up to 400V AC and 125V DC.
- The relay is compact with dimensions of 74.2mm height, 88mm length, and 6.1mm width, saving space in panel setups.
- Mounting is facilitated via DIN rail, and screw terminal types ensure secure connections.
- High dielectric strength and impulse withstand voltages ensure reliability.
- Reverse polarity protection safeguards the coil from incorrect wiring.
Product Description
Idec RV8H-L-AD110 electromechanical interface relay combines reliable 110V coil operation with SPDT contact configuration, ideal for DIN rail mounting in electrical control panels. This precision relay efficiently supports switching currents of 6A with gold-plated contacts that ensure excellent conductivity and durability under industrial environments.
The relay has a coil resistance of 0.1Ω and draws a coil current of only 3.9mA, contributing to energy efficiency and low heat generation. It functions reliably over a wide temperature range from -40°C minimum to 70°C maximum, suitable for challenging industrial and automation system conditions.
Switching voltages supported include up to 400V AC and 125V DC, making this relay versatile for various electrical circuits and control systems. The compact physical dimensions - 74.2mm height, 88mm length, and 6.1mm width - allow space-saving installation on standard DIN rails. Universal screw terminals simplify wiring and maintenance operations.
The RV8H series interface relays offer high dielectric strength and impulse withstand voltages to protect against electrical surges. The coil is reverse polarity protected to prevent damage from wiring errors. This relay is UL and CE certified, providing assurance of product safety and performance compliance.
This product is well suited for industrial automation, electrical control, manufacturing, and signal conditioning applications, ensuring dependable switching and signal relay functionality in demanding environments.
This relay features a coil resistance of 0.1Ω for efficient operation. It is equipped with gold-plated contacts rated for 6A switching current. The coil current is 3.9mA, operating within a temperature range from -40°C to 70°C.
It supports switching voltages up to 400V AC and 125V DC. The relay is compact with dimensions of 74.2mm height, 88mm length, and 6.1mm width, saving space in panel setups. Mounting is facilitated via DIN rail, and screw terminal types ensure secure connections.
High dielectric strength and impulse withstand voltages ensure reliability. Reverse polarity protection safeguards the coil from incorrect wiring. Ideal for industrial, automation, and electrical control applications. Complies with UL and CE standards for safety and quality assurance.
Explore the wide range of Idec relays and Interface Relay solutions available on EnvMart for reliable control and signal applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 110V.
This model can handle a maximum switching current of 6A.
The dimensions of the relay are 74.2mm in height, 88mm in length, and 6.1mm in width.
This relay supports DIN rail mounting, which facilitates easy installation in electrical control panels.
The relay operates within a temperature range from -40°C to 70°C.
It is equipped with gold-plated contacts, which provide excellent conductivity and durability.
The coil resistance of this relay is 0.1Ω.
It supports switching voltages up to 400V AC and 125V DC.
This relay uses screw terminals for secure connections.
The relay complies with UL and CE standards, ensuring product safety and performance compliance.
The coil current required for operation is 3.9mA.
This relay is suitable for industrial automation, electrical control, manufacturing, and signal conditioning applications.
