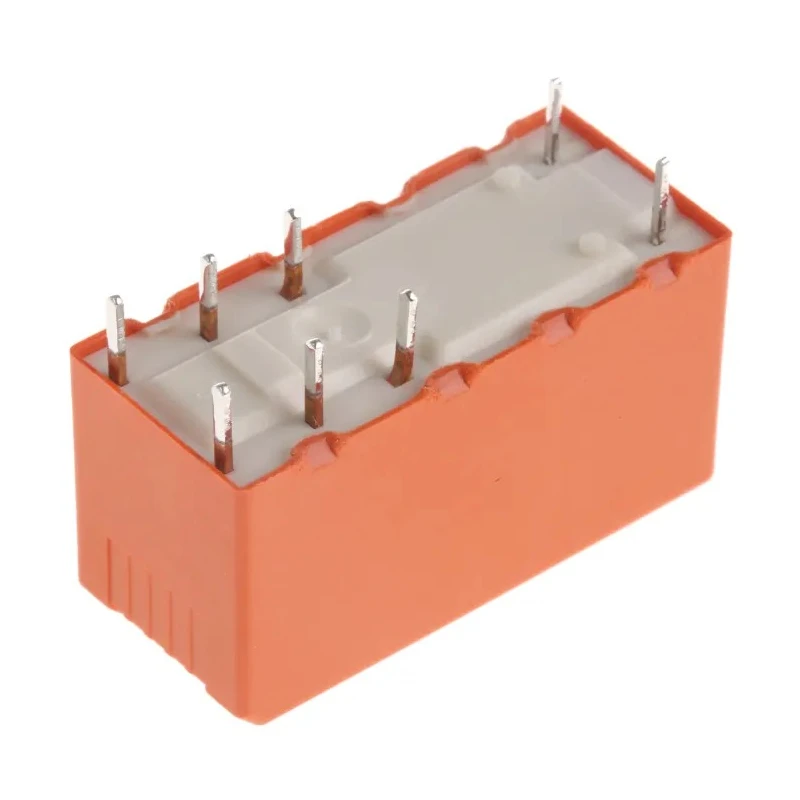

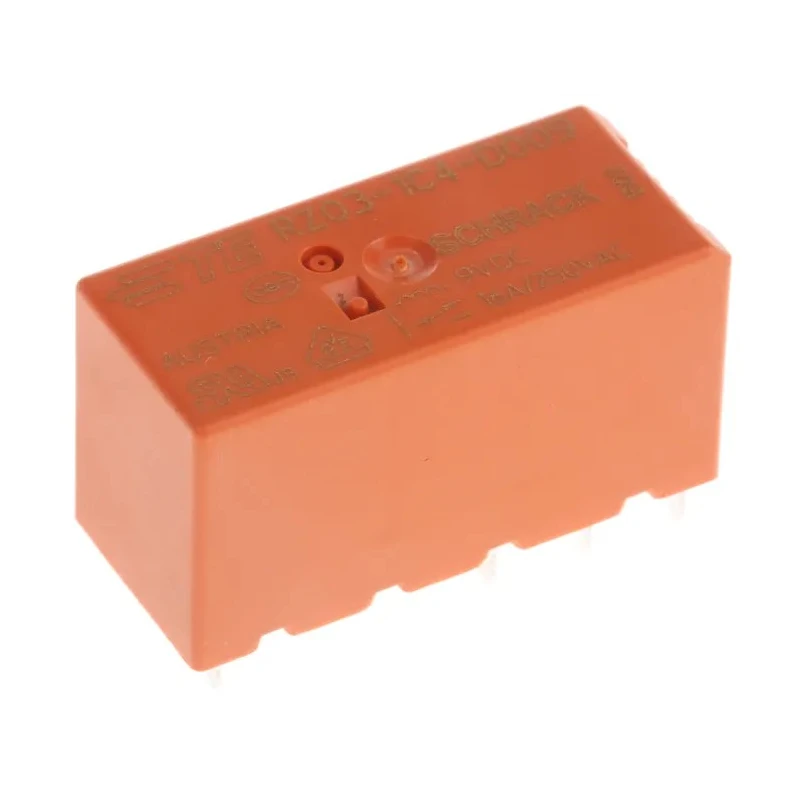

TE Connectivity RZ Series PCB Power Relay 9V DC Coil 16A Switching Current SPDT 2-1415899-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 29.00 x 12.70 x 15.70 mm |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | CSA, UR, UL |
| Coil Resistance | 200Ω |
| Coil Voltage | 9V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- Compact dimensions measuring 29.00 x 12.70 x 15.70 mm for easy PCB mounting.
- Coil power and switching power rated at 400 mW ensuring efficient energy usage.
- Silver alloy contact material guarantees durability and excellent conductivity.
- Wide operating temperature range from -40°C to 85°C for versatile industrial applications.
- Compliant with CSA, UR, and UL standards for assured safety and quality.
- RZ Series design offers reinforced insulation of 5kV and 10 mm separation for high voltage isolation.
- Terminal type is solder for stable and secure PCB connections.
- Suitable for use in electrical, automation, manufacturing, and industrial control systems.
Product Description
TE Connectivity 2-1415899-1 PCB Power Relay is a high-quality RZ Series power relay designed for reliable switching in demanding industrial and electrical applications. The relay features a 9V DC coil and supports a high switching current of 16A in a SPDT configuration, ideal for various control circuits.
Its compact size, with dimensions of 29.00 x 12.70 x 15.70 mm, allows easy integration onto printed circuit boards. The coil consumes only 400 mW, providing efficient power usage. Silver alloy contacts ensure long-lasting durability and consistent electrical performance.
Rated to operate over a temperature range from -40°C to 85°C, this relay meets industry standards including CSA, UR, and UL certifications, guaranteeing safety and compliance. Its robust construction includes reinforced insulation rated at 5kV with a 10 mm separation distance for enhanced voltage isolation.
The solder terminal type provides secure PCB connections, and the relay’s design meets appliance industry requirements of IEC60335-1. This makes it suitable for use in industrial automation, manufacturing machinery, electrical control systems, and other applications where reliable power switching is critical.
Compact dimensions of 29.00 x 12.70 x 15.70 mm facilitate PCB mounting. 9V DC coil voltage with 400 mW coil power consumption. 16A switching current capacity with SPDT contacts for versatile switching. Silver alloy contact material ensures consistent conductivity and durability.
Operating temperature range from -40°C to 85°C for harsh environments. Meets CSA, UR, and UL standards plus IEC60335-1 appliance industry requirements. Robust construction with 5kV reinforced insulation and 10 mm clearance.
Solder terminal type for secure and reliable PCB connection. Ideal for industrial, automation, manufacturing, and electrical control applications. Browse our comprehensive selection of Power Relays and other electronic components at EnvMart to find reliable products to meet your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various control circuits.
The relay operates with a coil voltage of 9V DC, ensuring compatibility with many control systems.
The dimensions of this relay are 29.00 x 12.70 x 15.70 mm, allowing for easy PCB mounting.
It features a solder terminal type, providing secure and reliable connections to printed circuit boards.
The operating temperature range is from -40°C to 85°C, suitable for harsh industrial environments.
This relay is compliant with CSA, UR, and UL standards, ensuring safety and quality in its applications.
The contact configuration is SPDT (Single Pole Double Throw), allowing for versatile switching options.
The coil power consumption is rated at 400 mW, contributing to its efficient energy usage.
The contacts are made of silver alloy, which ensures durability and excellent conductivity.
It features reinforced insulation rated at 5kV with a 10 mm separation distance for high voltage isolation.
This relay is suitable for use in electrical, automation, manufacturing, and industrial control systems.
The maximum switching AC voltage for this relay is 400V AC, allowing it to handle various electrical loads.
