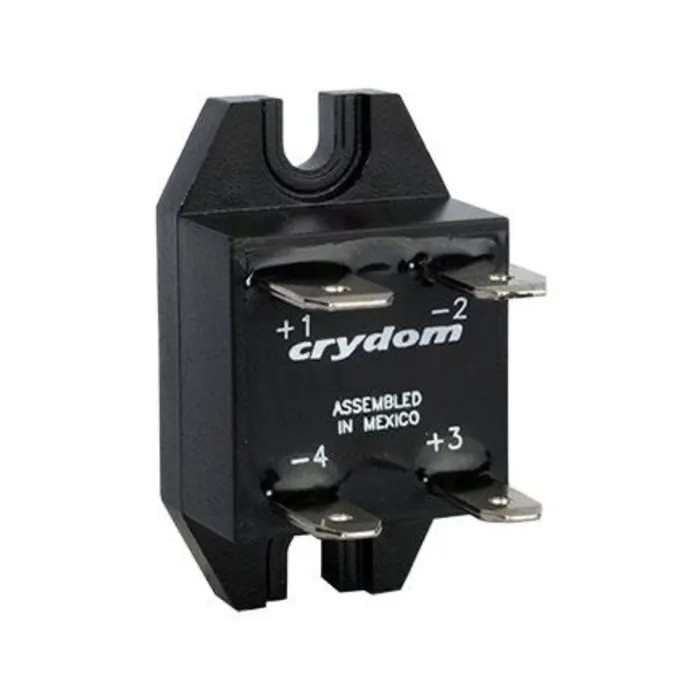

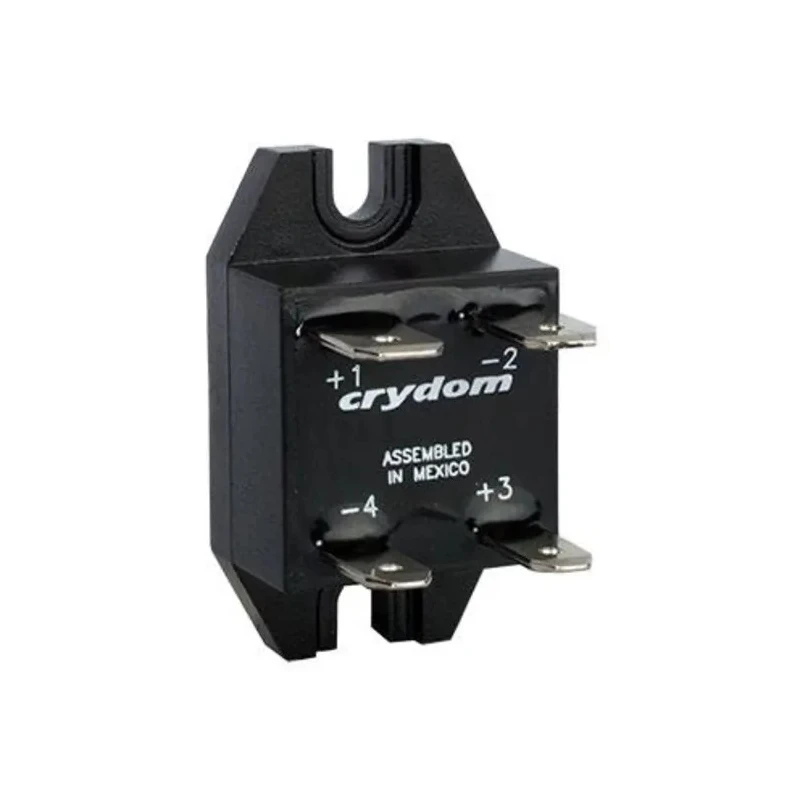

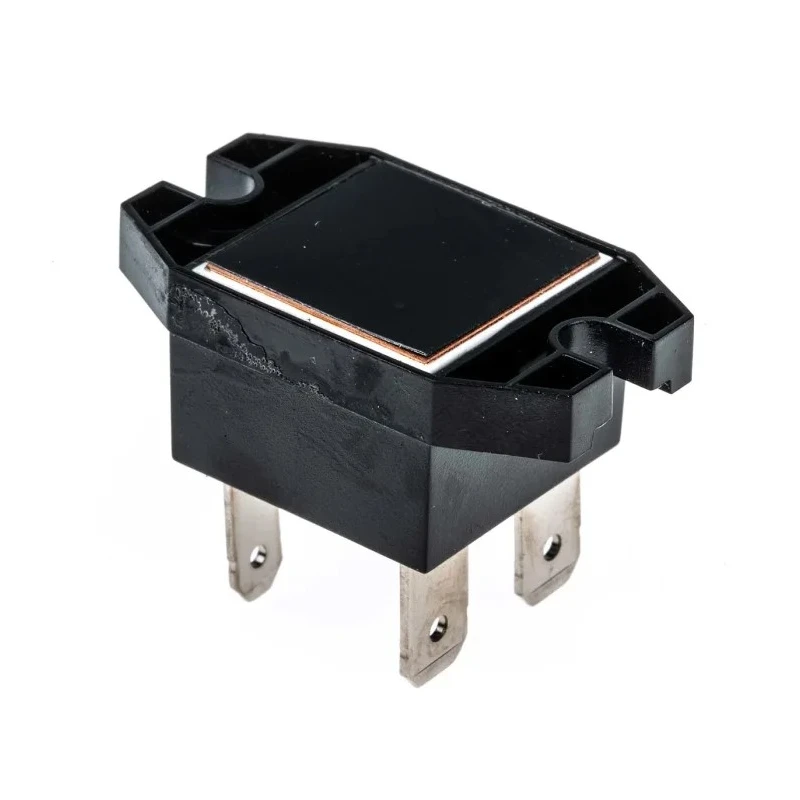

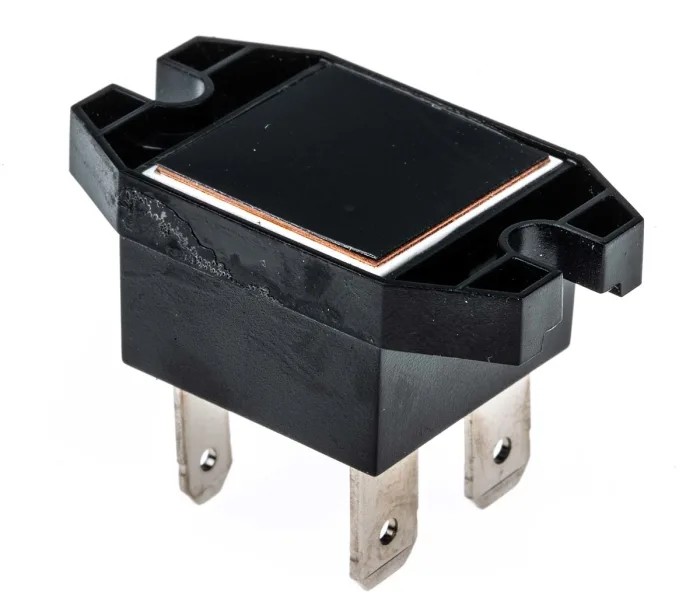

Crydom Solid State Relay, 10 A Load, Panel Mount, 100 V DC Load, 27 V DC Control EL100D10-24

The Crydom EL100D10-24 Solid State Relay is a highly reliable and efficient relay designed for industrial applications requiring DC switching of loads up to 10 amperes.

This panel mount relay supports load voltages ranging from 3 V DC to 100 V DC, making it suitable for a wide variety of low-voltage control systems. The control input voltage spans from 21 V DC to 27 V DC, providing stable operation within this range.

The relay utilizes advanced MOSFET output technology which delivers fast switching times of approximately 1 ms, high efficiency, and reduced power dissipation through low on-resistance. This improves overall system performance and energy savings.

With a compact form factor measuring 35.6 mm in length, 21.1 mm in width, and 14.3 mm in height, the device fits well in constrained spaces within control panels and industrial assemblies. The wide operating temperature range of -30°C to 80°C ensures dependable function in harsh and demanding environments.

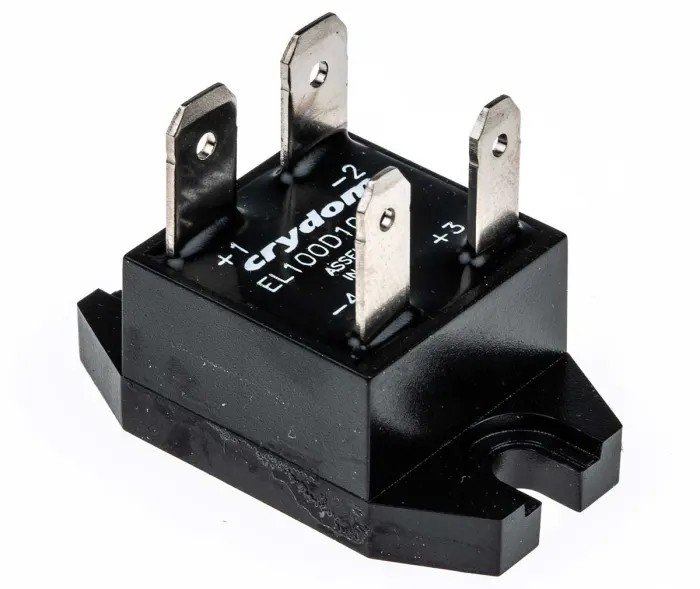

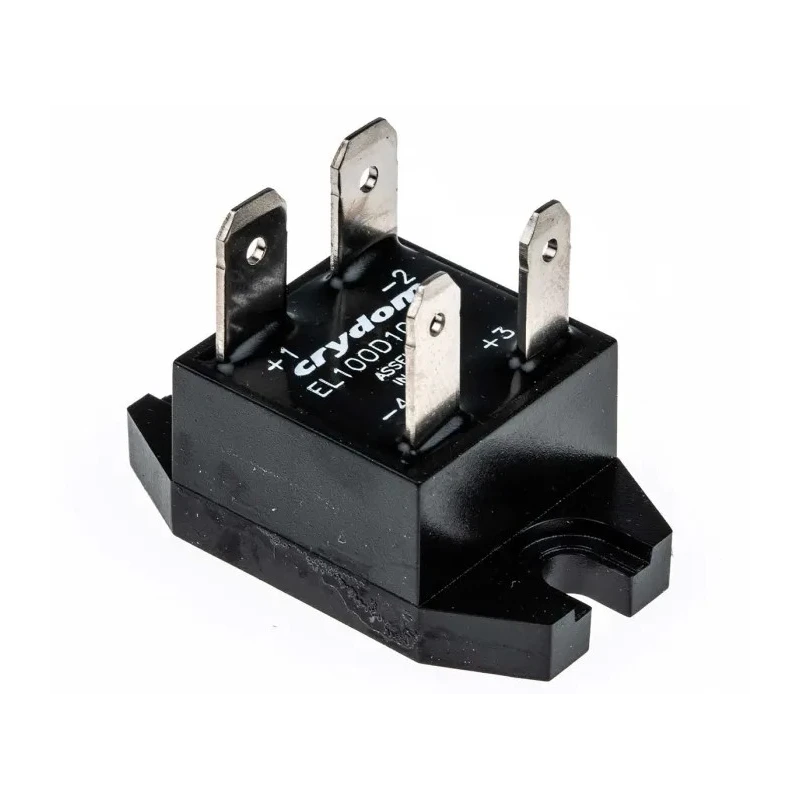

The relay features a single-pole single-throw (SPST) contact configuration, optimized for DC switching applications. Quick connect terminals enable fast and secure wiring connections, simplifying installation and maintenance processes.

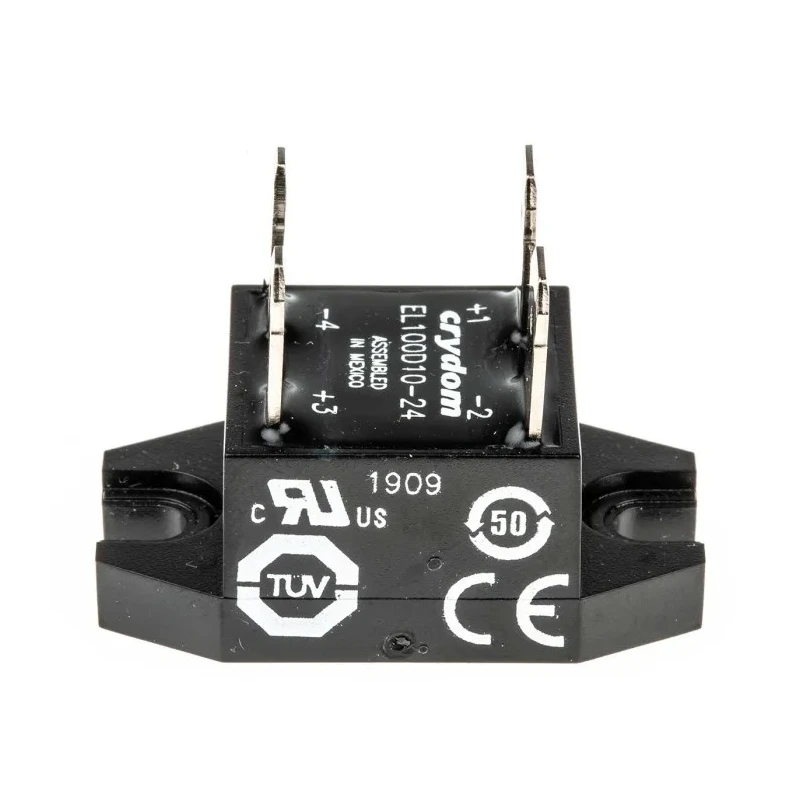

This product is certified to meet recognized safety and quality standards including UL, CE, and IEC, and complies with RoHS regulations, ensuring environmental friendliness and high-quality manufacturing.

Supports maximum load current of 10 amperes for robust operation. Panel mount design enables easy and space-efficient installation. Operates with load voltages ranging from 3 V DC to 100 V DC. Control voltage range from 21 V DC minimum to 27 V DC maximum ensures compatibility.

Utilizes MOSFET output technology for rapid switching and high efficiency. Compact dimensions: 35.6 mm length, 21.1 mm width, and 14.3 mm height. Wide operating temperature range from -30°C to 80°C for harsh environments.

Contact configuration is single-pole single-throw (SPST) with DC switching function. Quick connect terminals simplify wiring and maintenance. Certified to UL, CE, IEC standards and RoHS compliant. Ideal for industrial motor control, manufacturing automation, and other electrical control applications requiring reliable DC switching.
