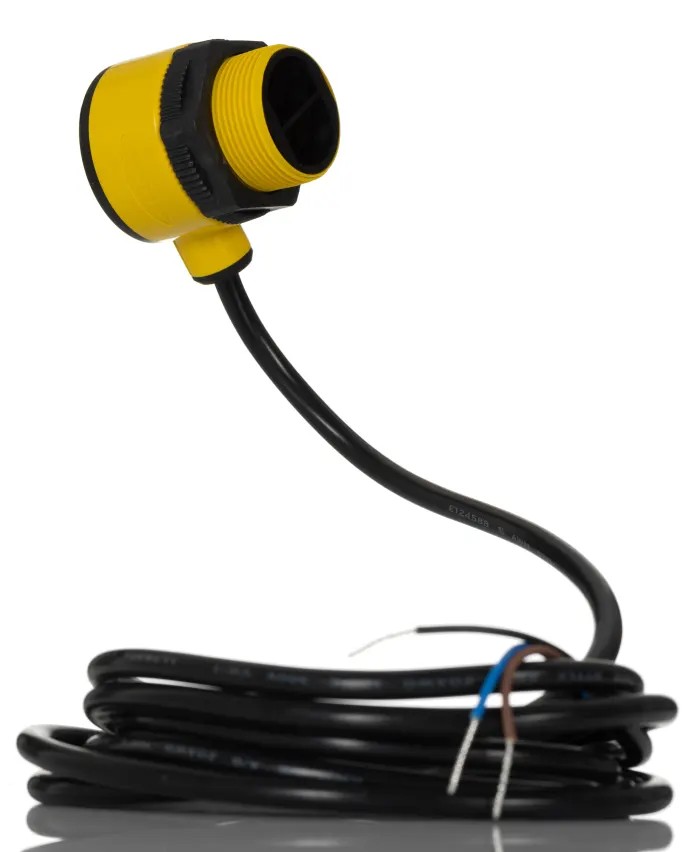

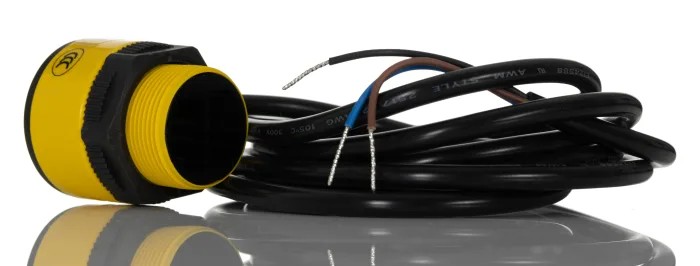

Banner Diffuse Photoelectric Sensor, Barrel Style, 400 mm Detection Range, Relay Output, IP69K, Model T30AW3FF400

Banner T30AW3FF400 diffuse Photoelectric Sensor in barrel style provides reliable diffuse object detection with a detection range of 400 mm. Featuring relay output and IP69K rating, this sensor is engineered for demanding industrial automation and control gear applications.

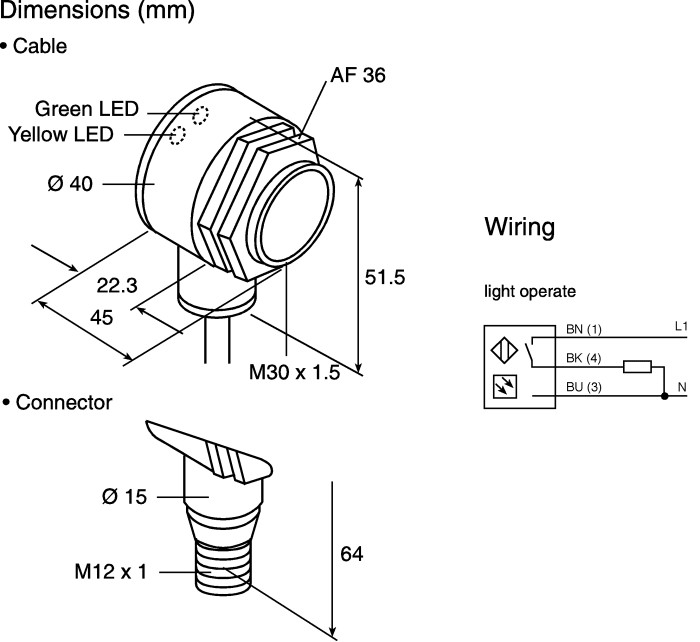

The compact barrel housing allows installation in tight spaces without compromising sensor versatility. It employs an infrared light source to detect objects by comparing reflected light with two detectors, making it highly accurate even when objects are closely spaced.

The integrated solid state SPST relay output supports continuous current load up to 300mA and switching voltages up to 250V AC and 30V DC. Cable terminal type facilitates secure connectivity in complex control systems. Designed for harsh environments, the sensor is IP69K rated, protecting against ingress of dust and water jets at high temperature and pressure.

Operating temperature spans from -40°C to 70°C, making it suitable for a wide range of industrial and outdoor settings. The sensor housing is made of robust polyethylene terephthalate and polybutylene terephthalate, ensuring mechanical strength and chemical resistance. This product conforms to IEC standards, assuring reliable operation and compliance with industrial norms.

The T30 series fixed field sensors compare emitted light reflections allowing detection when objects are closely positioned with minimal spacing. The sensor also features NPN or PNP complementary outputs and an alarm output that signals when ambient light conditions reach marginal levels, enhancing automation safety.

Applications include manufacturing process monitoring, packaging lines, robotics, material handling, and other automated detection tasks where precision and durability are crucial.

Compact barrel-style housing designed for space-limited installations. Diffuse detection using infrared light source ensures precise sensing. Relay output supports 300mA continuous current switching. Operating temperature range from -40°C to 70°C.

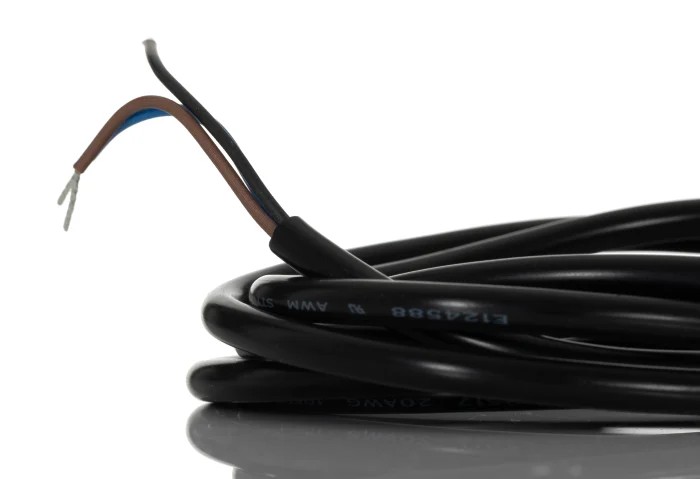

Cable terminal type for easy integration. IP69K rating protects against harsh washdown environments. Maximum AC voltage 250V and DC voltage 30V operational ratings. Fast 16 ms response time for quick detection. Durable housing materials: polyethylene terephthalate and polybutylene terephthalate.

Meets IEC standards for industrial use. For more Banner products and sensors, explore the diverse range on EnvMart for industrial automation and control applications.
