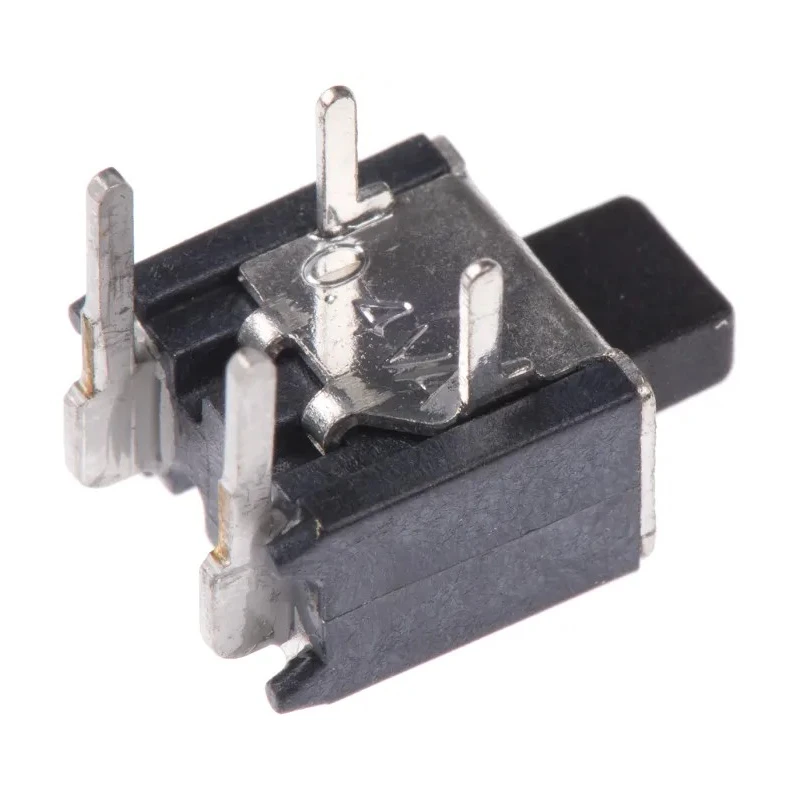

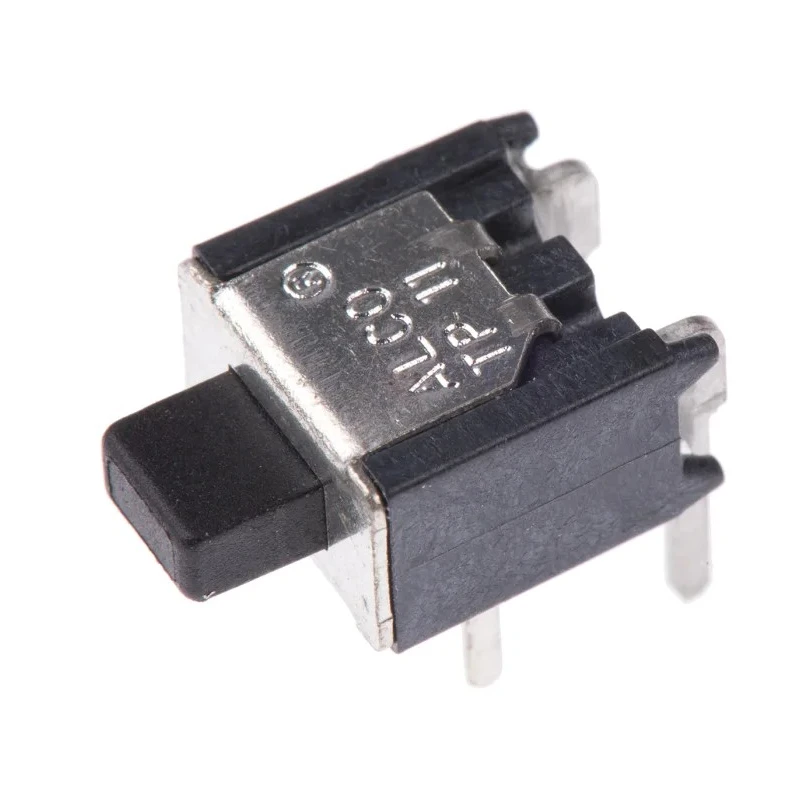

TE Connectivity Miniature Push Button Switch Momentary Operation PCB Mount SPST 20 V dc 1825095-3

TE Connectivity 1825095-3 Miniature Push Button Switch is a high-quality momentary switch designed for electronic applications requiring compact PCB mounting solutions. Featuring a black push button actuator, this SPST type switch operates at a contact DC voltage of 20 V and a contact current rating of 400mA, making it suitable for low-voltage control circuits and signal applications.

The switch is built with a durable thermoplastic housing and low-resistance gold contacts, contributing to its excellent electrical performance and longevity. Rated for electrical life of up to 80,000 cycles, this switch reliably performs break-before-make normally open switching action, ideal for momentary push-button control.

Designed for through-hole PCB mounting, it offers secure installation on printed circuit boards and is wave solder capable up to 265° C. It operates efficiently within a temperature range of -30°C to 95°C, ensuring stable performance across demanding industrial, automation, and electronic environments.

This product complies with REACH and RoHS directives, reflecting TE Connectivity’s commitment to environmental safety standards. The miniature form factor and variety of actuator styles and mounting options in the TP Series allow customization for diverse applications including industrial control panels, instrumentation, and electronic devices.

The switch features a black push button actuator for precise momentary switching. Designed for through hole terminal mounting suitable for PCB installation. Supports a contact DC voltage of 20 V and contact current of 400mA.

Operates reliably within a temperature range from -30°C to 95°C. Constructed with a thermoplastic housing and gold contacts for durability and performance. Electrical lifespan of approximately 80,000 cycles ensures long-term usage.

The switch has a break-before-make normally open contact design. Fully compliant with REACH and RoHS standards for safety and environmental concerns. Available with various actuator styles and mounting options in the TP Series.

Utilize this switch in industrial control, electrical automation, and electronic PCB assemblies to enhance operating efficiency and reliability. Explore a wide range of TE Connectivity products and Push Button Switches on EnvMart to find exact components suitable for your technical requirements.
