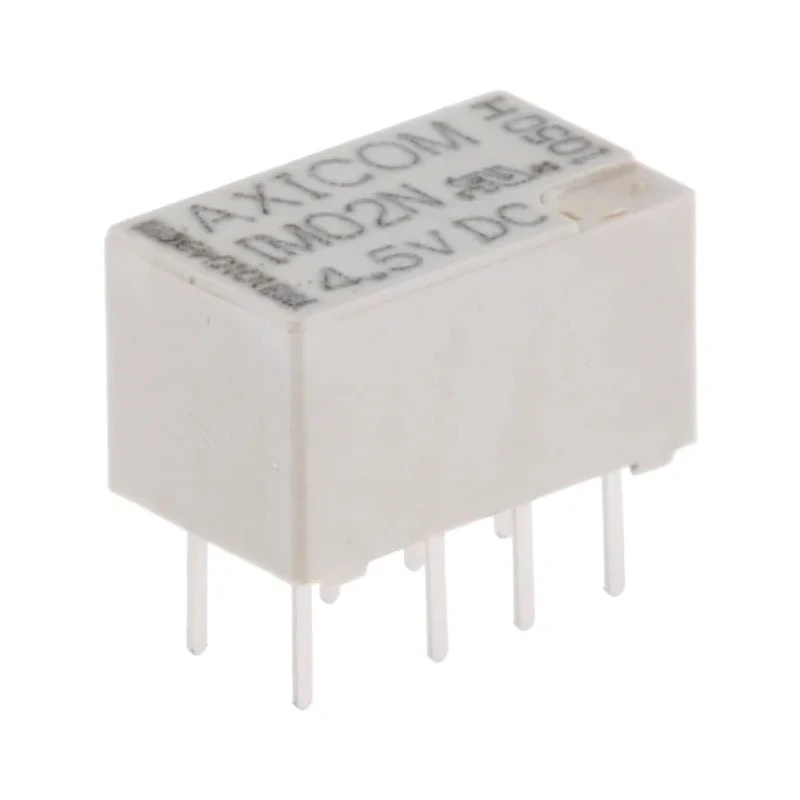

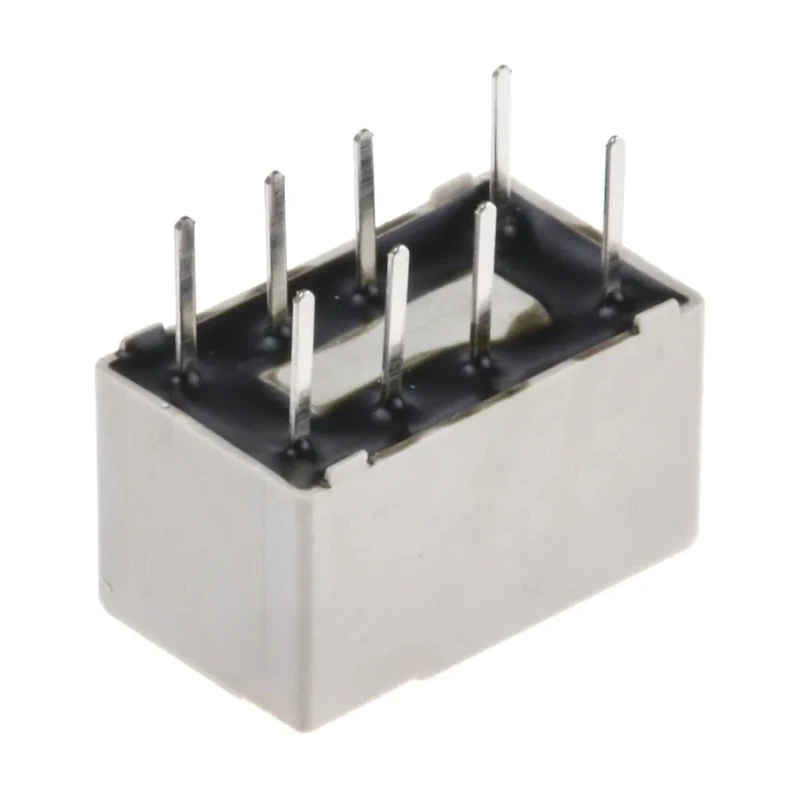

TE Connectivity PCB Signal Relay 4.5V DC Coil 2A DPDT IM Series 1-1462038-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Slimline IM series relay with a compact size of 10x6x5.65 mm for minimal PCB space usage.
- Features gold-plated bifurcated contacts for enhanced conductivity and reliability.
- Hermetically sealed construction providing IP67 rating and high mechanical shock resistance up to 300G.
- Low coil power consumption of 140mW ensuring energy-efficient operation.
- Suitable for switching AC voltage up to 250V and DC voltage up to 220V.
- Wide operating temperature range from -40°C to 85°C for versatile environmental conditions.
- High insulation resistance greater than 10⁹Ω at 500V DC to prevent leakage currents.
- Compliance with RoHS standards and high surge capability meeting Telcordia GR 1089 and FCC Part 68 requirements.
Product Description
TE Connectivity 1-1462038-2 PCB Signal Relay belongs to the IM Series, featuring a compact, slimline design tailored for PCB mounting. It operates with a 4.5V DC coil voltage and supports a switching current of 2A across DPDT contacts, ensuring reliable signal relay performance with low coil power consumption of 140mW. This relay occupies minimal board space, measuring just 10mm in length, 6mm in width, and 5.65mm in height, making it ideal for dense electronic assemblies.
The relay is hermetically sealed with an IP67 rating, offering excellent resistance to environmental factors and mechanical shocks up to 300G functional and 500G survival, suitable for demanding industrial and commercial environments. Its gold-plated bifurcated contacts provide consistent conductivity and durability, while the high insulation resistance exceeding 10⁹Ω at 500V DC ensures electrical isolation integrity. The relay can switch AC voltages up to 250V and DC voltages up to 220V, covering a wide range of applications.
Designed to meet international standards including RoHS compliance and surge withstand capabilities per Telcordia GR 1089, FCC Part 68, and ITU-T K20, 21, 45, this relay excels in telecommunication equipment, optical network terminals, office electronics, medical devices, automotive systems, and test & measurement instrumentation. Operating temperature ranges from -40° to 85°C further extend its applicability across varied environments.
Slimline compact size for efficient PCB space utilization. Gold-plated bifurcated contacts for reliable signal conduction. Hermetically sealed and IP67 rated enclosure for environmental resistance. High mechanical shock tolerance ensuring robust operation.
Low coil power saving energy in long-term use. Capable of switching high AC and DC voltages safely. Wide temperature range for versatile deployments. High insulation resistance and surge capability for electrical safety.
Compliant with global RoHS and telecommunication standards.
This PCB Signal Relay from TE Connectivity enhances performance and reliability in industrial, laboratory, telecommunications, HVAC, automotive, and manufacturing applications. Explore this product along with our extensive range of Signal Relays to find suitable solutions for your electronic control and switching needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this signal relay is 4.5V DC.
This model supports a maximum switching current of 2A across its DPDT contacts.

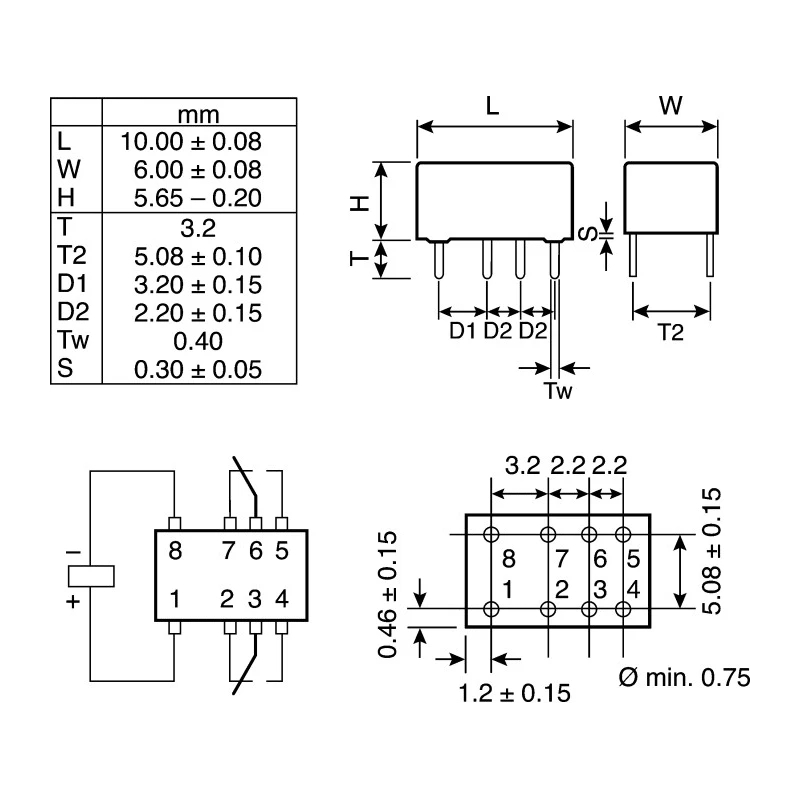

The relay measures 10mm in length, 6mm in width, and 5.65mm in height.
It has an IP67 rating, indicating it is hermetically sealed and resistant to environmental factors.
The operating temperature range for this relay is from -40°C to 85°C.
This relay can switch AC voltages up to 250V and DC voltages up to 220V.
The contacts of this relay are made of gold-plated material, enhancing conductivity and reliability.
The coil power consumption is 140mW, ensuring energy-efficient operation.
It has an insulation resistance greater than 10⁹Ω at 500V DC, preventing leakage currents.
This relay complies with RoHS standards and meets surge withstand capabilities per Telcordia GR 1089 and FCC Part 68.
This relay is designed for PCB mounting, making it suitable for compact electronic assemblies.
This relay is suitable for applications in telecommunications, optical network terminals, office electronics, medical devices, automotive systems, and test & measurement instrumentation.
