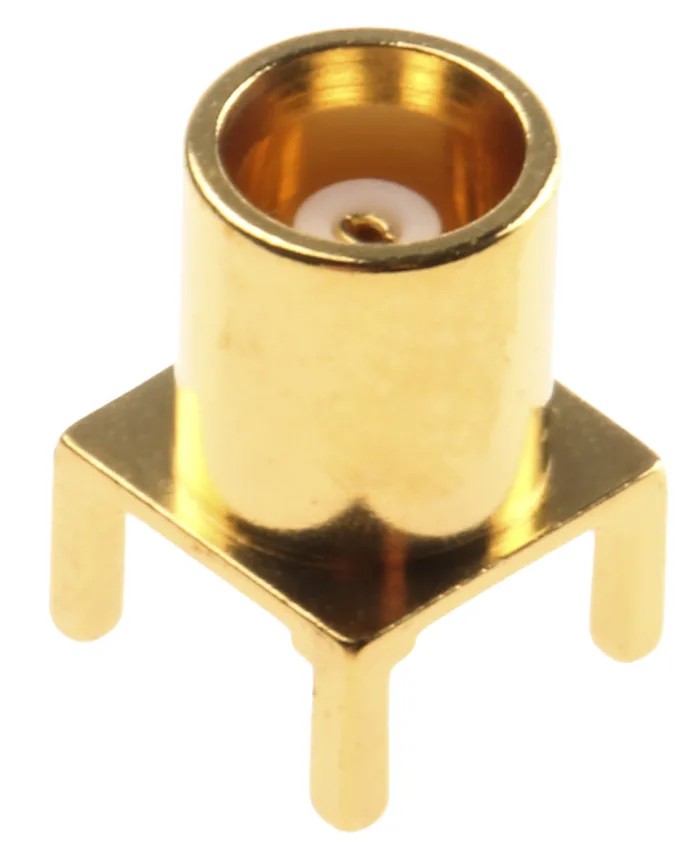

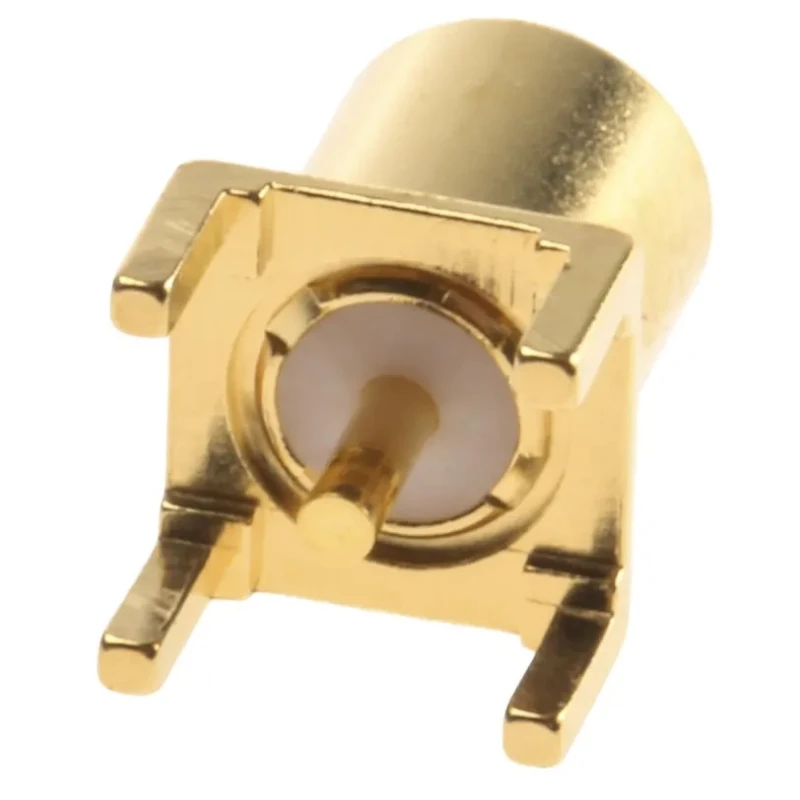

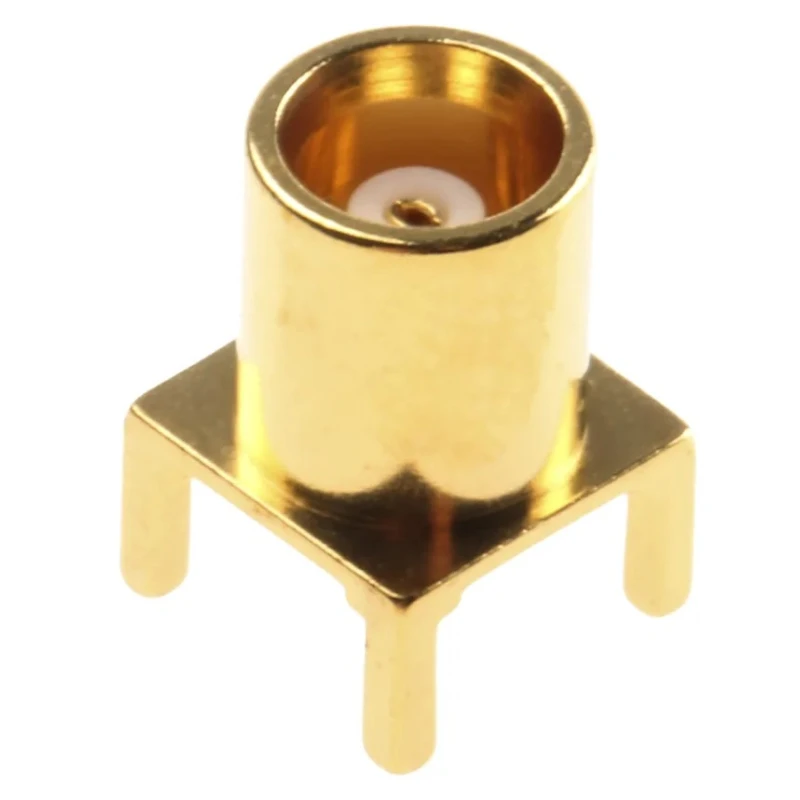

TE Connectivity Coaxial Connector Through Hole MCX 50 Ω Straight Body Solder 829558-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 829558-4 |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Termination Type | Solder |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
Key Features
- Features a lightweight microminiature snap-coupling design for reliable quick connect and disconnect function.
- Gold over nickel plating on body and contact for corrosion resistance and enhanced conductivity.
- Operates at frequencies up to 6 GHz suitable for video and broadcast applications.
- Constructed with beryllium copper contact material for durability.
- Designed for through hole PCB mounting ensuring secure attachment.
- Fully mateable with industry standard MCX connectors with solder termination.
- Compact, space-saving design ideal for dense packaging layouts.
- Supports high frequency signals maintaining 50 Ω impedance consistently.
Product Description
TE Connectivity 829558-4 Coaxial Connector Through Hole MCX is a precision-engineered electronic component designed for reliable high-frequency connections up to 6 GHz. This MCX type coaxial connector features a through hole mount with a straight body solder termination providing secure and durable PCB integration.
The connector employs a lightweight microminiature snap-coupling mechanism facilitating quick connect and disconnect cycles while supporting space-saving layouts, ideal in dense electronic assemblies or broadcast equipment. The body plating of gold over nickel combined with beryllium copper contact material plated similarly ensures enhanced conductivity, corrosion resistance, and sustained performance under industrial conditions.
Its characteristic 50 Ω impedance aligns with industry standards for RF signal transmission maintaining signal integrity across broadcast, video, and telecommunications applications. This product is fully mateable with other MCX connectors meeting industry specifications, allowing flexible system configurations.
The through hole mounting method provides sturdy mechanical fixation to the PCB, making the connector highly suitable for industrial, electronic manufacturing, telecommunications, and laboratory environments where precise and reliable RF connectivity is critical.
Lightweight microminiature snap-coupling design for quick and reliable connections. Gold over nickel plating to prevent corrosion and improve electrical contact. Operates effectively at frequencies up to 6 GHz. Beryllium copper contact material ensures durability and performance.
Through hole mounting type for solid PCB attachment. Straight body solder termination suitable for precise soldering applications. Industry standard MCX family compatibility ensures easy integration.
This TE Connectivity coaxial connector is a critical component in RF coaxial connectivity solutions used extensively in video signal transmission, broadcast systems, aerospace, and telecommunications infrastructure. Its dependable mechanical and electrical properties provide robust and high-performance connections essential for demanding industrial and commercial applications.
Explore a wide selection of high-quality coaxial Connectors and electronic components at EnvMart to meet your technical and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector operates effectively at frequencies up to 6 GHz, making it suitable for high-frequency applications such as video and broadcast systems.
It features a through hole mounting type, ensuring secure attachment to printed circuit boards (PCBs).
The connector maintains a characteristic impedance of 50 Ω, which is standard for RF signal transmission.
The contact material is beryllium copper, and it features gold over nickel plating on both the body and contact for enhanced conductivity and corrosion resistance.
This model uses a solder termination type, suitable for precise soldering applications on PCBs.
The specific dimensions and weight are not provided in the available data. For detailed specifications, please refer to the manufacturer's documentation or inquire directly.
It is suitable for applications in RF connectivity solutions, including video signal transmission, broadcast systems, aerospace, and telecommunications infrastructure.
It features a straight body design with a lightweight microminiature snap-coupling mechanism for quick connect and disconnect functionality.
The coaxial connector is manufactured in India.
The gold over nickel plating on the body and contact enhances conductivity and provides corrosion resistance, ensuring reliable performance in various environments.
Its compact, space-saving design is ideal for dense packaging layouts, making it suitable for electronic assemblies where space is limited.
