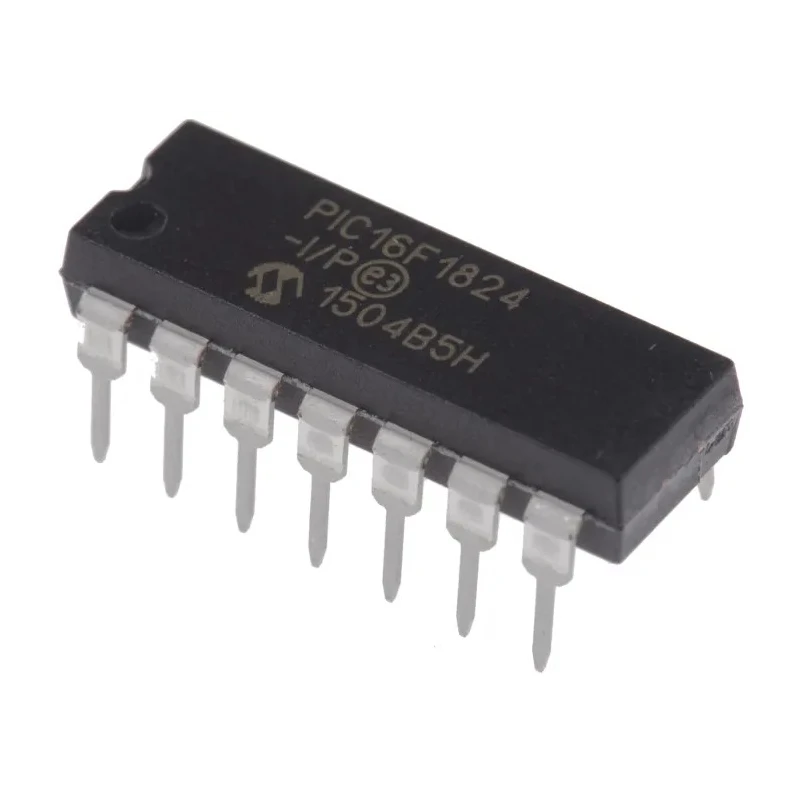

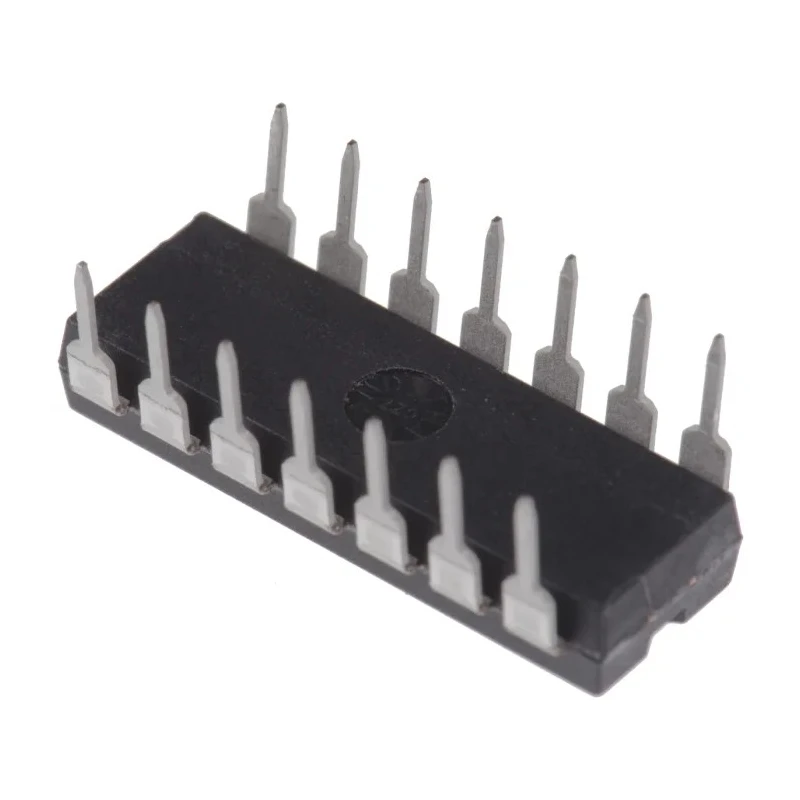

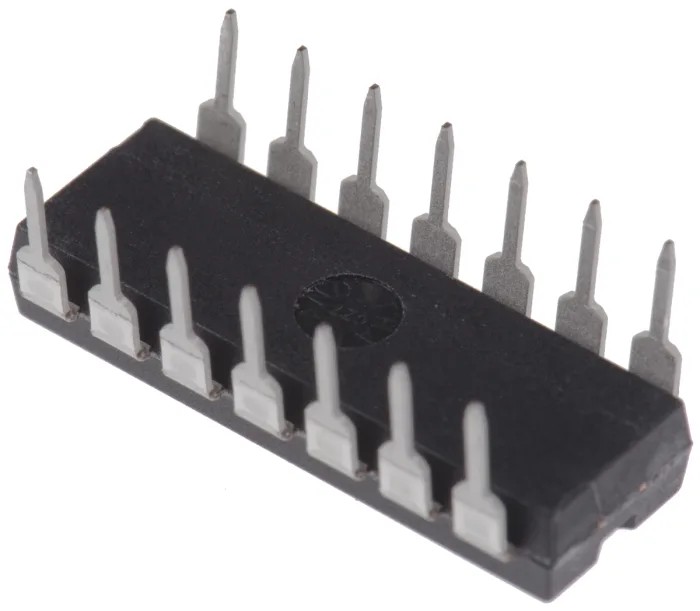

Microchip 8 bit PIC Microcontroller PIC16F1824-I/P, 32 MHz CPU Speed, 4kB Flash Memory, 14-Pin PDIP PIC16F1824-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | PIC16F1824-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512kB |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 4kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates on enhanced mid-range PIC architecture with 49 instructions and a 16-level hardware stack.
- Supports up to 8 MIPS processing speed with 512 bytes RAM and data EEPROM.
- Includes a configurable internal oscillator with ±1% frequency accuracy.
- Features 12 programmable I/O pins, 2 analog comparators, and 8 channels of 10-bit ADC.
- Equipped with multiple timers, CCP and ECCP modules, and serial communication interfaces including SPI, I2C, and EUSART.
- Supports power and safety features like Power-On Reset, Brown-Out Reset, and Extended Watchdog Timer.
- Designed for operating voltage range of 1.8V to 5.5V with temperature range from -40°C to 85°C.
- Small footprint with 14-pin PDIP package, ideal for embedded applications.
Product Description
Microchip PIC16F1824-I/P is an 8-bit microcontroller designed with Microchip’s enhanced mid-range core, delivering up to 32 MHz CPU speed and 4kB of FLASH program memory in a compact 14-pin PDIP package. It provides 12 programmable I/O lines, 512 bytes of RAM, and onboard data EEPROM for flexible data storage.
This microcontroller features a highly configurable internal oscillator with an accuracy of ±1%, multiple integrated peripherals including two analog comparators and an 8-channel 10-bit analogue-to-digital converter, making it suitable for diverse embedded applications.
Additional functionalities include multiple timers (five in total), two Capture/Compare/PWM modules, and enhanced serial communication capabilities via SPI, I2C, and EUSART interfaces. Safety and reliability are addressed through Power-On Reset, Brown-Out Reset, Extended Watchdog Timer, and Low-Voltage Programming support.
The device operates over a supply voltage range of 1.8V to 5.5V, ensuring compatibility with various power sources, and can function within industrial temperature limits from -40°C to 85°C. Its small footprint - with dimensions of 19.05mm length, 6.35mm width, and 3.3mm height - makes it ideal for space-constrained designs.
This 14-pin microcontroller is programmed via In-Circuit Serial Programming and supports In-Circuit Debug, enabling efficient development and testing cycles. It finds applications in sectors such as industrial automation, consumer electronics, automotive systems, and instrumentation.
Operates at a maximum clock frequency of 32 MHz with RISC architecture delivering 49 instructions. Includes 8 channels of 10-bit ADC for precise analog measurements. Equipped with mTouch capacitive sensor module support for 8-channel touch sensing.
Supports low power technologies to improve energy efficiency in embedded systems. Package type: 14-pin PDIP for through-hole mounting, suitable for prototyping and production.
Explore related Microchip Microcontrollers to find tailored solutions for embedded design requirements. EnvMart offers detailed product information and support resources for efficient integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 32 MHz.
This model has a program memory size of 4 kB.
It operates within a voltage range of 1.8V to 5.5V.
This microcontroller features 12 programmable I/O pins.
It is packaged in a 14-pin PDIP configuration for through-hole mounting.
The operating temperature range is from -40°C to 85°C.
It supports serial communication interfaces including SPI, I2C, and EUSART.
The PIC16F1824-I/P includes 2 analog comparators.
It has a RAM size of 512 bytes.
This microcontroller is equipped with 5 timers.
It features 8 channels of 10-bit ADC for analog measurements.
The microcontroller uses a RISC instruction set architecture.
