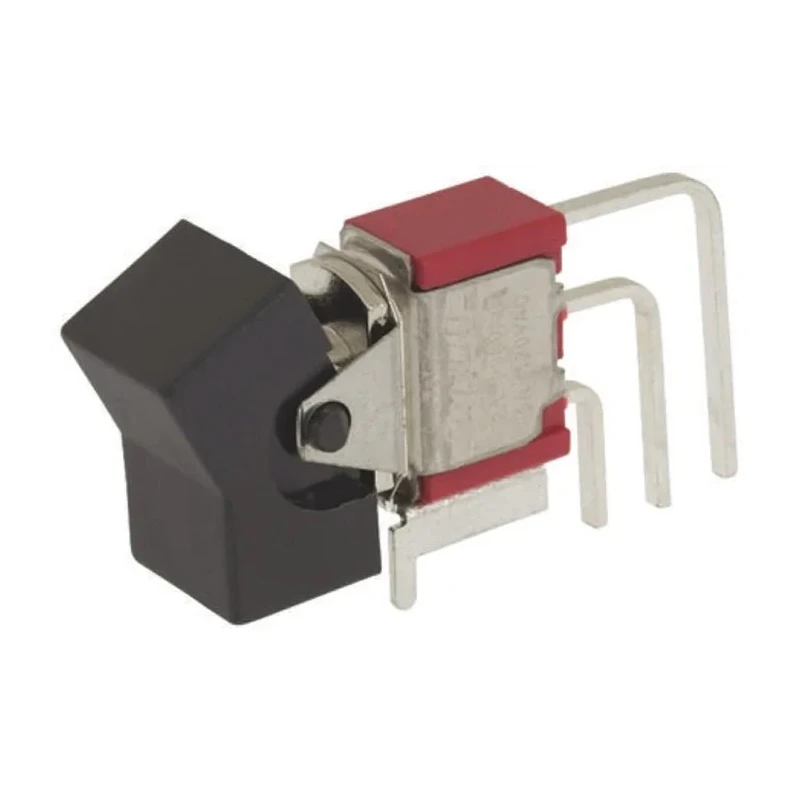

TE Connectivity SPDT On-On On-(On) Thermoplastic Housing Rocker Switch PCB Mount Gemini A Series 5A 28V DC 125V 1-1571986-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Mount Type | PCB |
| Housing Material | Thermoplastic |
| Series | Gemini A |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 17.96 x 10.62 mm |
| Terminal type | Plug-In |
| Switch Operation | On-On |
| Actuator Colour | Black |
| Contact DC Voltage | 28V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 5A |
| Mechanical Life | 400000Operations |
| Contact AC Voltage | 125V ac |
Key Features
- SPDT switch configuration with On-On On-(On) operation.
- Thermoplastic housing ensures durability and electrical insulation.
- Panel cutout size measures 17.96 x 10.62 mm for easy installation.
- Supports switch contact current of 5A with 28V DC and 125V AC ratings.
- Plug-in terminal type and PCB mount style for efficient connectivity.
- Operational temperature range from -30°C to +85°C suitable for various environments.
- Mechanical life rated for 400,000 operations ensuring long-lasting performance.
- Black rectangular actuator offers clear tactile feel and aesthetic appeal.
Product Description
TE Connectivity 1-1571986-1 is a high-quality SPDT rocker switch from the Gemini A Series, designed for PCB mounting applications. This On-On On-(On) switch configuration provides multiple switching options with reliable operation. The thermoplastic housing offers excellent durability and electrical insulation, making it suitable for industrial and commercial electrical applications.
The actuator is styled as a black rectangular shape to complement modern switch designs and provide easy actuation. It requires a panel cutout sized 17.96 x 10.62 mm for proper installation. The plug-in terminal type facilitates straightforward connection to printed circuit boards enhancing production efficiency and maintenance.
The switch supports a current rating of 5A, with maximum allowable contact voltages of 28V DC and 125V AC. This makes it compatible with a broad range of low-voltage control systems. Its operational temperature range of -30°C to +85°C allows for reliable usage in varied environmental conditions, including industrial automation, electrical machinery, and control panels.
With a mechanical lifespan of 400,000 operations, this switch assures durability and reliable repetitive use. The switch does not feature illumination but is engineered for seamless integration into complex automation systems.
This product is manufactured in China and is ideal for applications in electrical, industrial automation, manufacturing, HVAC control panels, and other electronics requiring dependable switching solutions.
SPDT switch configuration with On-On On-(On) operation. Thermoplastic housing ensures durability and electrical insulation. Panel cutout size measures 17.96 x 10.62 mm for easy installation. Supports switch contact current of 5A with 28V DC and 125V AC ratings.
Plug-in terminal type and PCB mount style for efficient connectivity. Operational temperature range from -30°C to +85°C suitable for various environments. Mechanical life rated for 400,000 operations ensuring long-lasting performance.
Black rectangular actuator offers clear tactile feel and aesthetic appeal. Explore our Electronics & Electricals catalog on EnvMart for more rugged and precision-engineered switches like this TE Connectivity Rocker Switch.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switch contact current of 5A.
It has maximum allowable contact voltages of 28V DC and 125V AC.
The operational temperature range is from -30°C to +85°C.
The required panel cutout size for installation is 17.96 x 10.62 mm.
This switch is designed for PCB mounting.
It has a mechanical life rated for 400,000 operations.
The housing is made of thermoplastic, providing durability and electrical insulation.
It features a black rectangular actuator style.
It utilizes a plug-in terminal type for efficient connectivity.
This switch is part of the Gemini A Series by TE Connectivity.
This model does not feature illumination.
This rocker switch is manufactured in China.
