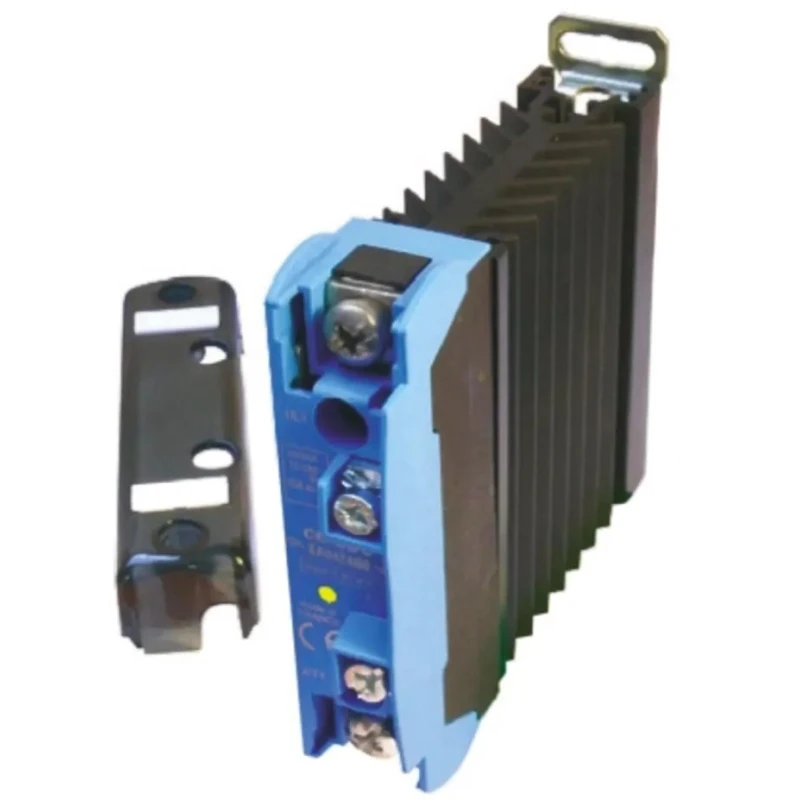

Celduc SAL9-SAM9 Series Solid State Relay, 23 A Load, DIN Rail Mount, 280V ac Load, 32V dc Control SAL9-SAM9
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 73.5mm |
| Length | 91mm |
| Model | SAL9-SAM9 |
| IP Rating | IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Output type | Thyristor |
| Series | SAL9-SAM9 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 23A |
| Standards/Approvals | CE, EAC |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 12V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Operates with a maximum load voltage of 280V ac.
- Control voltage ranges from 3V dc minimum to 32V dc maximum.
- Equipped with screw terminals for secure connections.
- Compact dimensions of 91mm length, 35mm width, and 73.5mm height.
- Features Zero Cross Switching for reduced electrical noise.
- Designed to operate in temperatures ranging from -40°C to 80°C.
- IP20 rated enclosure provides protection against solid objects.
- Off state leakage current of only 1mA.
Product Description
Celduc SAL9-SAM9 Series Solid State Relay offers robust and efficient switching solutions for industrial and automation applications. With a maximum load current of 23A and a load voltage rating of 280V ac, it is especially designed for resistive loads.
This relay features DIN rail mounting, making it suitable for integration into control panels and industrial distribution boards. The control voltage ranges from 3V dc to 32V dc, offering wide compatibility with various control circuits.
Constructed with screw terminals, it ensures reliable and secure electrical connections. The compact form factor with dimensions of 91mm length, 35mm width, and 73.5mm height saves space in installations.
Equipped with zero cross switching technology, it minimizes electrical noise and enhances switching efficiency, protecting connected loads from inrush currents. The operating temperature range from -40°C to 80°C permits it to function effectively in diverse environments.
Protection rating of IP20 safeguards the relay against solid objects larger than 12 mm, while the thyristor output type ensures fast and reliable switching. The off state leakage current is minimal at 1mA, resulting in efficient energy usage during inactive periods.
Operates with a maximum load voltage of 280V ac. Control voltage range of 3V dc to 32V dc. Screw terminal type for strong connection. Compact dimensions: 91mm x 35mm x 73.5mm. Zero cross switching reduces electrical noise.
Temperature tolerance from -40°C to 80°C. IP20 rated for basic protection. Thyristor output type for reliability. Low off state leakage current of 1mA. Manufactured in France with CE and EAC certifications.
This solid state relay is widely applicable in industrial automation, machinery control, HVAC systems, and electrical equipment control. Its design ensures long-term reliability and stable operation in demanding industrial environments.
Explore more Solid State Relays and control components in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 23A.
The control voltage range for the SAL9-SAM9 is from 3V dc to 32V dc.
It can handle a maximum load voltage of 280V ac.
The dimensions are 91mm in length, 35mm in width, and 73.5mm in height.
This model supports DIN rail mounting, making it suitable for control panels and industrial distribution boards.
It operates effectively in temperatures ranging from -40°C to 80°C.
It features zero cross switching, which reduces electrical noise and enhances switching efficiency.
The off state leakage current is minimal at 1mA.
It is equipped with screw terminals for secure electrical connections.
The relay is certified with CE and EAC standards.
The output type is thyristor, ensuring fast and reliable switching.
The relay has an IP20 rating, providing protection against solid objects larger than 12 mm.
