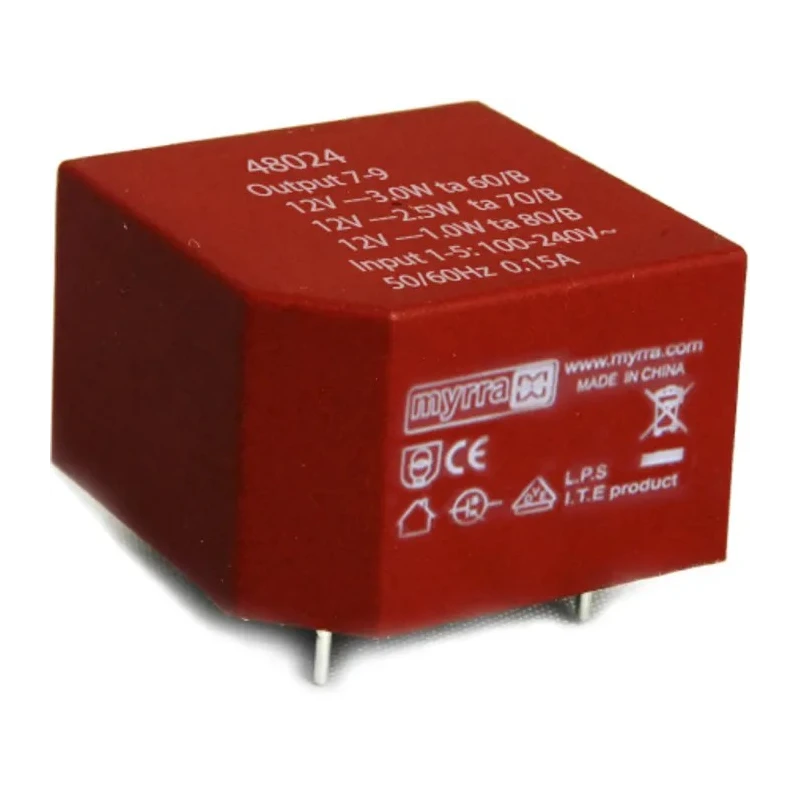

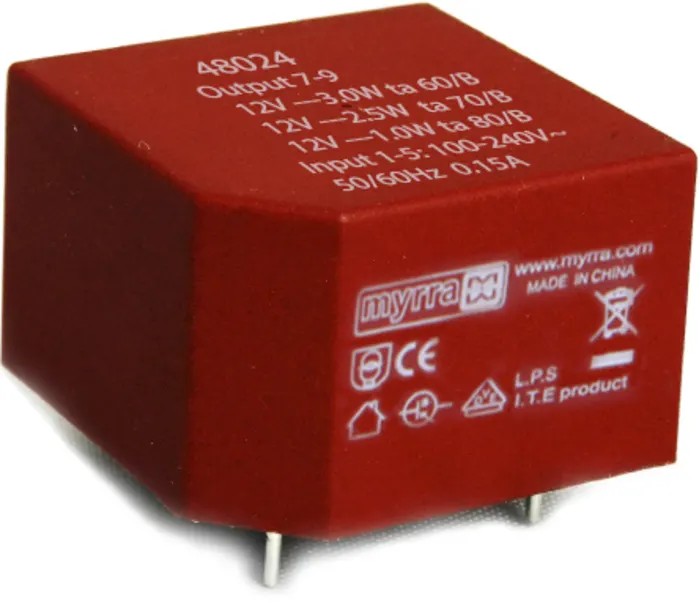

Myrra PCB Transformer 12V DC Output, 3W Power, Single Output, PCB Mount 48024

Name: Myrra PCB Transformer 12V DC Output, 3W Power, Single Output, PCB Mount 48024
Brand: Myrra
SKU: 254877
Price: 10.15 USD
Availability: InStock



Category PCB Transformer Brand Myrra Condition New

Specifications

Country of Origin	China
Brand	Myrra
Power	3W
Efficiency	72%
Length	25mm
Model	48024
Depth	16mm
Gross Weight	16g
Width	16mm
Mount Type	PCB
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Output Range	3.3VDC - 24VDC
Input Range	85VAC - 265VAC/47 - 63Hz Or 120VDC - 370VDC
Materials	Plastic And Resin
Standards/Approvals	CE, UL, RoHS, ENEC, VDC
Primary Voltage	340 V dc, 240 V ac
Secondary Voltage	12 V dc
Minimum Operating Frequency	47Hz
Maximum Operating Frequency	63Hz
Encapsulated Design And Same Footprint As 20 Transformer	Upgrade Your Application Without Redesign Of PCB

Key Features

Provides a regulated single 12 V DC output at 3 W power.
Operates with input voltage ranges of 85 VAC to 265 VAC and 120 VDC to 370 VDC.
Compact dimensions of 25 mm length, 16 mm width, and 16 mm depth for easy PCB integration.
Encapsulated plastic and resin design ensures durability and insulation.
Supports operating temperature from -25°C to 80°C with 72% efficiency.
Low standby power consumption less than 0.15 W enhances energy efficiency.
Meets industry standards including CE, UL, RoHS, ENEC, and VDC certifications.
Designed for applications requiring compact PCB transformers with reliable performance.

Product Description

The Myrra 48024 PCB Transformer is a small, compact power transformer designed for printed circuit board mounting applications. It provides a single regulated output of 12 V DC at a power rating of 3 W, suitable for electronic components requiring stable low voltage power supply.

This transformer supports wide input ranges from 85 VAC to 265 VAC at frequencies of 47 Hz to 63 Hz, as well as DC input from 120 VDC up to 370 VDC, enabling compatibility with various power sources.

Measuring only 25 mm in length, 16 mm in width, and 16 mm in depth, the unit features a robust encapsulated design made from plastic and resin materials, offering electrical insulation and protection against environmental factors.

It operates efficiently at 72% with a minimum operating temperature as low as -25°C and maximum operating temperature up to 80°C. The low standby power consumption below 0.15 W assists in reducing overall power usage in systems.

Single 12 V DC output at 3 W power rating. Supports primary voltage inputs of 340 V DC and 240 V AC. Compact size for easy PCB mounting integration. Encapsulated plastic and resin construction. Wide operating temperature range from -25°C to 80°C with 72% efficiency.

Complies with CE, UL, RoHS, ENEC, and VDC standards. Designed for use in industrial, electronic manufacturing, and power supply applications.

These features make the Myrra 48024 ideal for use in industrial, manufacturing, laboratory, and commercial electronic power supply designs requiring reliable and compact transformer solutions.
