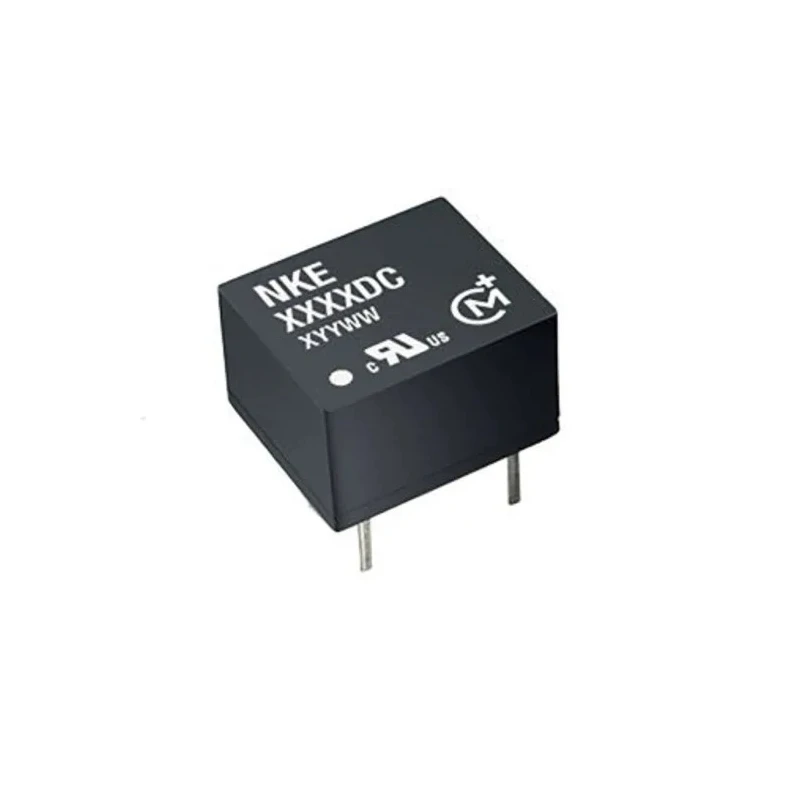

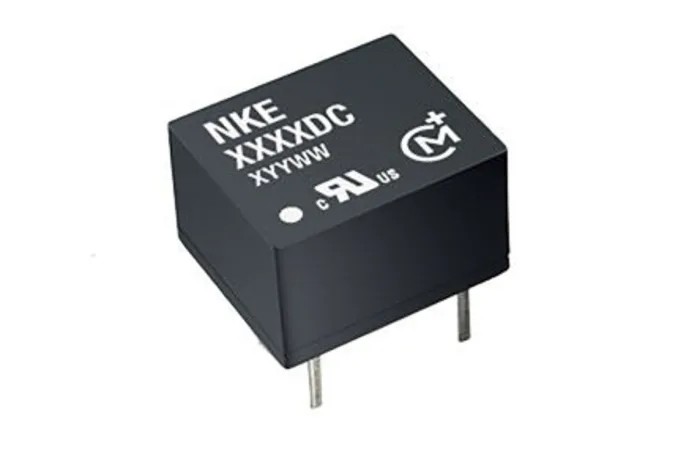

Murata Power Solutions DC/DC Converter, 3.3V DC, 303mA Output, 4.5-5.5V Input, 1W, Through Hole, 85°C Max Temp NKE0503DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 72% |
| Length | 11.5mm |
| Model | NKE0503DC |
| Depth | 5.4mm |
| Gross Weight | 1.25g |
| Width | 5.4mm |
| Mount Type | Through Hole |
| Series | NKE |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4105000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 303mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 3kV dc |
Key Features
- Isolated single output design with 3kV DC isolation.
- Through hole mount type with DIP package ensures easy PCB integration.
- High efficiency of 72% for optimized power consumption.
- Operates reliably between -40°C to 85°C ambient temperature.
- Compact dimensions of 11.5mm length, 5.4mm width, and 5.4mm depth.
- Low ripple and noise typical of 100mV peak-to-peak ensures stable output.
- 6-pin configuration suitable for various electronic applications.
- RoHS compliant with UL 94V-0 fully encapsulated package material.
Product Description
Murata Power Solutions NKE0503DC is a compact 1W DC/DC converter providing a regulated 3.3V DC output at 303mA current from a 4.5V to 5.5V DC input range. It is designed for use in industrial and electronic circuit applications where an isolated power supply module is required. With 3kV DC isolation and a fully encapsulated DIP package, it offers robust performance and excellent reliability.
The through hole mounting and DIP package style facilitate easy installation on printed circuit boards in power supply and control systems. The module operates efficiently at 72%, minimizing heat generation while maintaining stable voltage output with ripple and noise at just 100mV peak-to-peak. Its operating temperature range of -40°C to 85°C enables usage in harsh environments commonly found in industrial, instrumentation, and communication equipment.
This unit complies with RoHS standards, utilizing UL 94V-0 flame retardant encapsulated material for enhanced safety. With a mean time between failures (MTBF) rated at 4,105,000 hours, it ensures long life and reliability in demanding applications such as instrumentation, medical devices, industrial automation, and power management systems.
Isolated single output DC/DC converter suitable for various electronics applications. Compact DIP package eases PCB integration and assembly. Narrow input voltage range of 4.5 - 5.5V DC for stable power supply conversion.
High isolation voltage of 3kV DC for safety and noise immunity. Efficient operation with 72% power efficiency reduces power losses. Wide operating temperature range supports industrial and harsh environments. Fully encapsulated construction provides durability and protection.
Low output ripple and noise ensure signal integrity in sensitive electronics.
This DC/DC converter from Murata Power Solutions is ideal for industrial power supplies, instrumentation, communication systems, and embedded device power management. Explore our extensive selection of DC/DC Converters and power modules at EnvMart to find the perfect fit for your electronic power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 3.3V DC with an output current of 303mA.
It operates within a narrow input voltage range of 4.5V to 5.5V DC.
The maximum output power of this DC/DC converter is 1W.
It has an efficiency rating of 72%, which helps optimize power consumption.
The compact dimensions of this unit are 11.5mm in length, 5.4mm in width, and 5.4mm in depth.
This model features a high isolation voltage of 3kV DC for safety and noise immunity.
It operates reliably within a temperature range of -40°C to 85°C.
It is designed for through hole mounting, which facilitates easy installation on printed circuit boards.
The output ripple and noise is typically 100mV peak-to-peak, ensuring stable output.
This unit has a single output configuration.
It is RoHS compliant, ensuring it meets environmental safety standards.
The MTBF for this model is rated at 4,105,000 hours, indicating its reliability in demanding applications.
