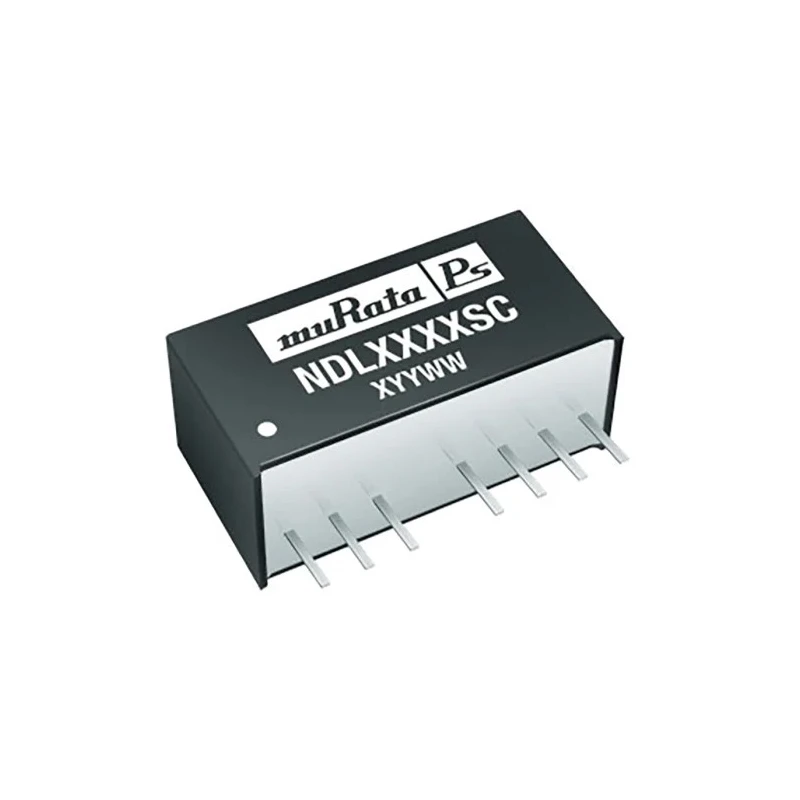

Murata Power Solutions Regulated Isolated DC/DC Converter SIP8 Module 1 kV Isolation 5V Output 1 W 18-36V Input NDL2405SC

Murata Power Solutions NDL2405SC is a highly reliable and efficient regulated isolated DC/DC converter designed for industrial, telecommunications, and instrumentation applications requiring stable 5V DC output power from a DC input source ranging between 18V and 36V. This SIP8 module provides galvanic isolation of 1kV DC enhancing system safety and noise immunity.

The converter is encapsulated in a UL 94V-0 compliant package that is robust for harsh industrial environments with an operating temperature range from -40°C to 85°C. It features a through-hole mount type facilitating secure placement on printed circuit boards and supports remote on/off control along with continuous short circuit protection through current fold back, ensuring longevity and system protection.

The unit delivers a maximum output power of 1 Watt at 5 V with a low output ripple and noise of 100 mV peak-to-peak, and operates at a 2:1 wide input voltage ratio. It is designed to meet RoHS standards and achieves an efficiency of around 74%, which is beneficial for energy-sensitive applications.

Its compact size with dimensions of 21.8 mm (length) by 11.1 mm (width) by 11.2 mm (depth) and a light weight of 5 grams make it suitable for dense PCB layouts without compromising performance. The product’s high MTBF rating of 1,722,000 hours emphasizes its durability and reliability in continuous industrial use.

Typical applications include industrial automation systems, communication equipment, instrumentation, and power management modules in sensitive electronic assemblies. The module's isolated output is essential for protecting downstream circuits and enhancing overall device safety.

Operates with wide input voltage range of 18V to 36V DC. Provides high isolation voltage of 1 kV DC for safety assurance. Through-hole SIP8 packaging for robust board mounting. Efficient 74% conversion with low ripple and noise.

Extensive temperature range for varied environments (-40°C to 85°C). Continuous short circuit protection with current fold back included. Remote on/off control capability. Compact dimensions 21.8 x 11.1 x 11.2 mm and 5 g weight.

MTBF approximately 1,722,000 hours. Explore the extensive range of DC/DC Converters offered by Murata Power Solutions on EnvMart for reliable industrial power conversion solutions.
