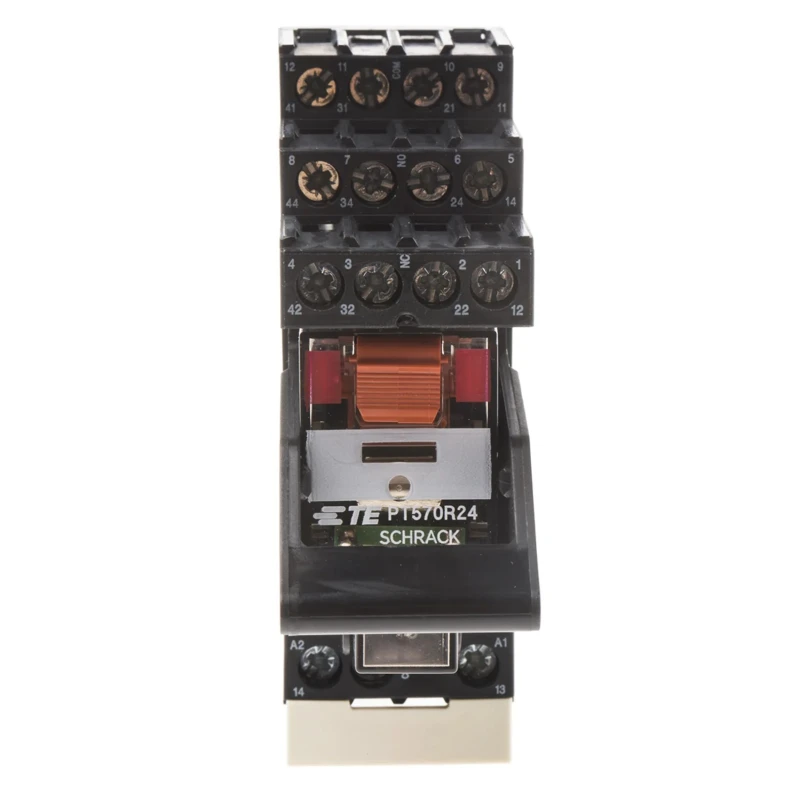

TE Connectivity DIN Rail Power Relay 24V AC Coil, 6A Switching Current, 4PDT PT5L7RC4 1-1415535-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT5L7RC4 1-1415535-1 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 192Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 240V ac |
| Coil Power | 1W |
| Finder 58 Series Interface Relay, DIN Rail, 24V ac Coil, 4PDT, 53mABrand | Finder |
Key Features
- Features a screw terminal type for secure electrical connections.
- Designed for DIN Rail mounting suitable for various industrial applications.
- Operates reliably between -40°C and 70°C ambient temperature.
- Coil resistance is 192Ω with coil power consumption of 1 watt.
- Constructed with silver nickel alloy contact material to ensure durability and conductivity.
- Complies with IEC 61810-1 standards and holds VDE, UL, RoHS, and IEC approvals.
- Includes a mechanical and electrical indicator with a manual test tab for easy operation check.
- Package includes relay, DIN rail socket, module, retainer, and marking tab for comprehensive installation.
Product Description
TE Connectivity PT5L7RC4 1-1415535-1 DIN Rail Power Relay is engineered for industrial and automation use, providing robust switching performance with a 24V AC coil voltage and a 6A switching current capacity. Its 4PDT contact configuration offers versatile electrical control across multiple circuits.
This power relay is designed to mount on standard DIN Rails, enabling easy installation and compatibility with control panels and automation equipment. The relay is built with screw terminals for secure and stable electrical connections, enhancing reliability in demanding environments.
Operating temperature ranges from -40°C to 70°C ensure that the relay performs consistently under diverse environmental conditions. The coil resistance of 192Ω and a coil power of 1 watt reflect energy-efficient operation. The contact material, silver nickel alloy, guarantees excellent conductivity and long service life.
Compliance with international standards such as IEC 61810-1 alongside approvals from VDE, UL, and RoHS certifies the product's safety and environmental compliance, making it suitable for domestic, commercial, and industrial automation projects.
Features a screw terminal type for secure electrical connections. Designed for DIN Rail mounting suitable for various industrial applications. Operates reliably between -40°C and 70°C ambient temperature. Coil resistance is 192Ω with coil power consumption of 1 watt.
Constructed with silver nickel alloy contact material to ensure durability and conductivity. Complies with IEC 61810-1 standards and holds VDE, UL, RoHS, and IEC approvals. Includes a mechanical and electrical indicator with a manual test tab for easy operation check.
Package includes relay, DIN rail socket, module, retainer, and marking tab for comprehensive installation.
This relay is ideal for use in industrial automation, control systems, HVAC equipment, manufacturing machinery, and electrical panels requiring reliable switching performance. Its design supports enhanced operational safety and easy diagnostics for technicians.
Explore other related power relay components and accessories on EnvMart to complete your control system needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 6A.
The coil voltage for this model is 24V AC.
It features a 4PDT (four pole double throw) contact configuration.
The dimensions of the relay are 78.3mm in height, 77mm in length, and 27.2mm in width.
It operates reliably between -40°C and 70°C.
This model uses screw terminals for secure electrical connections.
The coil resistance is 192Ω.
It complies with IEC 61810-1 standards and holds VDE, UL, and RoHS approvals.
The coil power consumption is 1 watt.
The contact material is silver nickel alloy, ensuring good conductivity.
The package includes the relay, DIN rail socket, module, retainer, and marking tab for installation.
It is suitable for industrial automation, control systems, HVAC equipment, and manufacturing machinery.
