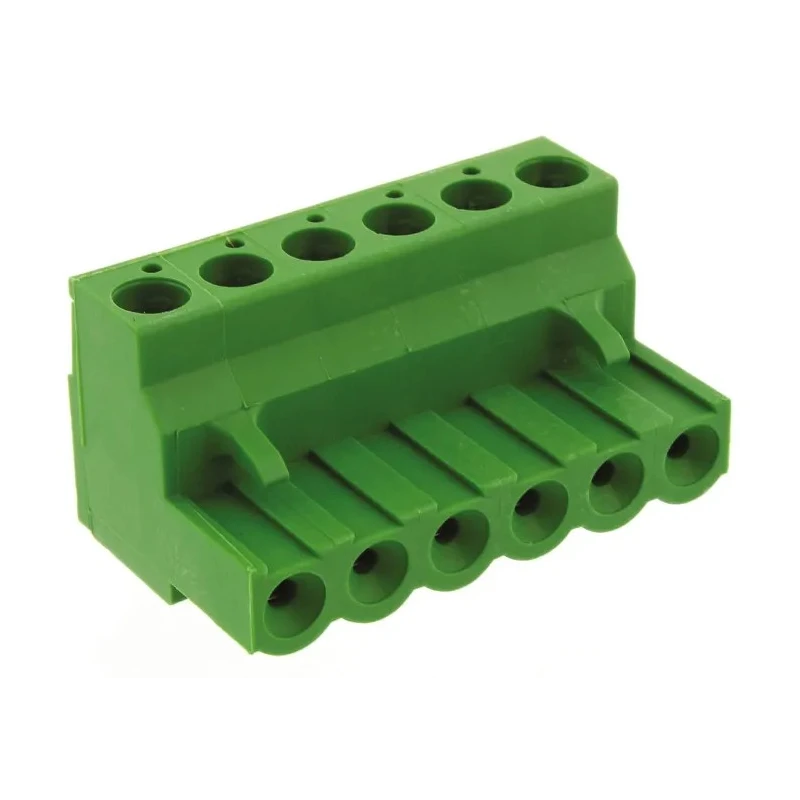

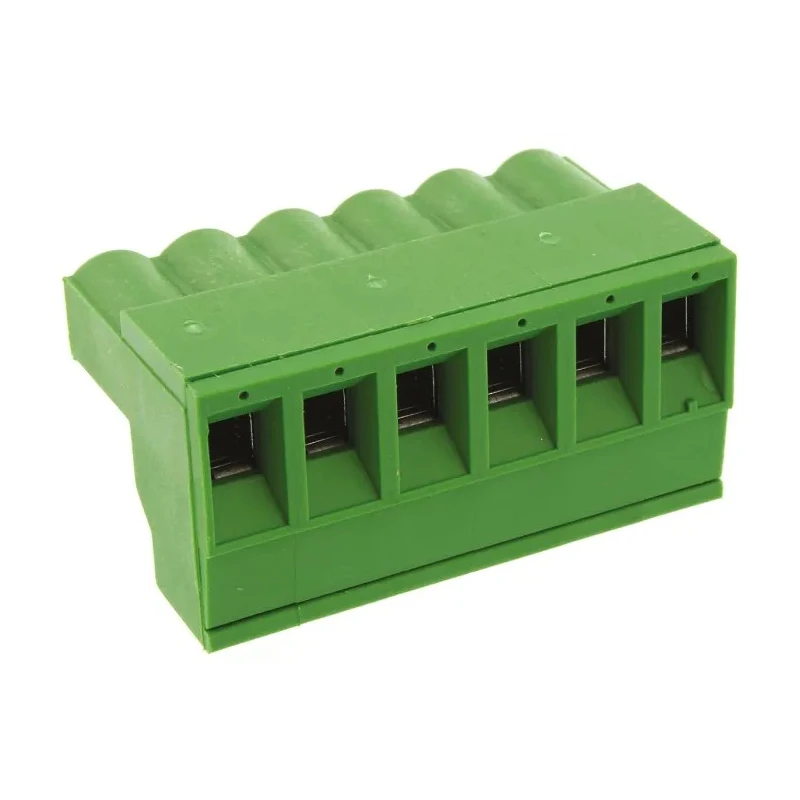

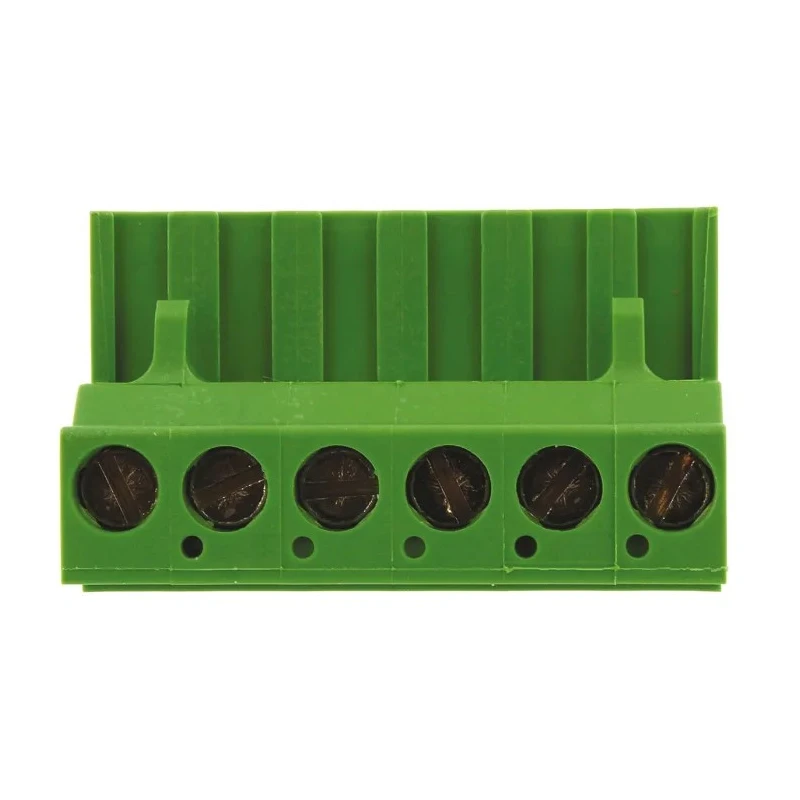

TE Connectivity Buchanan Series Pluggable Terminal Block 6-Contact 5.08 mm Pitch Right Angle Mount 300V AC 15A 796634-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 10.16mm |
| Model | 796634-6 |
| Depth | 18.4mm |
| Width | 15.5mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | UL no E 60677, RoHS, CSA File no 007189A |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Screw |
Key Features
- Rated for 15A current and 300V AC voltage for reliable power transmission.
- Constructed from green polyamide housing offering durability and corrosion resistance.
- Supports wire sizes from 30 AWG to 12 AWG, accommodating a wide range of wiring needs.
- Utilizes screw type wire connection method for secure and stable termination.
- Compact dimensions with a length of 10.16 mm, width of 15.5 mm, and depth of 18.4 mm.
- Designed with a rising clamp side entry terminal and provided with open screws to reduce assembly time.
- Suitable for industrial and electrical control applications including power connectors and electronics components.
- Complies with UL no E 60677, RoHS directives, and CSA File no 007189A standards ensuring quality and safety.
Product Description
TE Connectivity 796634-6 is a high-quality Buchanan Series pluggable terminal block designed for electronic and electrical power connector applications. This 6-contact, 5.08 mm pitch terminal block supports right angle mounting which maximizes PCB area efficiency while offering rugged mechanical and electrical performance.
The terminal block is constructed with a robust green polyamide housing providing excellent resistance to corrosive environments and longevity in demanding industrial setups.
Rated for 300V AC voltage and a continuous current of 15A, this model accommodates a wire size range of 30 AWG to 12 AWG, providing a versatile connector solution for various wiring requirements.
The screw wire connection method along with the rising clamp design ensures secure and reliable electrical contact, with open screws supplied to facilitate quicker assembly. Compact dimensions (length 10.16 mm, width 15.5 mm, depth 18.4 mm) allow this terminal block to be efficiently used in dense electronic assemblies and industrial control panels.
TE Connectivity's 796634-6 terminal block meets internationally recognized standards including UL no E 60677, CSA File no 007189A, and RoHS compliance, making it suitable for applications in electronics manufacturing, automation control gear, industrial machinery, and power distribution systems.
Rated for 15A current and 300V AC voltage for reliable power transmission. Constructed from green polyamide housing offering durability and corrosion resistance. Supports wire sizes from 30 AWG to 12 AWG, accommodating a wide range of wiring needs.
Utilizes screw type wire connection method for secure and stable termination. Compact dimensions with a length of 10.16 mm, width of 15.5 mm, and depth of 18.4 mm. Designed with a rising clamp side entry terminal and provided with open screws to reduce assembly time.
Suitable for industrial and electrical control applications including power Connectors and electronics components. Complies with UL no E 60677, RoHS directives, and CSA File no 007189A standards ensuring quality and safety.
Explore other TE Connectivity products and related pluggable terminal blocks in EnvMart for efficient electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 15A.
It is rated for 300V AC voltage, ensuring reliable power transmission.
This unit supports wire sizes ranging from 30 AWG to 12 AWG, accommodating various wiring needs.
The contact pitch is 5.08 mm, which is standard for this type of connector.
The compact dimensions are 10.16 mm in length, 15.5 mm in width, and 18.4 mm in depth.
It utilizes a screw type wire connection method for secure and stable termination.
The housing is constructed from green polyamide, providing durability and corrosion resistance.
It complies with UL no E 60677, RoHS directives, and CSA File no 007189A standards.
This model is designed for right angle mounting, which helps maximize PCB area efficiency.
This terminal block has 6 contacts, allowing for multiple connections in a compact form.
The country of origin for this terminal block is India.
