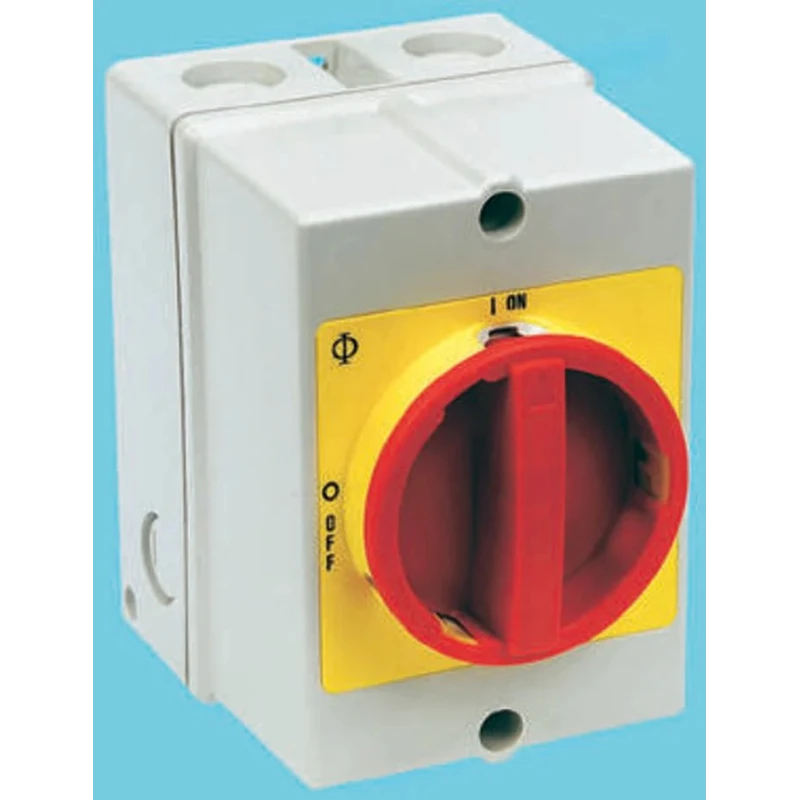

Kraus & Naimer 4-Pole Surface Isolator Switch, IP67, IP66, 40A, 15 kW
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Kraus & Naimer |
| Length | 190mm |
| Model | IP67 |
| Depth | 110mm |
| IP Rating | IP67, IP66 |
| Width | 100mm |
| Mount Type | Surface |
| Series | KG |
| Minimum Operating Temperature | 55°C |
| Switching Current | 40A |
| Terminal type | Wire |
| Electrical Phase | 3 |
| Handle Colour | Yellow, Red |
| Number of Poles | 4 |
| Standards/Approvals | UR, CSA, CCC |
| Switching AC Voltage | 240V ac |
| Switching Power | 15kW |
| Kraus & Naimer 4-Pole Surface Isolator Switch -, IP65, 40A, 5.5 WBrand | Kraus & Naimer |
| RS PRO 4-Pole DIN Rail Isolator Switch -, IP65, 40A, 15 kWBrand | RS PRO |
Key Features
- Equip with a 4-pole design for secure disconnection in three-phase systems.
- Surface mount type with high-impact polycarbonate enclosure ensures durability.
- Rated for 40A switching current and 15 kW power handling capacity.
- IP67 and IP66 protection rating provides resistance to dust and water ingress.
- Switch handle in yellow and red colors for clear operational indication.
- Operating temperature range up to 55°C suitable for harsh environments.
- Includes an earth terminal and integral lid interlocked in ON position.
- Compatible with wiring terminal type and UL, CSA, CCC approvals.
Product Description
Kraus & Naimer KG41.T204/GBA301.*KL1V 4-Pole Surface Isolator Switch is designed for industrial and electrical automation systems requiring reliable isolation and safety. It features a high-quality polycarbonate enclosure that is UV stabilized and offers IP67 and IP66 protection against dust and water ingress, making it ideal for harsh operating conditions.
This isolator switch supports a 3-phase electrical system and is rated to handle a switching current of 40 amperes with a switching power of 15 kW. The device is equipped with a yellow and red low-profile operating handle integrated with the enclosure cover for safe and easy operation.

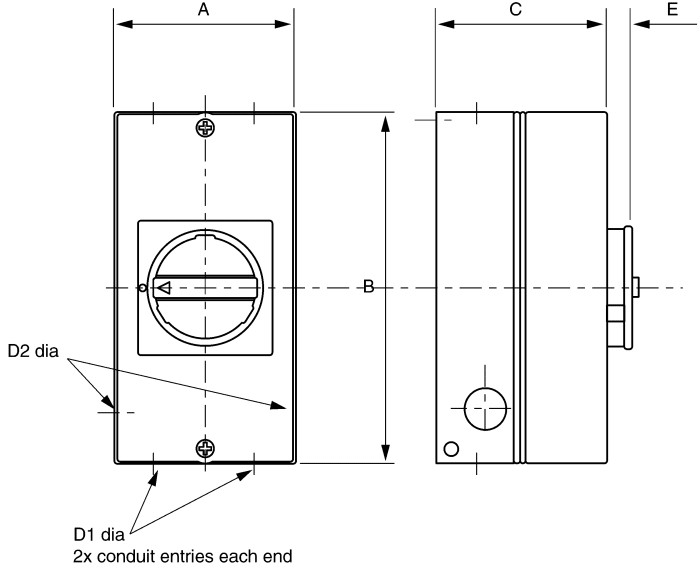

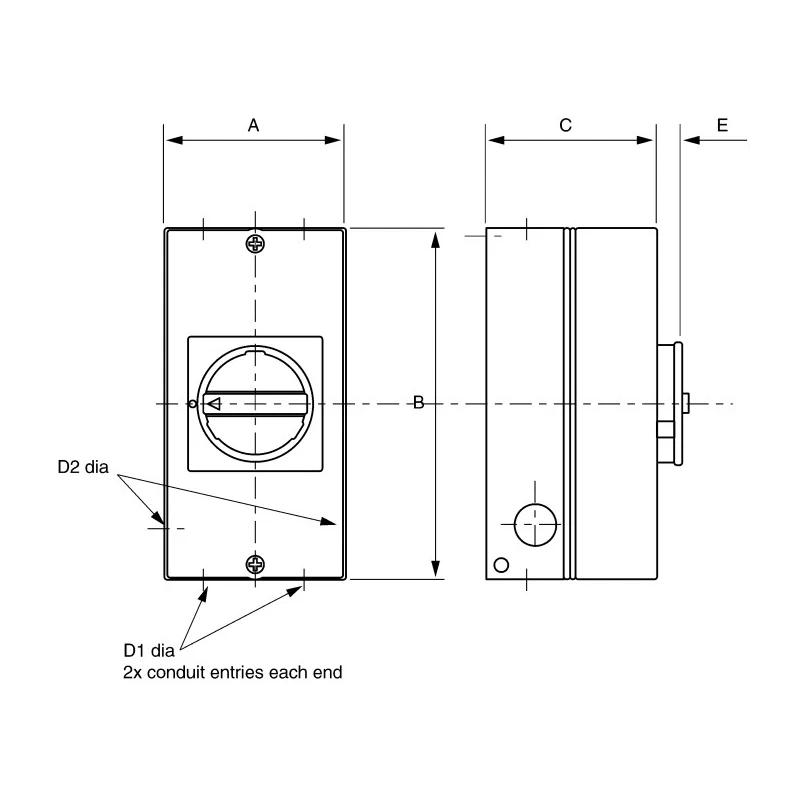

The product is surface-mounted with dimensions of 190mm length, 110mm depth, and 100mm width. It comes with an earth terminal included and a lid that is interlocked in the ON position to prevent accidental operation. The switch also allows the fitting of up to three padlocks in the OFF position to enhance safety during maintenance.
Standards compliance includes EN60947, VDE 0660, EN 60204, as well as certifications from UR, CSA, and CCC, ensuring it meets strict industrial and safety standards. The nominal switching voltage is up to 690V AC, suitable for a wide range of industrial machinery and electrical installations.
This isolator switch is suitable for applications in industrial automation, manufacturing plants, electrical distribution systems, and HVAC controls where a high degree of safety, reliability, and environmental protection is required.
Equip with a 4-pole design for secure disconnection in three-phase systems. Surface mount polycarbonate enclosure is UV stabilized with high-impact resistance. Handles switching currents of up to 40A and power ratings up to 15 kW.
Rated IP67 and IP66 for dust-tight and water ingress protection. Features a low profile yellow and red operating handle, integral with the enclosure. Includes earth terminal and provision for padlock locking in the OFF position.
Designed for industrial, manufacturing, and automation electrical control applications. Certified to EN60947, VDE 0660, EN 60204, UR, CSA, and CCC standards. Explore more Isolator Switches and electrical control devices on EnvMart for reliable and certified industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a switching current of 40A.
This isolator switch can handle a power rating of up to 15 kW.
It has an IP67 and IP66 rating, providing protection against dust and water ingress.
The switch measures 190mm in length, 110mm in depth, and 100mm in width.
It is designed for surface mounting.
The maximum operating temperature is up to 55°C.
This model supports a 3-phase electrical system.
It is certified to UR, CSA, and CCC standards, among others.
The nominal switching voltage is up to 690V AC.
Yes, it includes an earth terminal and allows for padlock locking in the OFF position to enhance safety during maintenance.
The switch features a yellow and red low-profile operating handle.
It is manufactured in Germany.
