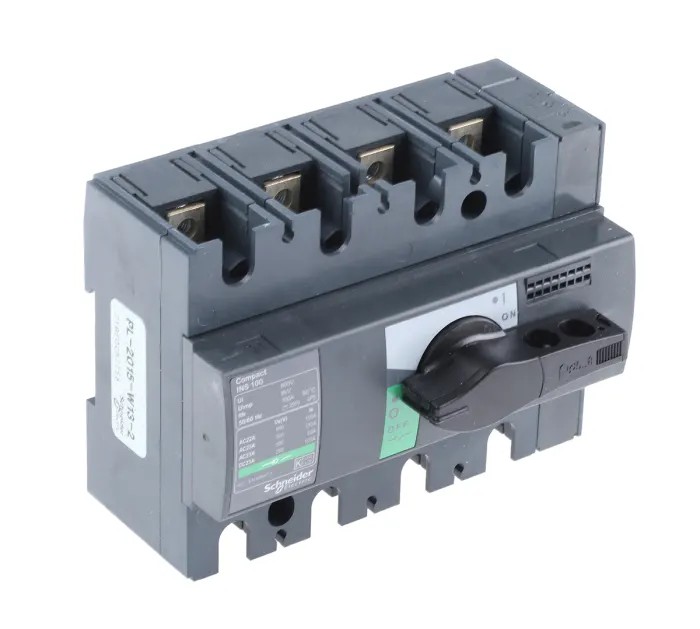

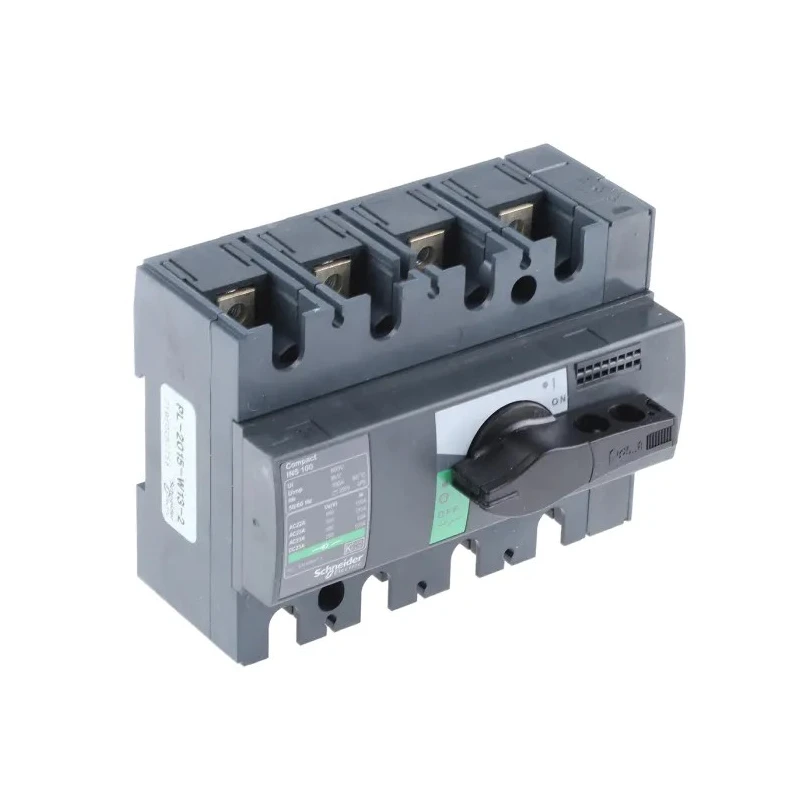

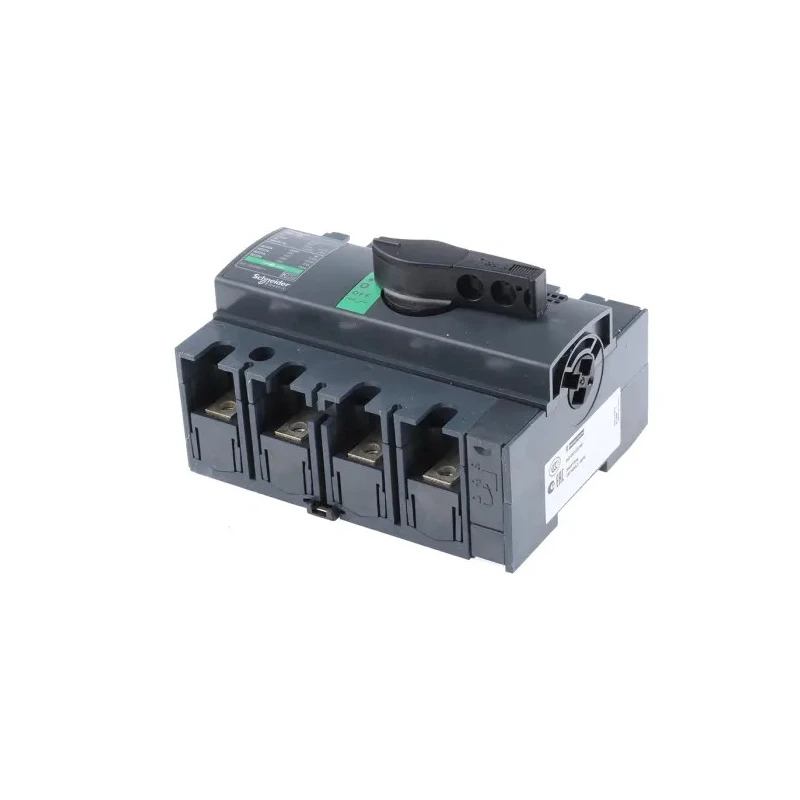

Schneider Electric 4-Pole Surface Isolator Switch 28909, IP40, 100A, 22 kW
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Schneider Electric |
| Length | 135mm |
| Model | 28909 |
| Depth | 62.5mm |
| IP Rating | IP40 |
| Width | 100mm |
| Mount Type | Surface |
| Series | ComPacT INS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Black |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, EU |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Better World Claim | Designed for Disassembly |
| Switching Power | 22kW |
| Schneider Electric, Compact MCCB 4P 100A, Breaking Capacity 50 kA, Clip-OnBrand | Schneider Electric |
Key Features
- Designed with 4 poles for three-phase electrical circuits.
- Surface mount type with black handle for easy operation.
- Rated for switching current of 100A and switching power of 22 kW.
- Complies with IEC 947-1, IEC 947-3, EN 60947-1, EN 947-3, NFC 79130, and RoHS standards.
- Supports operating temperatures from -25°C to 70°C.
- Secure screw-type terminals ensure reliable mounting.
- Lockable OFF position for up to three padlocks for safety.
- Switching voltage rated up to 240V AC and 250V DC.
Product Description
Schneider Electric 28909 4-Pole Surface Isolator Switch is engineered for precise isolation and switching of electrical distribution circuits, ideal for three-phase power applications. It features an IP40 protection rating ensuring protection against solid objects larger than 1 mm but is not fully waterproof, suitable for controlled environments.
The switch supports a switching current of 100A and switching power up to 22 kW, making it suitable for medium power industrial uses. The device comes with a robust black handle and screw-type terminals, ensuring secure and reliable connectivity.
Designed within the ComPacT INS series, this Isolator Switch complies with international standards including IEC 947-1 and 947-3, EN 60947-1, EN 947-3, and NFC 79130. It supports operating temperatures ranging from -25°C to +70°C, enabling use in diverse industrial and commercial environments.
Safety features include lockable positions allowing up to three padlocks for OFF state, enhancing operational security during maintenance. The switching voltage is rated up to 240V AC and 250V DC, accommodating a range of electrical system requirements.
Its compact dimensions - 135 mm length, 100 mm width, and 62.5 mm depth - facilitate easy installation on surface mounts such as modular distribution boards, PLC boxes, and local control cabinets for motor circuits and machine tools.
Reliable isolation with positive contact indication for enhanced electrical safety. Front or side rotating handle for flexible control. Designed for easy disassembly and sustainability under Schneider Electric's Better World initiative.
Manufactured with high-quality materials ensuring durability and compliance with RoHS directives. Ideal for industrial, manufacturing, HVAC, and commercial electrical control applications. Explore the comprehensive range of Schneider Electric electrical products on EnvMart to ensure optimal performance and reliability of your electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolator switch has a switching current rating of 100A.
It supports a maximum switching power of 22 kW.
This model has a length of 135 mm, a width of 100 mm, and a depth of 62.5 mm.
The switch has an IP40 protection rating, which protects against solid objects larger than 1 mm.
It is designed for three-phase electrical circuits.
The operating temperature range is from -25°C to +70°C.
It features screw-type terminals for secure and reliable connectivity.
Yes, it has a lockable OFF position that accommodates up to three padlocks for safety during maintenance.
It complies with IEC 947-1, IEC 947-3, EN 60947-1, EN 947-3, NFC 79130, and RoHS standards.
The switching voltage is rated up to 240V AC and 250V DC.
It is designed for surface mounting, suitable for installation on modular distribution boards and control cabinets.
The handle of this model is black, designed for easy operation.
