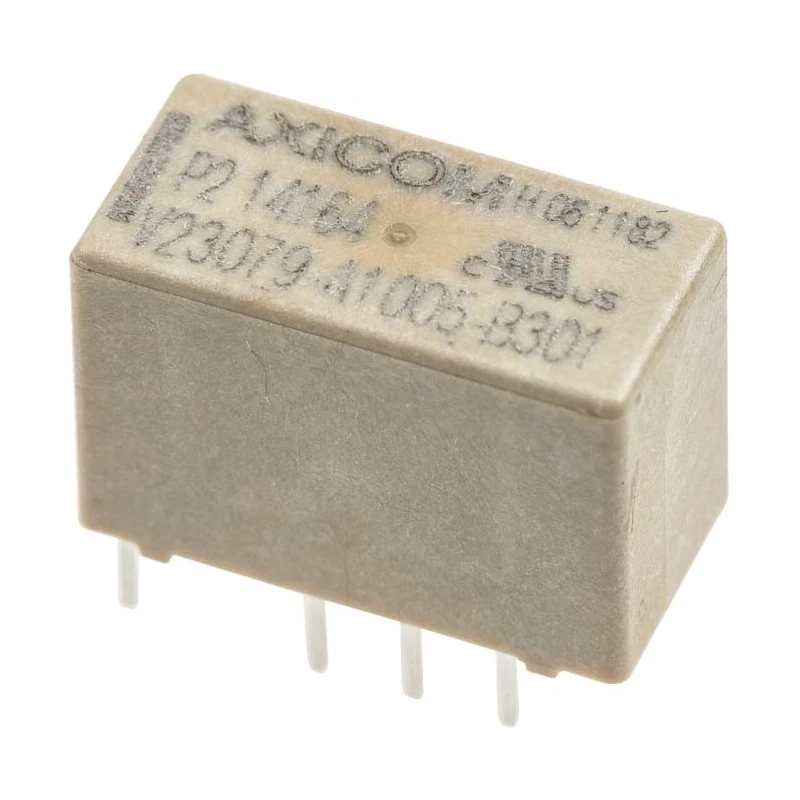

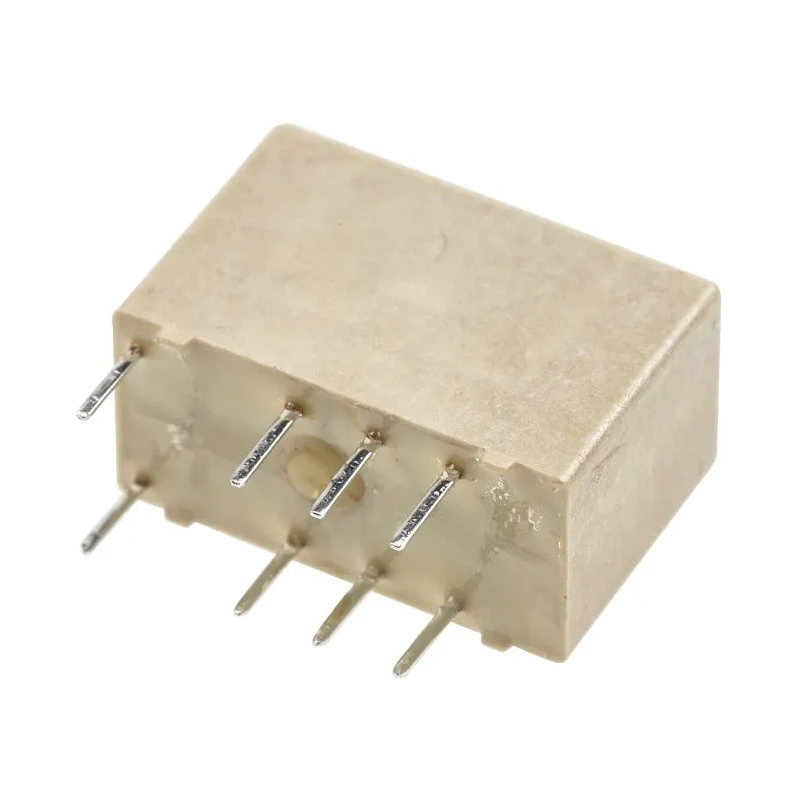

TE Connectivity PCB Signal Relay 24V dc Coil 2A DPDT Axicom P2 Series V23079A1005B301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079A1005B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
| Aratas PCB Signal Relay, 24V dc Coil, 2A, DPDTBrand | Omron |
| Panasonic PCB Signal Relay, 24V dc Coil, 2A, DPDTBrand | Panasonic |
Key Features
- The relay has a slim, low-profile design ideal for space-constrained applications.
- It uses gold plated bifurcated contacts ensuring low contact resistance and long life.
- Coil resistance is 4100Ω with a coil power of 140mW, providing high sensitivity for low power consumption.
- Operating temperature ranges from -40°C to 85°C, supporting varied industrial environments.
- It provides switching voltages of up to 250V ac and 220V dc with switching power of 140mW.
- The relay is immersion cleanable with IP67 rating and V-0 flammability classification for reliability.
- Typical applications include communications equipment, consumer electronics, office, control, medical, and automotive equipment.
Product Description
TE Connectivity V23079A1005B301 PCB Signal Relay offers a reliable solution with a 24V dc coil and a 2A switching current under a DPDT configuration. It belongs to the Axicom P2 series known for high sensitivity and low power consumption, making it ideal for telecom and Signal Relay applications.

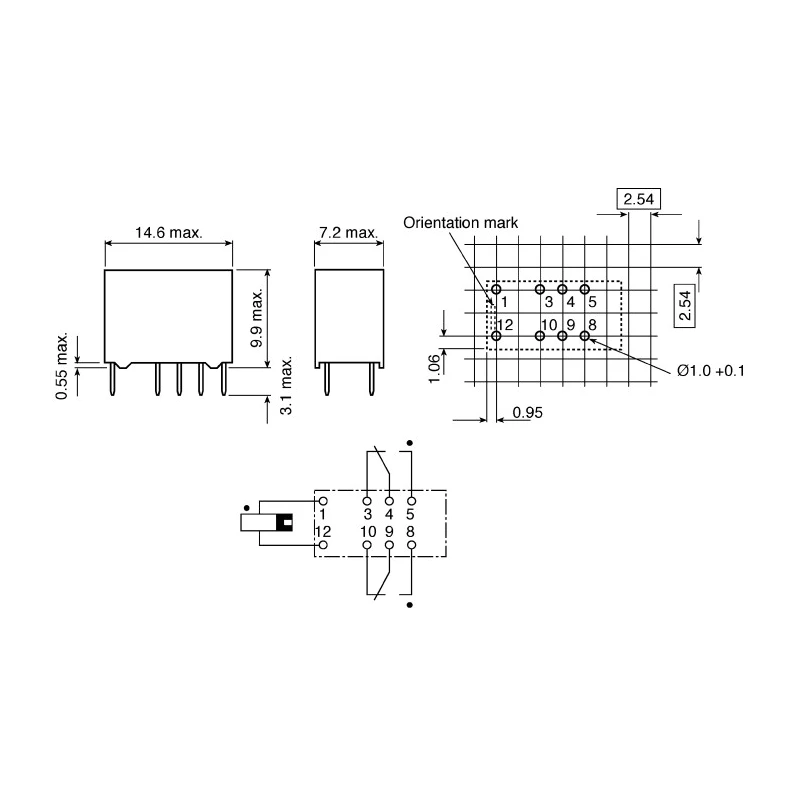

This miniature relay provides a slimline, low-profile form factor measuring approximately 14.5mm length, 7.2mm width, and 9.8mm height, allowing efficient space utilization on printed circuit boards.
The relay features gold plated bifurcated contacts to enhance conductivity and durability while ensuring minimal contact resistance. The coil resistance of 4100Ω and coil power consumption of 140mW contribute to its energy-efficient operation.
Designed for use in harsh environments, its operational temperature range spans from -40°C to 85°C, with immersion cleanable rating IP67 and V-0 flame retardancy, ensuring extended functional reliability.
The relay withstands switching voltages up to 250V ac and 220V dc, supporting switching power of 140mW. Its surge capability meets Telcordia and IEC standards, enhancing robustness against voltage spikes.
Common industrial and commercial uses include communications systems, set-top boxes, office automation, control equipment, medical devices, and automotive applications. The relay’s high sensitivity and low coil power consumption optimize energy use in telecom and signal processing circuits.
Its gold plated contacts provide enhanced reliability and extended contact life in demanding industrial environments. IP67 rated sealing permits immersion cleaning, reducing maintenance effort and risks. Compliance with RoHS standards and recognized approvals ensure environmental and safety conformity.
The compact size enables efficient PCB layout in space-critical applications.
Explore EnvMart’s extensive selection of relays and signal conditioning components to find suitable industrial-grade solutions for your automation, electronics, and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V dc.
This model has a maximum switching current of 2A.
The relay measures approximately 14.5mm in length, 7.2mm in width, and 9.8mm in height.
The operating temperature range is from -40°C to 85°C.
It uses a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 4100Ω.
This relay can switch voltages up to 250V ac and 220V dc.
Yes, this relay is immersion cleanable and has an IP67 rating.
The contacts are made of gold plated material to ensure low contact resistance and durability.
This relay complies with RoHS standards and has a V-0 flammability classification.
Typical applications include communications equipment, consumer electronics, office automation, control equipment, medical devices, and automotive applications.
This relay is designed for PCB (Printed Circuit Board) mounting.
