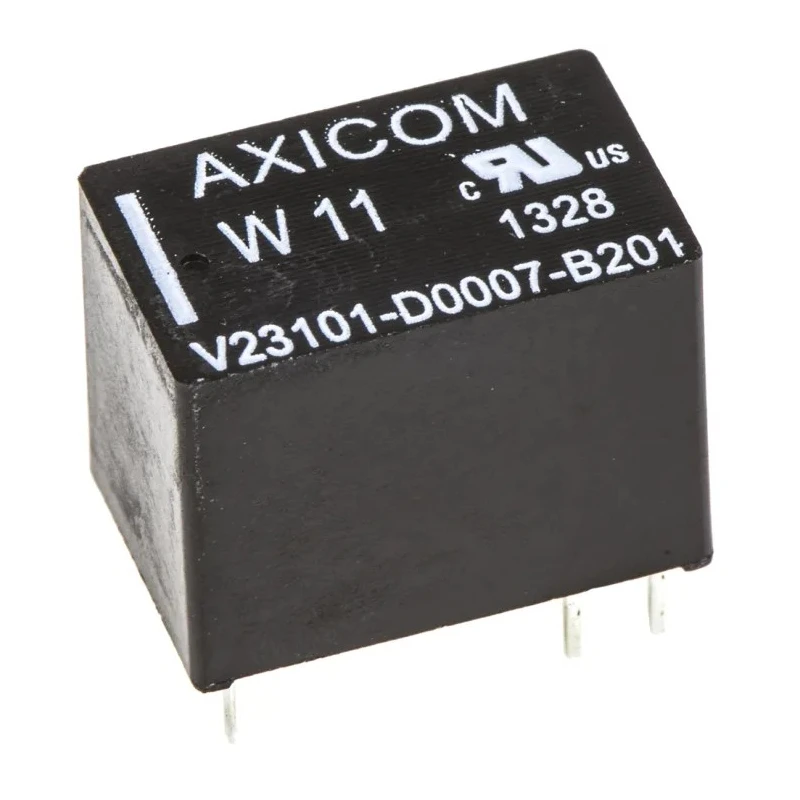

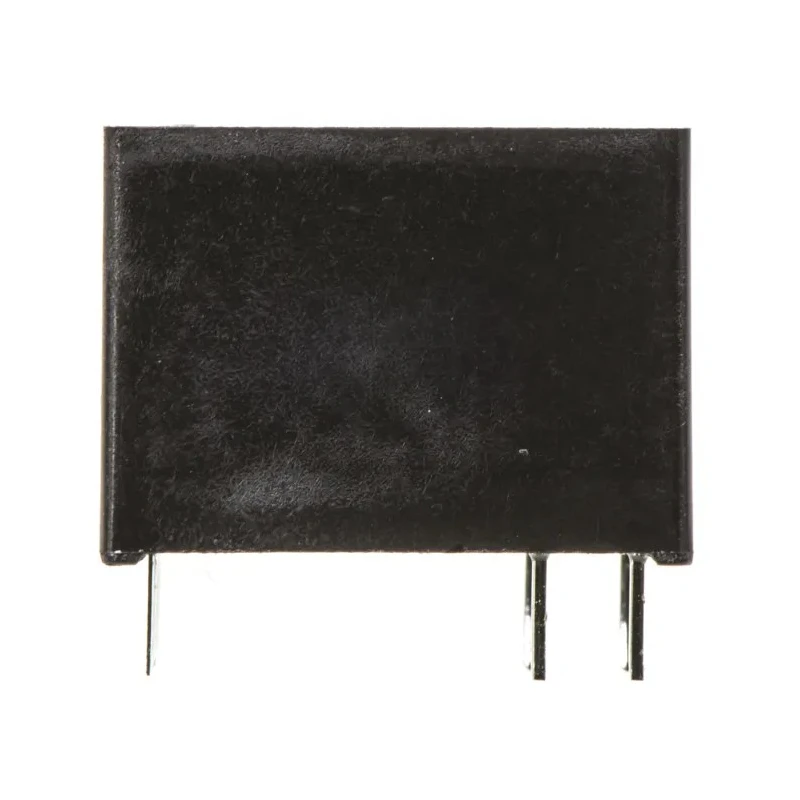

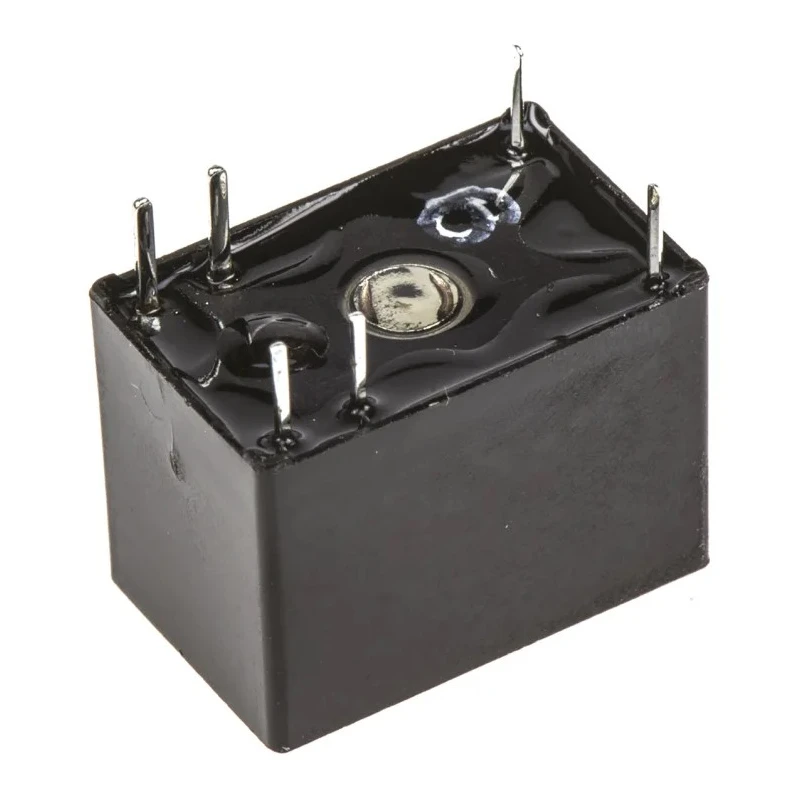

TE Connectivity PCB Signal Relay 24V DC Coil 1.25A SPST W11 Series Gold Plated Contacts V23101D7B201
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.4mm |
| Model | V23101D7B201 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | W11 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1.25A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1280Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 450mW |
| Pin Length | 3.5mm |
| Aratas PCB Signal Relay, 24V dc Coil, 2A, SPDTBrand | Omron |
| TE Connectivity PCB Signal Relay, 24V dc Coil, 1.25A, SPSTBrand | TE Connectivity |
Key Features
- Features a gold-plated AgPd contact material for enhanced conductivity and reduced wear.
- Compact dimensions of approximately 11.5mm height, 10.5mm width, and 15.5mm length suit PCB mounting.
- Rated for switching voltages of 125V AC and 120V DC with a maximum power of 62.5VA.
- Operates reliably within a temperature range of -40 to +85 degrees Celsius.
- Coil resistance is 1280 Ohms with 450mW coil power consumption ensuring efficient operation.
- Fully sealed design provides high shock and vibration resistance for industrial environments.
- Mount type is designed specifically for PCB soldering with pin length of 3.5mm.
Product Description
TE Connectivity V23101D7B201 PCB Signal Relay is a precision electrical component designed for signal switching in industrial, automation, and control applications. It features a 24V DC coil voltage and a single-pole single-throw (SPST) contact configuration capable of switching currents up to 1.25A. The relay is part of the W11 Series known for robust, fully sealed construction that ensures high shock and vibration resistance, making it suitable for demanding operational environments.
The device uses gold-plated silver-palladium (AgPd) contacts that enhance electrical conductivity and durability, ensuring reliable performance over long operational periods. Its compact footprint with dimensions around 11.5mm in height, 10.5mm in width, and 15.5mm in length allows for efficient PCB mounting and space-saving circuit design. The relay supports switching voltages of up to 125V AC and 120V DC, with a maximum switching power of 62.5VA, suitable for low power signal switching tasks.
Operating temperature ranges from -40 to +85 degrees Celsius enable use in varied industrial and manufacturing settings, including automation, HVAC controls, and electrical signalling equipment. The coil resistance of 1280 Ohms and coil power consumption of 450mW offer balanced power efficiency for control circuits. With a solder terminal type and pin length of 3.5mm, the relay is engineered for secure PCB solder connections.
Gold-plated AgPd contact material for enhanced conductivity. Compact sealed design resistant to shock and vibration. Suitable for switching up to 1.25A and 125V AC / 120V DC. Wide operating temperature range -40°C to +85°C.
PCB mount with solder-type terminals and 3.5mm pin length. Coil specifications: 24V DC, 1280Ω resistance, 450mW power consumption. Ideal for industrial, automation, electrical, and signal conditioning applications.
This TE Connectivity signal relay provides enhanced reliability and versatility for electronic designs requiring precise signal control and switching. Its construction and specification make it a trusted choice for OEMs and engineers in industrial circuitry.
Explore more components like PCB Signal Relays and electronic parts on EnvMart to support your engineering and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 1.25A.
The relay measures approximately 11.5mm in height, 10.5mm in width, and 15.5mm in length.
It operates with a coil voltage of 24V DC and has a coil power consumption of 450mW.
This relay features a single-pole single-throw (SPST) contact configuration.
The maximum switching voltage is 125V AC and 120V DC.
The coil resistance is 1280 Ohms.
It operates reliably within a temperature range of -40 to +85 degrees Celsius.
This model is designed for PCB mounting with solder-type terminals and a pin length of 3.5mm.
The relay uses gold-plated silver-palladium (AgPd) contacts for enhanced conductivity and reduced wear.
This relay complies with RoHS standards.
This relay is part of the W11 Series.
The country of origin for this relay is Germany.
