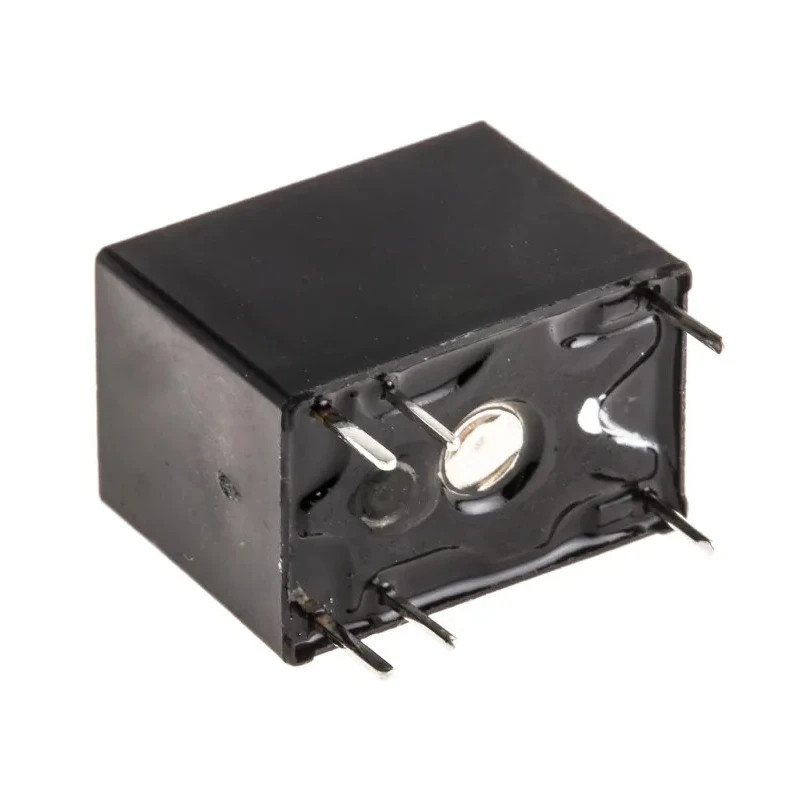

TE Connectivity PCB Signal Relay 12V DC Coil 3A SPST V23101D6A201
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.4mm |
| Model | V23101D6A201 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 450mW |
| Pin Length | 3.5mm |
| TE Connectivity PCB Signal Relay, 12V dc Coil, 3A, SPSTBrand | TE Connectivity |
Key Features
- This relay is designed for PCB mounting with solder terminals.
- It operates reliably over a temperature range from -40°C to 85°C.
- The relay offers switching voltages up to 125V AC and 120V DC.
- Coil power consumption is 450mW with a coil resistance of 320Ω.
- The compact dimensions of approximately 15.4mm length, 11.5mm height, and 10mm width make it suitable for space-constrained applications.
- Contact surfaces are gold plated to ensure excellent conductivity and reliability.
- It belongs to the W11 series, fully sealed with high shock and vibration resistance.
- Pin length is 3.5mm, supporting secure PCB connectivity.
Product Description
TE Connectivity V23101D6A201 PCB Signal Relay is engineered for efficient switching in electronic signal control circuits. Featuring a 12V DC coil and capable of switching currents up to 3A, this relay supports SPST contact configuration, making it ideal for compact printed circuit board (PCB) applications.
The relay's compact form factor, with dimensions of 15.4mm length, 11.5mm height, and 10mm width, allows integration in tight spaces. Its coil power consumption is minimal at 450mW, with a coil resistance of 320Ω, ensuring energy-efficient operation.
Designed to operate within a broad temperature range of -40 to 85°C, the relay withstands harsh industrial environments. The contacts are gold plated, providing excellent conductivity and durability for reliable signal switching at up to 125V AC and 120V DC voltages.
Constructed as part of the W11 series, this fully sealed relay offers high resistance against shock and vibration, enhancing longevity in demanding settings. Solder terminal mounting facilitates straightforward PCB installation, with pin lengths optimized at 3.5mm for secure electrical contact.
12V DC coil voltage for low power consumption. 3A switching current capacity for moderate signal loads. SPST contact configuration suitable for single-pole single-throw switching. Compact dimensions enable space-efficient PCB designs.
Gold plated contacts ensure reliable electrical performance. Operating temperature range between -40°C and 85°C for robust industrial use. Fully sealed design provides high shock and vibration resistance. Low coil power of 450mW to minimize energy use.
Solder terminal mount type for PCB compatibility.
This relay is widely applicable across industrial automation, electrical control systems, signal conditioning, and measurement equipment. It is an excellent choice for circuit designers requiring dependable, miniature signal relays.
Explore the broader range of Signal Relays and electronic components available at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 3A.
This model operates with a coil voltage of 12V DC.
The relay measures approximately 15.4mm in length, 11.5mm in height, and 10mm in width.
It operates reliably over a temperature range from -40°C to 85°C.
This relay features a SPST (Single Pole Single Throw) contact configuration.
The coil resistance for this relay is 320Ω.
The relay can switch voltages up to 125V AC and 120V DC.
The coil power consumption is 450mW.
The pin length is 3.5mm, designed to support secure PCB connectivity.
The contact surfaces of this relay are gold plated, ensuring excellent conductivity.
This relay is designed for PCB mounting with solder terminals.
Yes, it is RoHS compliant.
